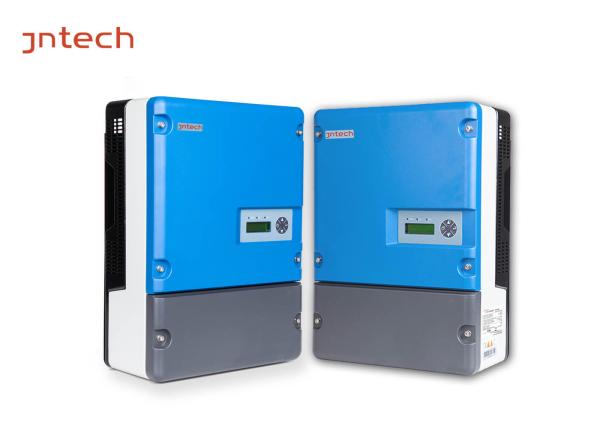

Automatic 30kw Solar pump Inverter Driver for Three Phase AC Pumps
Automatic 30kw Solar pump Inverter Driver for Three Phase AC Pumps
Specifications
Brand Name :
JNTECH
Model Number :
JNP30KH
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
3 - 30 working days
Packaging Details :
Carton
MPPT Voltage :
460 ~ 850Vdc
Output Power :
30kw
Output Voltage :
380~460Vac
Output Frequency :
0~50/60Hz
Protection :
IP65
Temperature :
-25℃~+60℃
Cooling Way :
Force Cooling
Compliance :
EN50178; IEC/EN62109-1; IEC61800
Size :
460*580*251mm
Weight :
31.5kg
Description

1. Introduction
JNTECH Solar Pumping Inverter transfers DC power to AC power to drive the pump. A microprocessor
inside inverter continuously monitors available energy levels and adjust pump speed, matching energy
required to energy available. This enables the system to operate under varying solar insolation levels,
and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT
to maximize power harvested from solar panels.

2. Product features
• New design of anodized aluminum case;
• Drive Power-matched three phase AC pump;
• With soft start can protect pump from rush current;
• Perfect system protection, high reliability;
• Built-in MPPT function for optimum solar performance;
• 3 years warranty;
• Full automatic unattended operation with perfect protection functions for long lifespan;
• Remote monitoring and communication function, with optional GPRS module;
• Complete system protection function and long lifespan;
• Water proof IP65 protection design, against rain, sand dust etc.

3. 30kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 67A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 30KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 57A
Dimension(W/H/D) 460mm*580mm*251mm
weight 31.5KG
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Force Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

4. ON-Site Projects' Pictures

Automatic 30kw Solar pump Inverter Driver for Three Phase AC Pumps
Automatic 30kw Solar pump Inverter Driver for Three Phase AC Pumps

5. Ralated products
Solar Pumping Inverter: 370W to 132kw.
Outlet Filter to protect motor.
AC Power Pack to hybrid solar input and AC input
Low frequency Solar Off Grid Inverter : 1Kva to 5Kva
