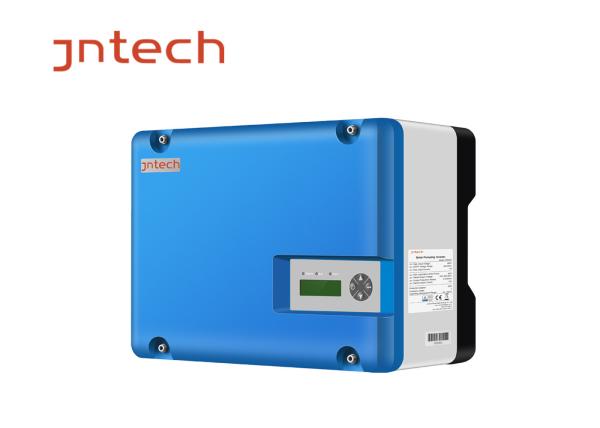

IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP4KH
Supply Ability :
1000 Sets per Month
Packaging Details :
carton
MOQ :
>=2 Pieces
Price :
Negotiable
Delivery Time :
3 - 30 working days
Output Type :
Multiple
Size :
420*310*229mm
Weight :
13.9kg
Input Voltage :
880Vdc
Output Voltage :
380-460Vac, three phase
Type :
DC/AC Inverters
Output Frequency :
0-50/60Hz
Output Current :
10A
Quality :
CE/TUV Certificate
Port :
FOB shanghai
Description

solar pump inverter 4kw with mppt and IP65

1. Introduction Of JNTECH 5.5HP(4kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump

motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed,

matching energy required to energy available. This enables the system to operate under varying solar insolation

levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency

MPPT algorithm to maximize power harvested from PV module.

IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt
2. Product features:

1. Grid utility work when sun radiation is unavailable, support system working 24 h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
3. 4kw solar pump inverter parameters
Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 9A
Max. MPTT efficiency 99%
Number of Strings 1
Max. applicable motor output power 4KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 10A
Dimension(W/H/D) 420*310*229mm
weight 13.9kgs
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation
Cooling method natural cooling
Display LCD
Communication interface GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With MpptIP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt

5. Solar pumping inverter

IP65 Waterproof Three Phase Dc Ac Inverter / 4kw Solar Inverter With Mppt

6. Pump Specifications

We choose pump according to project head and water requirement. Any AC pumps can be used in this system.
