TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation
TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation
TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation
TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP90KH
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard Export Packing
MOQ :
>=1 Sets
Price :
Negotiable
Delivery Time :
3 - 30 working days
Output Type :
TRIPLE
Input Voltage :
460~850Vdc
Output Voltage :
380~460Vac
Type :
DC/AC Inverters
Output Frequency :
0~50/60Hz
Output Current :
171A
Size :
654mm*1210mm*465mm
Weight :
220KG
Warranty :
3 Years
Protection Level :
IP21
Certificate :
ISO9001/14001/CE/TUV
MPPT Efficiency :
99%
Operating Temperature :
-25℃~+60℃
Display :
LCD
Max Efficiency :
98%
Communication :
RS485/GPRS
Port :
Port Shanghai, Port Ningbo
Description

solar pump inverter three phase dc to ac solar water inverter for banana farm irrigation

1. Simple Introduction Of JNTECH Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.

The power drawn from AC source is adjustable according to the intensity of solar energy.

TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation

2. Product features:

1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
9. ROI is only less than 2 years compared to diesel generator.
10. Wide application with all kinds of PV modules and traditional AC pump.

3. 90kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 205A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 90KW
Rated output voltage 380-460Vac; 3 phase
Output frequency range 0-50/60Hz
Rated output current 171A
Dimension(W/H/D) 460mm*580mm*251mm
weight 220KG
Max. efficiency 98%
Protective class I
Protection degree IP21
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Force cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800
4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm IrrigationTRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)

Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start

5. Pump Specifications

We choose pump according to project head and water requirement.

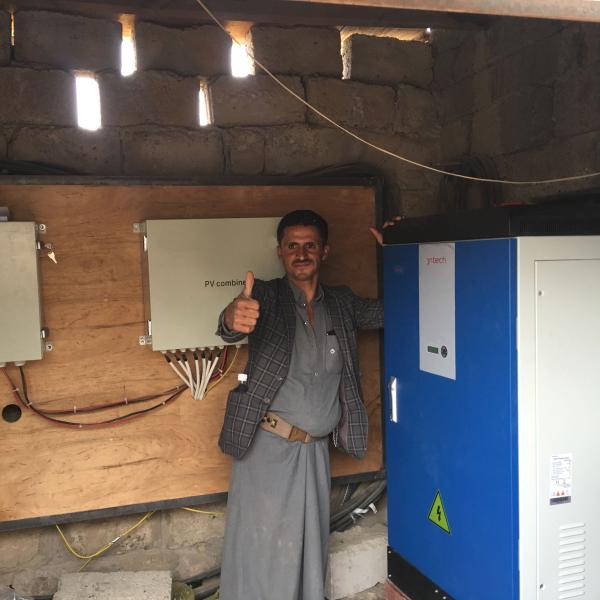

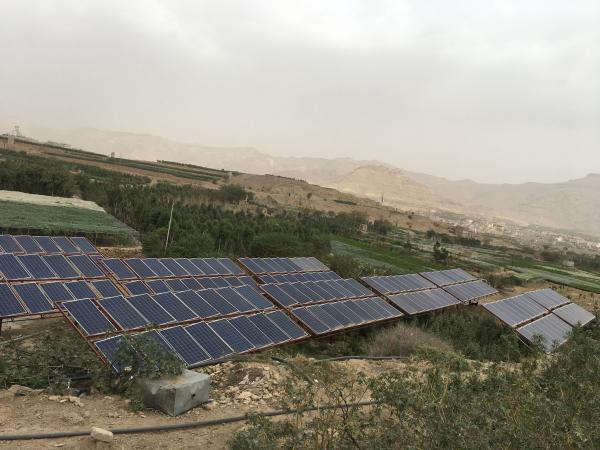

6. ON-Site Projects' Pictures

TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation

TRIPLE Output 3 Phase Solar Pump Inverter For Banana Farm Irrigation
