1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP1K5L-SJ
Supply Ability :
600 Set/Sets per Month
Packaging Details :
Standard export carton packing with wooden-pallet
MOQ :
4000 Watt/Watts
Price :
$0.80 - $1.50 / Watts
Certification :
TUV CE
Specification :
Normal
Application :
Commercial
Output Voltage (V) :
220V
Load Power (W) :
1.5kW
Work Time (h) :
8hours
Solar Panel Type :
Grade A Polycrystalline
Controller Type :
DC/AC
Output Frequency :
50Hz
Solar panel :
3000W
Water pump :
1.5kw 220Vac pump
solar pump inverter :
1.5kw
Display :
LCD
Warranty :
10 years for PV module, 3 years for inverter
Port :
Shanghai port, Ningbo port, Nanjing port
Description

Jntech 1.5kW MPPT Solar Water Pumping System for Zoo drinking water in South Africa

1. Solar Water Pumping System Introduction

solar pumping system consists of four parts: solar panels, solar pumping inverter, three phase AC pump and water storage device. The solar pumping inverter converts DC power produced by solar panel to AC power which drives AC pump to pump water from borehole, river, lake etc. to the storage device.

The inverter applies high efficiency MPPT algorithm to maximize power harvested from solar panels.It will make the system to maximize efficiency to get the water as much as possible.The solar pumping system fulfills concept of low carbon,energy conservation,environmental protection to improve the living standard in water-deficient area.

1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water

2.Solar pump application

1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water

3. solar pump system feature

  • Reliable solution provider in non-electricuty and water deficient area.
  • Wide application with all kinds of PV modules and three-phase AC pumps
  • IP65 for outdoors application
  • Max. operation temperature 60℃
  • GPRS remote monitoring for real time operation status and control on/off
  • Excellent performance during cloudy weather with 5% more water output compared to competitors
  • ROI is only less than 2 years compared to diesel generator
  • Full automatic unattended operation with perfect protection functions for long lifespan 25 years
  • 3 years warranty time for complete system, 10 years for PV modules

4. Solar panels

Polycrystalline 330w(Vmp=38.1 V, Isc=9.14A) solar panels are used in system configuration

1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water

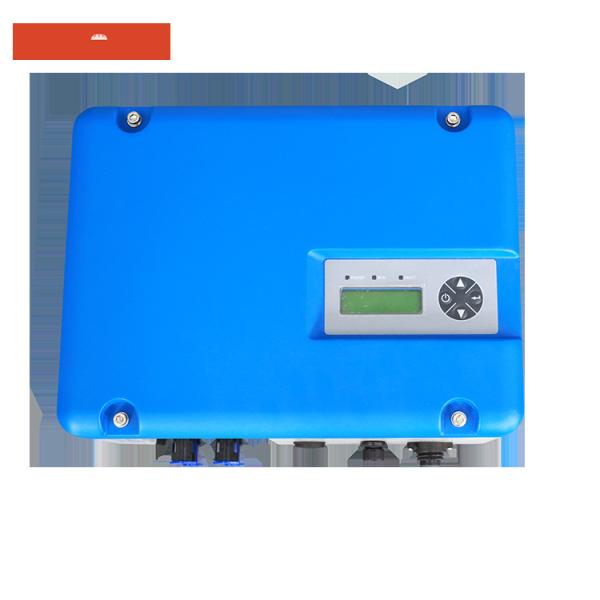

5. Solar pumping inverter

d.c. Max. Input Voltage

440Vdc

Recommended MPPT Voltage

150~400Vdc

d.c. Max. Input Current

10A

Max. Motor Output Power

1.5kW

Rated Output Voltage

220 ~240 Vac

Output Frequency

0~50/60Hz

Rated Output Current

7A

6. Pump Specifications

We choose pump according tp project head and water requirement.

1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water

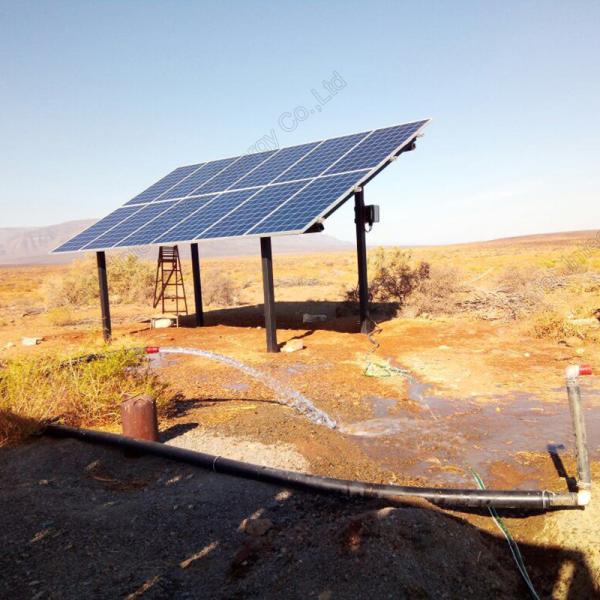

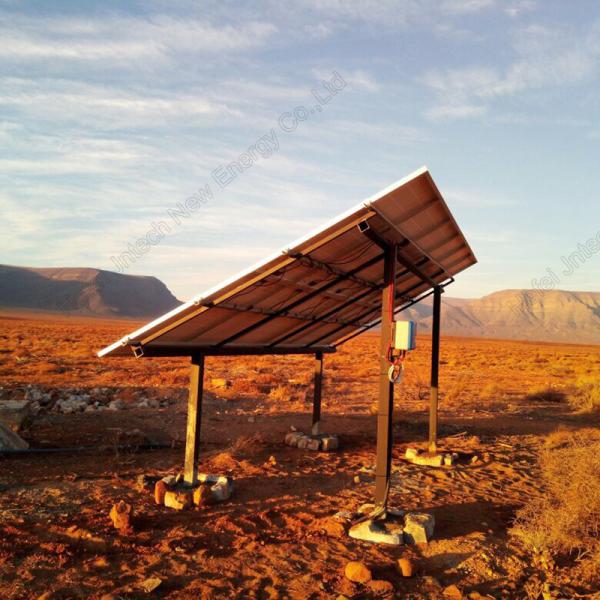

7. Project on-site

1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water1.5kW MPPT Solar Pv Pumping System Solar Energy Pump Sets For Zoo Drinking Water

8.Packing & Shipping

By sea Delivery from Shanghai or Ningbo or Nanjing seaport
By air Departure from Shanghai Pudong Airport
By express By TNT/DHL/FedEx
