Specifications
Brand Name :
JNTECH
Model Number :
JNP30KH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
200+pcs+per week
Delivery Time :
1-5days
Packaging Details :
carton pallet
MPPT :
460-850Vdc
Protection Level :
IP65
Frequency :
0-50/60HZ
Warranty :
3 years
Max.Efficiency :
98%
Cooling way :
Force cooling
Description
JNTECH 30KW Inverter 40HP Solar Inverter IP65 MPPT Max.Efficiency 98% Communication RS485/GPRS

1. JNTECH 40HP(30kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.
Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.
30KW 40HP 3 Phase Solar Pump Inverter / Vfd Solar Inverter Unattended Operation
2. Product features:
1. Grid utility work when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;
3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. 3 years warranty.
6. IP65 design for machine, don't need extra box.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.

3. 40HP 30kw solar pump inverter parameters
Max. Input DC voltage
880Vdc
Recommended MPPT voltage
460-850Vdc
Max. Input DC current
67A
Max. MPTT efficiency
99%
Number of Strings
3
Max. applicable motor output power
30KW
Rated output voltage
380-460Vac 3 phase
Output frequency range
0-50/60Hz
Rated output current
57A
Dimension(W/H/D)
360*500*176mm
weight
31.5 kgs
Max. efficiency
98%
Protective class
I
Protection degree
IP65
Environment temperature
-25ºC-+60ºC above 60ºC need derate operation
Cooling method
Force cooling
Display
LCD
Communication interface
GPRS/RS485
Altitude
3000m; above 3000m need derate operating
Noise emission
<50dB
compliance
EN 50178; IEC/EN 62109-1; IEC61800

4. Solar panels
Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
30KW 40HP 3 Phase Solar Pump Inverter / Vfd Solar Inverter Unattended Operation
Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start
5. Pump Specifications
We choose pump according to project head and water requirement.

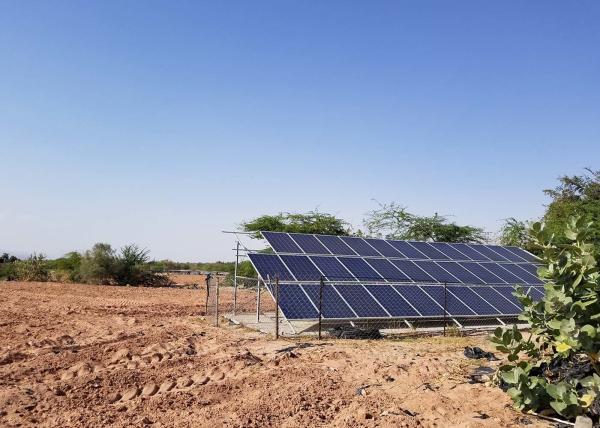

6. ON-Site Projects' Pictures
30KW 40HP 3 Phase Solar Pump Inverter / Vfd Solar Inverter Unattended Operation
