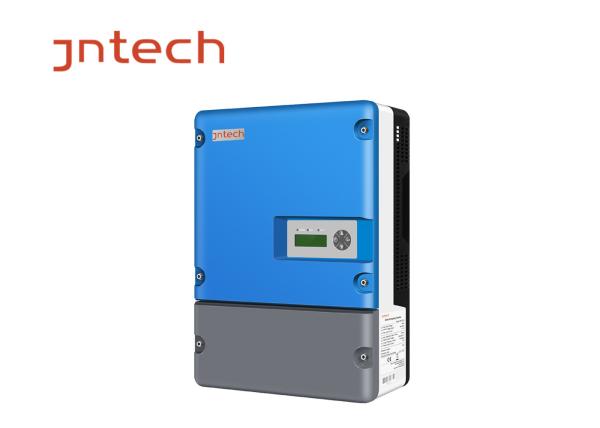

22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
Specifications
Brand Name :
JNTECH
Model Number :
JNP22KH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
could be discussed
Payment Terms :
T/T
Supply Ability :
200+pcs+per week
Delivery Time :
1-5days
Packaging Details :
carton
Warranty :
3 years
Protection Level :
IP65
MPPT Voltage :
460-850Vdc
Frequency :
0-50/60HZ
Rated Output Current :
42A
Weight :
31.5KG
Description

JNTECH 22kw 30HP Solar Pump Inverter IP65 MPPT 0-50/60HZ Easy Installation

1.JNTECH 30HP(22kw) Solar Water Pumping System
JNTECH Solar Inverter converts DC power produced by solar module into AC required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

At the same time, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, could make system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.


22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH

2. Product features:

1. Soft start controlling in rush current, to avoid motor burning;
2. Grid utility work when sun radiation is unavailable, support system working 24 h/day;

3. Full automatic unattended operation;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. Complete system protection function and long lifespan.
6. IP65 design for machine, don't need extra box.
7. Remote monitoring and communication function, can control its start and stop remotely.
8. 3 years warranty for solar pump inverter.

3.22kw solar pump inverter parameters

Max. Input DC voltage880Vdc
Recommended MPPT voltage460-850Vdc
Max. Input DC current49A
Max. MPTT efficiency99%
Number of Strings1
Max. applicable motor output power22kw
Rated output voltage380-460Vac 3 phase
Output frequency range0-50/60Hz
Rated output current42A
Dimension(W/H/D)460*580*251mm
weight31.5kgs
Max. efficiency98%
Protective classI
Protection degreeIP65
Environment temperature-25ºC--+60ºC above 60ºC need derate operation
Cooling methodForce cooling
DisplayLCD
Communication interfaceGPRS/RS485
Altitude3000m; above 3000m need derate operating
Noise emission<50dB
complianceEN 50178; IEC/EN 62109-1; IEC61800


4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)
Or small cells 100w start

5. Solar pumping inverter

The following is our inverter,please kindly go through.

6. Pump Specifications

We choose pump according to project head and water flow requirement.

7. ON-Site Projects' Pictures
22kw 30HP 3 Phase Solar Pump Inverter 0-50/60HZ Easy Installation JNP22KH
