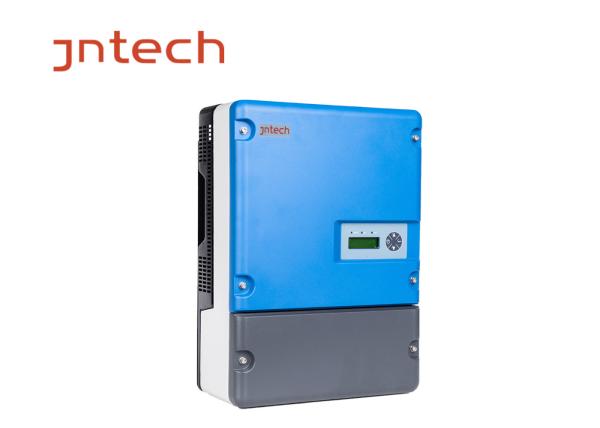

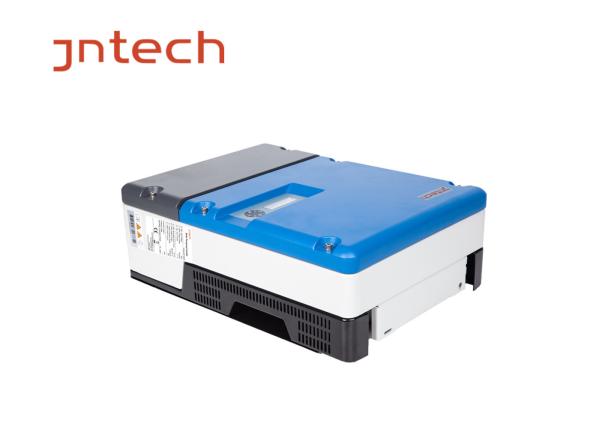

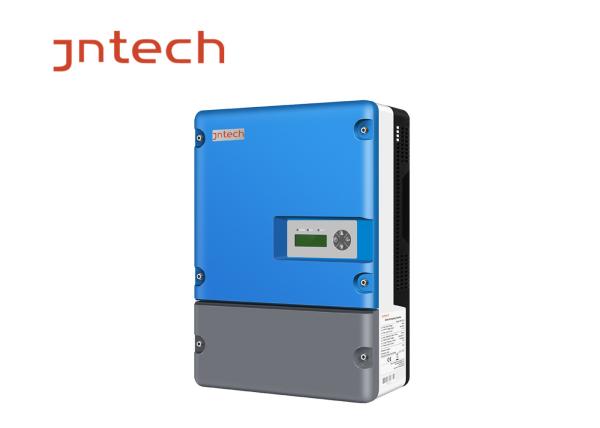

3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
Specifications
Brand Name :
JNTECH
Model Number :
JNP15KH
Certification :
CE
Place of Origin :
CHINA
MOQ :
1
Price :
could be discussed
Payment Terms :
T/T
Delivery Time :
7-30days
Supply Ability :
200+pcs+per week
Packaging Details :
carton pallet
Warranty :
3 years
Protection Class :
IP65
Cooling way :
Natural cooling
Display :
LCD
Communication :
RS485/GPRS
Description

3 Phase Solar Pump Inverter 20HP/15kw MPPT Inverter IP65 Max. MPPT Efficiency 99% Number of String 3

1. Introduction Of JNTECH 20HP(15kw) Solar Water Pumping System


Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.

The power drawn from AC source is adjustable according to the intensity of solar energy.

3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%

2. Product features:

1. Full automatic unattended operation;

2. Soft start controlling in rush current, to avoid motor burning;
3. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
4. IP65 design for machine, don't need extra box.
5. 3 years warranty for solar pump inverter.
6. Complete system protection function and long lifespan.
7. Remote monitoring and communication function, can control its start and stop remotely.

3. 15kw solar pump inverter parameters

Max. Input DC voltage 880Vdc
Recommended MPPT voltage 460-850Vdc
Max. Input DC current 33.3A
Max. MPTT efficiency 99%
Number of Strings 3
Max. applicable motor output power 15KW
Rated output voltage 380-460Vac 3 phase
Output frequency range 0-50/60Hz
Rated output current 29A
Dimension(W/H/D) 360*500*176mm
weight 19.9kgs
Max. efficiency 98%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC above 60ºC need derate operation;
Cooling method Force cooling
Display LCD
Communication interface GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN 50178; IEC/EN 62109-1; IEC61800

4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)

Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start

3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%

5. Solar pumping inverter

3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%

6. Pump Specifications

We choose pump according to project head and water requirement.

7. ON-Site Projects' Pictures

3 Strings 3 Phase Solar Pump Inverter 20HP/15kw MPPT Efficiency 99%
