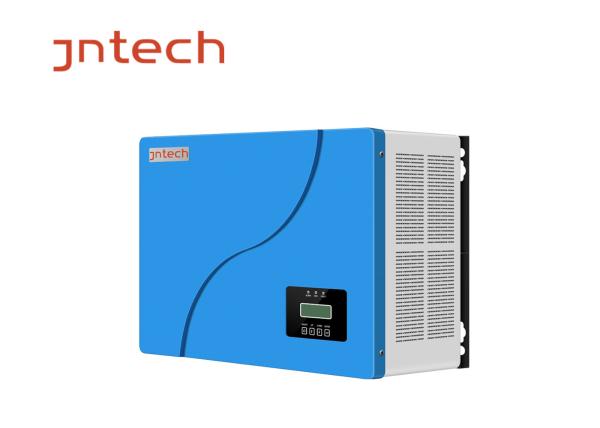

1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
Specifications
Brand Name :
JNTECH
Model Number :
JNF1KLF/24V
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Battery Voltage :
24Vdc
Protection Level :
IP21
Operate Temperature :
-20℃~+50℃
Storage Temperature :
-25℃~+70℃
Standby Loss :
≤10W
Warranty :
1.5 years
Description

Jntech Pure Sine Wave Inverter ,MPPT,1KVA solar off grid inverter Operating Temp. -20℃~+50℃

1. Introduction


Combing functions of inverter, AC charger, solar MPPT charge controller and AC by-pass to offer uninterrupted power support with portable size. The comprehensive LCD display offers user-configurable and easy accessible button operation.


1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection

1KVA Pure Sine Wave Solar Inverter , Grid Connected Solar Inverter IP21 Protection
2. System features:

Safety:

Overload and short circuit protetion;

Auto restart while AC is recovering;

Compatible to mains voltage or generator power.


3. 1KVA solar off-grid inverter with hybrid controller parameters

PV Input
Max. PV array input voltage 150Vdc
Recommended PV array power 1500W
MPPT voltage range 35-145Vdc
Battery
Rated voltage 24Vdc
Rated charge current 40A
Efficiency ≥96%
Type Gel/Lithium
Inverter Output
Rated output capacitor 1000VA
Rated output power 800W
Output voltage 230Vac(±5%)
Rated frequency 50/60Hz(±3%)
Standby loss ≤10W
Max. efficiency 90%~93%
Total harmonic distortion (THD) <3%
Rated current 4.5A
Current peak factor 3:1
Overload

125% @rated power, 70s; 150% @rated power, 30s;

200% @rated power, 5s; 300% @rated power, 10ms
AC Input
AC input charge voltage 160~270Vac
AC input frequency 50/60Hz(±3%)
Max. charge current 20A
Grid by-pass
Switching time <20ms
Mechanical data
Dimension 485mm*365mm*235mm
Weight 17kg
Other parameters
Protection level IP21
Audible noice <60dB
Cooling method Force cooling
Operate temperature -20℃~+50℃
Storage temperature -25℃~+70℃
Status indicator LCD+LED
Interface RS485(optional)
Elevation 2000m (>2000m derting operate)
