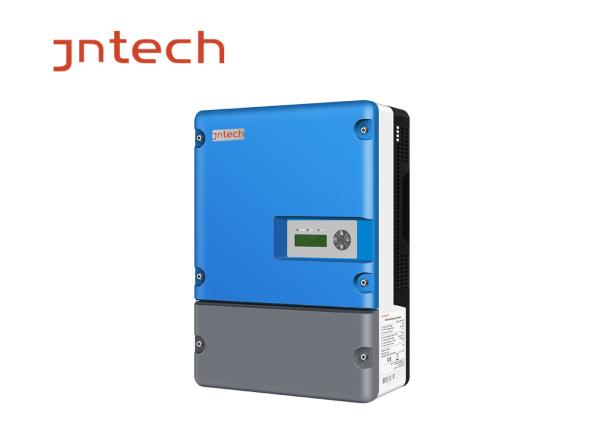

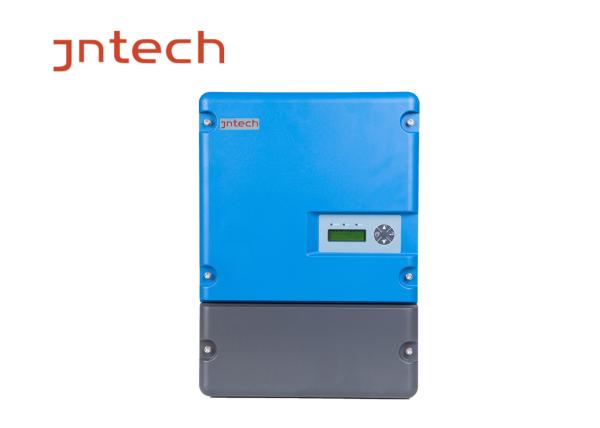

Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
Specifications
Place of Origin :
China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP37KH
Supply Ability :
600 Set/Sets per Month
Packaging Details :
inner package PE bag Outer packing Carton ,Pallet
MOQ :
>=1 Sets
Price :
$3,105.00
Voltage :
380Vac/460Vac
Power :
37KW
Material :
aluminium alloy
Application :
Solar pump irrigation system
Port :
shanghai
Description

1. Simple Introduction Of JNTECH 10HP(7.5kw) Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.
The power drawn from AC source is adjustable according to the intensity of solar energy.


Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH
2. Product features:

1. Grid utility work when sun radiation is unavailable, support system working 24 h/day;
2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.

3. 4kw solar pump inverter parameters

Max. Input DC voltage880Vdc
Recommended MPPT voltage460-850Vdc
Max. Input DC current16.3A
Max. MPTT efficiency99%
Number of Strings1
Max. applicable motor output power7.5KW
Rated output voltage380-460Vac 3 phase
Output frequency range0-50/60Hz
Rated output current18A
Dimension(W/H/D)420*310*229mm
weight13.9kgs
Max. efficiency98%
Protective classI
Protection degreeIP65
Environment temperature-25ºC-+60ºC above 60ºC need derate operation
Cooling methodNatural cooling
Display LCD
Communication interfaceGPRS
Altitude 3000m; above 3000m need derate operating
Noise emission<50dB
complianceEN 50178; IEC/EN 62109-1; IEC61800


4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KHAluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH


Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)
Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start

5. Solar pumping inverter
Aluminium Alloy JNTECH Solar Pump Controller 380Vac/460Vac Voltage JNP37KH


6. Pump Specifications
We choose pump according to project head and water requirement.
