2.2kw Single Phase Solar Pump Controller Built In DC Switch / Enough MC4 Connectors
2.2kw Single Phase Solar Pump Controller Built In DC Switch / Enough MC4 Connectors
Specifications
Brand Name :
JNTECH
Model Number :
JNP2K2LS
Certification :
CE
Place of Origin :
China
MOQ :
2
Price :
Negotation
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per month
Delivery Time :
5-8 work days
Packaging Details :
Carton
Protection :
IP65
Output Frequency :
0~50/60Hz
Output Voltage :
220/230/240Vac
Temperature :
-25℃~+60℃
Grid Input :
Include(manual switch; external)
Color :
Blue
Description

Jntech 2.2kw Single Phase Solar Pump Inverter , Built In DC Switch , Enough MC4 Connectors

1. Simple Introduction
JNTECH Solar Pumping Inverter converts DC power produced by solar panels into AC power required by the pump. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from solar panels.

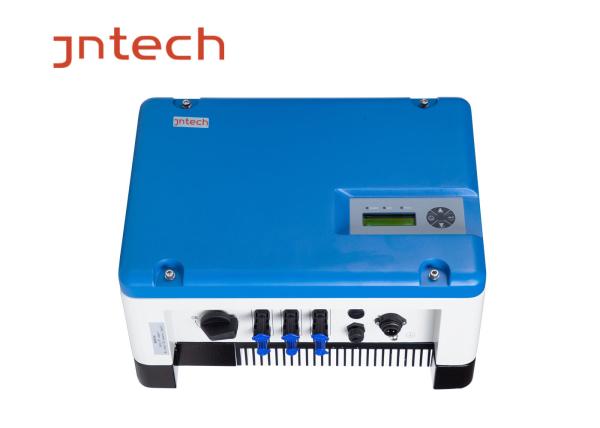

2.2kw Single Phase Solar Pump Controller Built In DC Switch / Enough MC4 Connectors

2. Product features:

1. 1:1 match with single phase AC pumps with strong overload capacity;
2. Solar power tracking efficiency can reach 98% with MPPT algorithm;

3. Adopt advanced IGBT power module;
4. High flow system for faster tank fill and perfect water output;
5. Can handle ambient temperature from -25℃ to +60℃;
6. Soft start and soft stop design, can protect pump from rush current;
7. High efficiency, low noise, fanless design, long system lifespan, safe and reliable;
8. Automatic start and shut off according to solar intensity;
9. Reduce solar panels configuration and save costs with low solar operating voltage;
10. Modular design, easy to install, operate and maintain.


3. 2.2kw single phase solar pump inverter parameters

Max. Input DC voltage 440Vdc
Recommended MPPT voltage 150-400Vdc
Max. MPTT efficiency >99%
Number of Strings 2
Max. applicable motor output power 2.2KW
Rated output voltage 220/230/240Vac; single phase
Output frequency range 0-50/60Hz
Rated output current 15A
Dimension(W/H/D) 420mm*310mm*211mm
weight 14.5KG
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Natural Cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800


4. ON-Site Projects' Pictures

2.2kw Single Phase Solar Pump Controller Built In DC Switch / Enough MC4 Connectors

2.2kw Single Phase Solar Pump Controller Built In DC Switch / Enough MC4 Connectors
