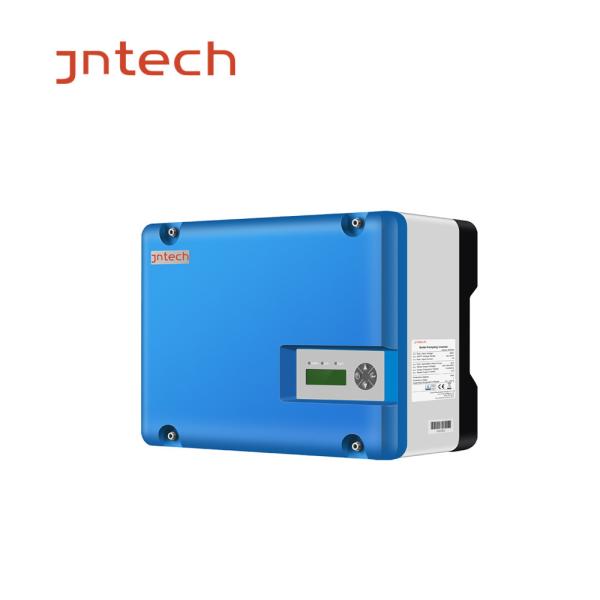

JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller
Specifications
Place of Origin :
Anhui, China (Mainland)
Brand Name :
JNTECH
Model Number :
JNP1K5LS
Supply Ability :
1000 Set/Sets per Month
Packaging Details :
Standard Export Packing
MOQ :
>=2 Sets
Price :
$458.00
Output Type :
Single
Input Voltage :
150~400Vdc
Output Voltage :
220/230/240Vac
Type :
DC/AC Inverters
Output Frequency :
0~50/60Hz
Output Current :
11A
Size :
350mm*278mm*179mm
Weight :
9.5KG
Warranty :
3 Years
Protection Level :
IP65
Certificate :
ISO9001/14001/CE/TUV
Operating Temperature :
-25℃~+60℃
Display :
LCD
Communication :
RS485/GPRS
Port :
Port Shanghai, Port Ningbo
Description

1. Simple Introduction Of JNTECH Solar Water Pumping System
JNTECH Solar Pumping Inverter converts DC power produced by PV module into AC power required by the pump motor. A microprocessor inside inverter continuously monitors available energy levels and adjust pump speed, matching energy required to energy available. This enables the system to operate under varying solar insolation levels, and provide water throughout the day and through different seasons. The inverter untilize a high efficiency MPPT algorithm to maximize power harvested from PV module.

Meanwhile, the application of AC PowerPack add grid utility/DG as power supplement or backup for solar energy, can keep pumping system working 24 hours a day.

The power drawn from AC source is adjustable according to the intensity of solar energy.

JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller

2. Product features:

1. Grid utility work as supplement when sun radiation is unavailable, support system working 24 h/day;

2. Full automatic unattended operation;

3. Soft start controlling in rush current, to avoid motor burning;
4. Max. Power Point Tracking (MPPT) control algorithm of Solar Pump Inverter for optimum solar performance.
5. IP65 design for machine, don't need extra box.
6. 3 years warranty for solar pump inverter.
7. Complete system protection function and long lifespan.
8. Remote monitoring and communication function, can control its start and stop remotely.
9. ROI is only less than 2 years compared to diesel generator.
10. Wide application with all kinds of PV modules and traditional AC pump.


3. 1.5kw solar pump inverter parameters

Max. Input DC voltage 440Vdc
Recommended MPPT voltage 150-400Vdc
Max. Input DC current 15A
Max. MPTT efficiency 99%
Number of Strings 2
Max. applicable motor output power 1.5kW
Rated output voltage 220/230/240Vac; single phase
Output frequency range 0-50/60Hz
Rated output current 11A
Dimension(W/H/D) 350mm*278mm*179mm
weight 9.5KG
Max. efficiency 97%
Protective class I
Protection degree IP65
Environment temperature -25ºC-+60ºC; above 60ºC need derate operation
Cooling method Nature cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission <50dB
compliance EN50178; IEC/EN62109-1; IEC61800

4. Solar panels

Polycrystalline / Mono 100W to 330W solar panels are used in system configuration

JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump ControllerJNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller

Poly panels: 255w,260w,265w,270w,280w,285w,305w,310w,315w,320w,325w(60cells or 72cells)

Mono panels: 270w,275w,280w,285w,290w,320w,325w,330w,335w,340w(60cells or 72cells)

Or small cells 100w start

5. Pump Specifications

We choose pump according to project head and water requirement.

6. ON-Site Projects' Pictures

JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller

Company information

JNTECH 1.5 KW Solar Pump Inverter , IP65 Single Phase Pump Controller

JNTECH is pioneer of offering “Solar Energy Storage System technology for residential use”, expanded solar industry development mode. Company also be in charge of drafting national industrial standards of solar pump inverter/system, solar sprinkling/drip irrigation system, residential solar system and etc.

JNTECH developed solar off-grid inverter, solar pump inverter, solar floating platform and relative solar products all have passed national or international certification, already have been widely used in more than 60 countries worldwide.

Focusing on renewable energy application’s high-tech technology, JNTECH RENEWABLE ENERGY CO.,LTD is one international enterprise, which integrate intelligent power electronics products’ R&D, manufacture, sales and service. Successively set up branch/subsidiary office in Pakistan, Kenya, Sudan, Dubai, Philipine, Morocco,and Mexico.

Company possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.

Adhering to the idea of“Create green energy future, Ensure the sustainable social development”, JNTECH takes scientific development view as guideline; Creating green eco-friendly new energy as duty, devoting to promoting the new energy industry development in the world. With non-stop innovation, JNTECH keep serving society, people and the national strategic goal of sustainable development.
