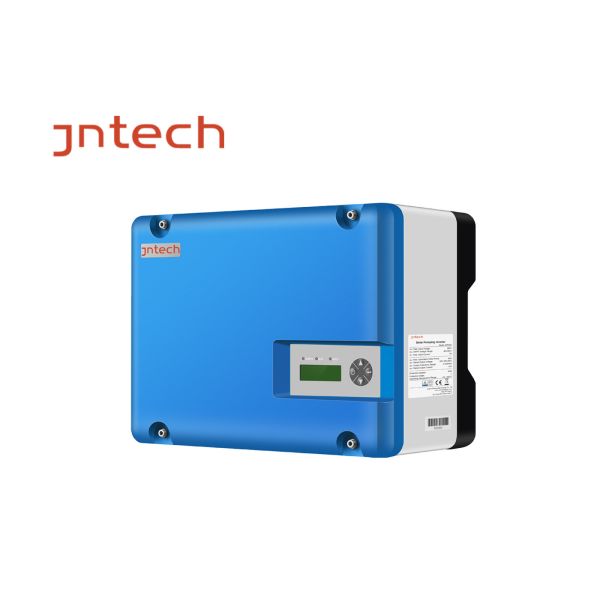

Nature Cooling Single Phase Solar Pump Inverter With MPPT EN 50178 Compliance
Nature Cooling Single Phase Solar Pump Inverter With MPPT EN 50178 Compliance
Specifications
Brand Name :
JNTECH
Model Number :
JNP750LS-V1
Certification :
CE, TUV
Place of Origin :
China
MOQ :
1 Set
Price :
Price negotiable
Payment Terms :
L/C, T/T
Supply Ability :
1000 sets per Month
Delivery Time :
Withing 3 working days to 30 working days after order confirmation
Packaging Details :
Inner Package: Plastic film, Pearl cotton plastic packing; Outer Package: Carton, Pallet.
MPPT Range :
110 - 400Vdc
MPPT Efficiency :
>99%
Max Applicable Motor Power :
0.75KW
Rated Output Voltage :
Single Phase 220/230/240Vac
Output Frequency Range :
0-50/60HZ
Max. Output Current :
6A
Protection Level :
IP65
Operating Temperature :
-25~60℃(above 60℃ need derate operating)
Cooling Way :
Nature Cooling
Warranty :
3 Years
Compliance :
EN 50178; IEC/EN 62109-1
Description

Nature Cooling Single Phase Solar Pump Inverter with MPPT
1, Inverter Features:
1:1 match with single phase AC pumps with strong overload capacity;
Solar power tracking efficiency can reach 99% with advanced MPPT algorithm;
IP65 design, Can continuous full-load operation between -25℃ to +60℃;
Remote monitoring start and stop with RS485 & GPRS communication;
Perfect protection system: undervoltage protection, overload protection, overvoltage
protection, overcurrent protection, dry protection, short-circuit protection, etc.;
High efficiency, low noise, fanless design, long system lifespan, safe and reliable;
Reduce starting power and 30% more water output with advanced inverter control
algorithm;
Reduce solar panels configuration and save costs with low solar operating voltage.
2, 750W Single Phase Inverter Techinical Parameters

Item Model JNP750LS-V1
DC input 　
Max. input DC voltage 60Vdc
Recommended MPPT voltage 25-50Vdc
Max. input DC current 30A
Max. MPPT efficiency 99%
Number of string 2
AC input 　
Input voltage range 190~240Vac
Input frequence 50/60Hz
AC output 　
Max. applicable motor output power 0.75kW
Rated output voltage 220-240Vac 1-phase
Output frequency range 0-50/60Hz
Rated output current 6A
Mechanical data 　
Dimensions(W/H/D) 350*278*179mm
Weight 5.5kg
System 　
Max. efficiency 98%
Protective class I
Protection degree IP65
Operating temperature range -25℃ to +60℃,above 60℃ need derate operating
Cooling method Natural cooling
Display LCD
Communication interface RS485/GPRS
Altitude 3000m; above 3000m need derate operating
Noise emission ＜50dB
Compliance EN 50178; IEC/EN 62109-1

3, Product Advantages:

a. The warranty of our solar pumping inverter could be 3 years with CE certificate.

b. With full protection funciton and high work efficency, wide MPPT range could realize system work stable even in heavy cloudy day;

c. Automatic dry protection without using water level sensor, auotomatic phase sequence adjustment, easy installation and one key to start function, etc.

d. The IP65 outdoor design, Fanless design, long lifespan, about 10 -15 years.

4,Project Reference in UAE

Nature Cooling Single Phase Solar Pump Inverter With MPPT EN 50178 Compliance

Nature Cooling Single Phase Solar Pump Inverter With MPPT EN 50178 Compliance

Nature Cooling Single Phase Solar Pump Inverter With MPPT EN 50178 Compliance
