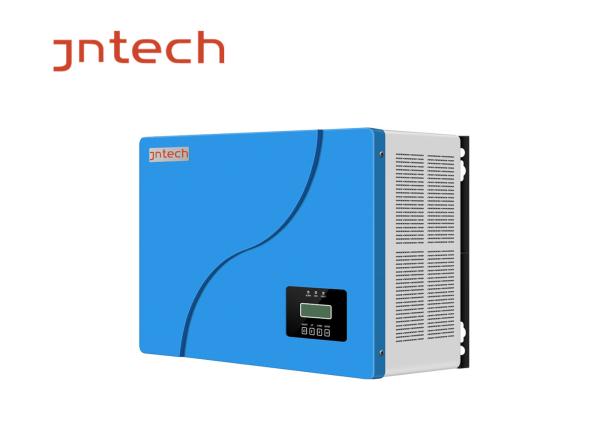

Waterproof Off Grid Solar Power Inverter With Hybrid Controller
Waterproof Off Grid Solar Power Inverter With Hybrid Controller
Specifications
Brand Name :
JNTECH
Model Number :
JNF1KLF
Certification :
TUV, CE
Place of Origin :
Anhui, China
MOQ :
1 pc
Price :
negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
7-30 days against payment
Packaging Details :
standard export carton with wooden pallet
max. pv input voltage :
150v
MPPT voltage range :
25-145v
battery rated voltage :
24v
battery max. charge current :
40A
charging efficiency :
≥96%
rated output capacitor :
1000VA
rated output power :
800W
output voltage :
220V/230V AC (±5%)
rated frequency :
50/60 Hz (±3%)
max. efficiency :
≥89%
total harmonic distortion (THD) :
<3%
waveform :
pure sine wave
rated current :
4.5A
Description

Jntech Pure Sine Wave Inverter , 1KVA Solar Off Grid Inverter Operating Temp. -20℃~+50℃

1. Introduction

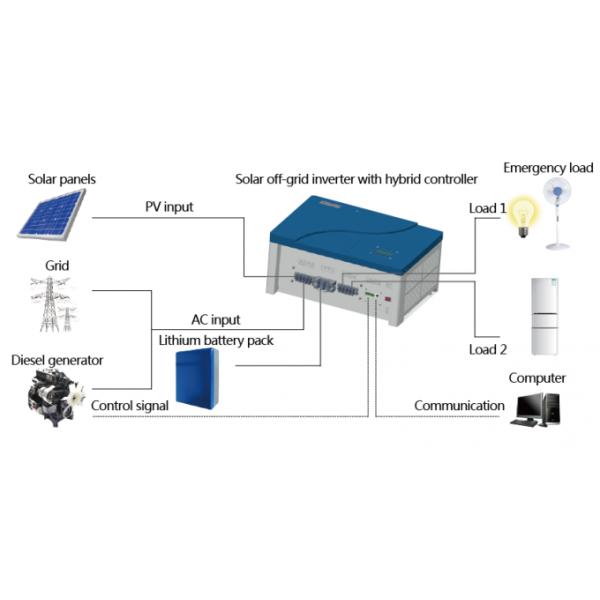

Combing functions of inverter, AC charger, solar MPPT charge controller and AC by-pass to offer uninterrupted power support with portable size. The comprehensive LCD display offers user-configurable and easy accessible button operation.


Waterproof Off Grid Solar Power Inverter With Hybrid Controller

Waterproof Off Grid Solar Power Inverter With Hybrid Controller

2. System features:

Safety:

1. Overload and short circuit protection;
2. Auto restart while AC is recovering;
3. Compatible to mains voltage or generator power.

Smart:

1. Perfect pure sine wave output;

2. Selectable charging current;

3. Configurable AC/DC input priority via LCD setting.

Reliable:

1. Built-in pure copper transformer;

2. Silicon-controlled rectifier be adoped in AC by-pass;

3. Provide power supply to load for 24 hours.

Intelligent:

1. Advanced battery management system (BMS);

2. Support sealed battery and lithium battery;

3. Special AC output design, adopt emergency & heavy loads separate control.


3. 1KVA solar off-grid inverter with hybrid controller parameters

PV Input
Max. PV array input voltage 150Vdc
Recommended PV array power 1500W
MPPT voltage range 35-145Vdc
Battery
Rated voltage 24Vdc
Rated charge current 40A
Efficiency ≥96%
Type Gel/Lithium
Inverter Output
Rated output capacitor 1000VA
Rated output power 800W
Output voltage 230Vac(±5%)
Rated frequency 50/60Hz(±3%)
Standby loss ≤10W
Max. efficiency 90%~93%
Total harmonic distortion (THD) <3%
Rated current 4.5A
Current peak factor 3:1
Overload

125% @rated power, 70s; 150% @rated power, 30s;

200% @rated power, 5s; 300% @rated power, 10ms
AC Input
AC input charge voltage 160~270Vac
AC input frequency 50/60Hz(±3%)
Max. charge current 20A
Grid by-pass
Switching time <20ms
Mechanical data
Dimension 485mm*365mm*235mm
Weight 17kg
Other parameters
Protection level IP21
Audible noice <60dB
Cooling method Force cooling
Operate temperature -20℃~+50℃
Storage temperature -25℃~+70℃
Status indicator LCD+LED
Interface RS485(optional)
Elevation 2000m (>2000m derting operate)

4. Technology

JNTECH has strategic cooperation with Chinese Academy of Scince, Hefei University of Technology, Anhui Agricultural University and so on. With their lastest technology, we update products continuously to meet the market demand. JNTECH possess one Senior R&D team based on doctors and masters, standard-setter of 6 items in national solar industry, about 60 patents of all kinds, over 10 invention patents.

5.Product Packing

Waterproof Off Grid Solar Power Inverter With Hybrid Controller

Waterproof Off Grid Solar Power Inverter With Hybrid Controller

Waterproof Off Grid Solar Power Inverter With Hybrid Controller

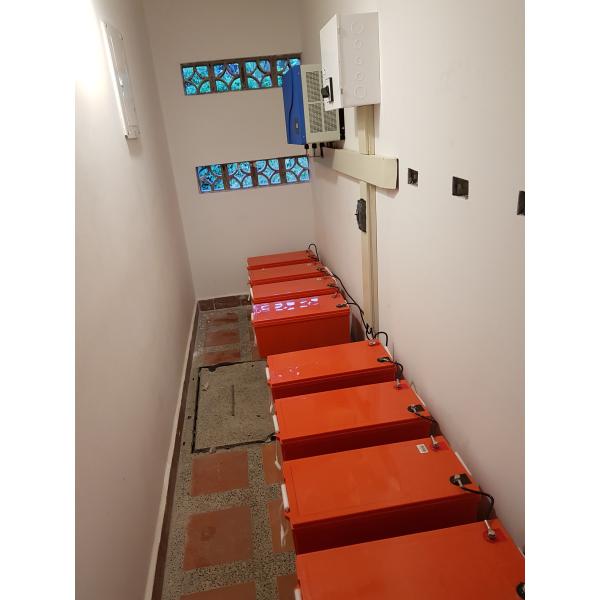

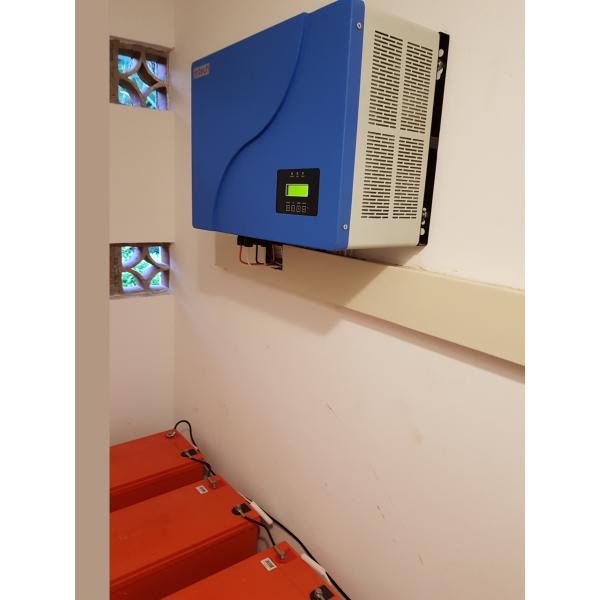

6. Project Case

Waterproof Off Grid Solar Power Inverter With Hybrid Controller

Waterproof Off Grid Solar Power Inverter With Hybrid Controller
