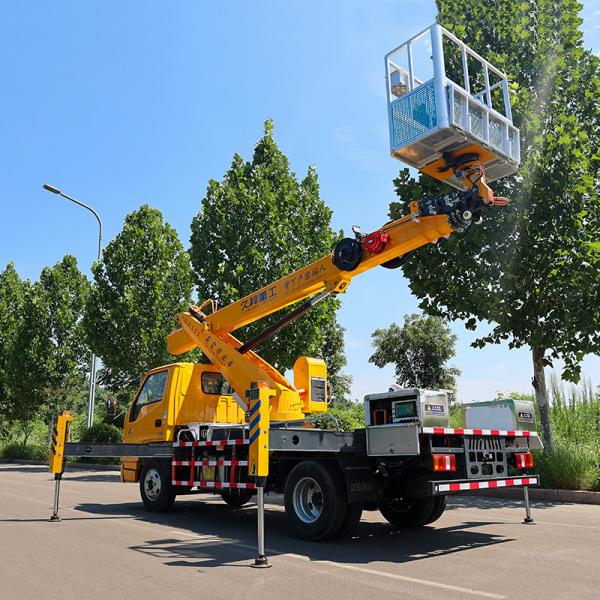

23m 27m 28m 30.5m customized telescopic boom man lift aerial work platform truck

Specifications

Transmission Type :

Automatic

Condition :

New

Emission Standard :

Euro 6

Fuel Type :

Diesel

Dimensions (L x W x H) (mm) :

5995*2000*3000mm

Place of Origin :

Shandong, China

Brand Name :

JIUBANG

After-sales Service Provided :

Onsite Installation, Video technical support, Online support

Horsepower :

< 150hp

Engine Capacity :

< 4L

Fuel Tank Capacity :

100-200L

Working platform dimensions :

1400*710*1200mm

Max. operating range :

14m

Working boom :

Four Section Hexagonal Work Boom

Rotary device :

360 deg continuous rotation

Max working height :

23m

Rated load :

200kg

Gross Vehicle Weight :

4495kg

PTO System :

Mechanical operation

Packaging Details :

Comply with Export Packaging Requirements

Port :

Tianjing, Lianyungang, Qingdao, Shanghai port

Supply Ability :

6000 Unit/Units per Year

Price :

$32,900.00/units 1-2 units

Description

Products Description

Jiubang 23m aerial working vehicle adopts JMC as the working platform chassis, with the working height up to 23m. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

SHANGHAI BAOSTEEL BOOM

High strength, stronger bearing capacity

REINFORCED TELESCOPIC BOOM

Hexagonal working boom, more stable structure

Chassis
Brand	JMC	Drive	4 x 2
Dimensions(L x W x H)	5995 x 2000 x 3000(mm)	Gross Vehicle Weight	4495 Kg
Engine	Isuzu	Horsepower	115 HP
Max. speed	99 Km/h	Emission Standard	Euro VI
Wheelbase	3360 mm	Braking system	Oil brake
Approach angle	27°	Departure angle	11°
Aerial work platform
Working platform dimensions	1400 x 710 x 1200 mm	Rated load	200 Kg
Max. working height	23 m	Operating range at max. working height	3 m
Max. operating range	14 m	Working height at max. operating range	14.5 m
Working boom	Four section hexagonal work Boom
PTO System	Mechanical operation	Rotary device	360 deg continuous rotation
Derricking cylinder	1 set	Telescopic structure	Oil cylinder and wire rope
Outrigger	Front V and rear H, separately controlled
Outrigger span(TVS)	4350 mm	Outrigger span(I)	4050 mm
Operation mode	Remote / electric / manual
Emergency system	Automatic
Control system	CAN bus control system
Leveling system	Liquid automatic leveling
Control voltage	12 V

MORE STABLE LIFTING

Equipped with reducer and automatic leveling system

Equipped with Dejin rotary reducer, the movement speed is adjusted stably

Liquid automatic leveling system makes the working platform more stable

360 DEGREE ROTATION

The working platform and rotary device can rotate 360 degrees

The rotary device can rotate 360 degrees continuously

The working platform can rotate 360 degrees continuously

FOUR IN ONE OPERATION

Different operation modes in different construction environments

MULTIPLE SECURITY GUARANTEES

Multiple safety schemes to ensure personnel and construction safety

HYDRAULIC OUTRIGGER

Front V and rear H type design, can be adjusted separately, more stable

Interlock the outrigger and vehicle to prevent misoperation

The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way

AUTOMATIC EMERGENCY PUMP

When the engine and main pump fail, the staff can be sent back to the ground through the emergency system

For emergency stop operation and limit boom operation

When the working range reaches the specified value, the dangerous direction will be automatically limited

MORE PRODUCT DETAILS

Details determine product quality

PRODUCT PHOTOGRAPH

More real product photos

MORE PRODUCTS

products can be customized according to your needs

Company Profile

Jining Jiubang Construction Machinery Equipment Co., Ltd., located in Jining, Shandong Province, the birthplace of Chinese Confucian culture, is a model enterprise in the heavy machinery manufacturing industry, focusing on the R&D, design and production of aerial work vehicles, truck mounted crane, folding boom cranes, spider crawler cranes and other products. At present, the company covers an area of 60,000 square meters, with laser cutting machines, bending machines, automatic digital processing equipment, etc., and has passed the ISO9001 international standard quality management system certification. Jiubang committed to developing high-tech products, has a number of technical patents, and has introduced the technology of Rexroth, Harvey, Siemens, Schneider and Mitsubishi to provide customers around the world with better products and services.

Main products: 21m, 23m, 26m, 27m, 28m, 32m, 36m, 40m, 45m, 50m aerial work vehicle, 32m aerial ladder trucks, self-propelled aerial work vehicle, truck mounted crane, folding boom crane, spider crawler crane, steel grabbing machine, laser leveling machine, etc.

CUSTOMER FEEDBACK

Widely praised and trusted

Packing & Delivery

FAQ

Q1: Is your company a factory or a trading company?
A: Yes,We are a factory specializing in the production of aerial vehicles.
Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.
Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of Letter.

Q4: What is your terms of delivery?

A: EXW,FOB,CFR,CIF,DDU.

Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.

Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
