Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Specifications
Transmission Type :
Manual
Condition :
New
Emission Standard :
Euro 6
Fuel Type :
Diesel
Dimensions (L x W x H) (mm) :
5950*2000*2980
Place of Origin :
Shandong, China
Brand Name :
Jiubang
After-sales Service Provided :
Video technical support, Online support
Horsepower :
< 150hp
Engine Capacity :
< 4L
Fuel Tank Capacity :
100-200L
Drive type :
4X2
Working platform dimensions :
1400 x 710 x 1200 mm
Max. working height :
27 m
Max. operating range :
12 m
Gross Vehicle Weight :
4495 Kg
Working boom :
Five section hexagonal work Boo
PTO System :
Mechanical operation
Rotary device :
360 deg continuous rotation
Packaging Details :
Comply with Export Packaging Requirements
Port :
Tianjing, Lianyungang, Qingdao, Shanghai port
Supply Ability :
1000 Unit/Units per Year
Price :
$35,000.00/units 1-2 units
Description
Products Description

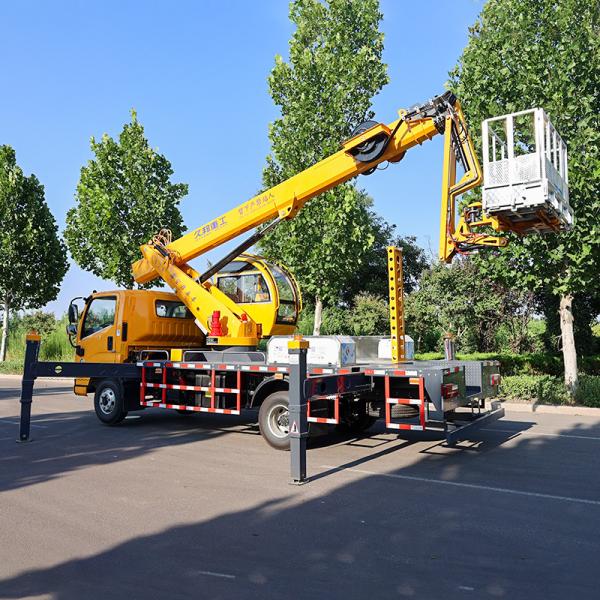

Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Jiubang aerial working vehicle adopts JMC/JAC/ISUZU as the working platform chassis. The overall structure is made of high-strength steel plates, which is safe and reliable. It is equipped with adjustable hydraulic outriggers, with a large span and more stable; Equipped with manual control, electric control, remote control and other modes of operation, convenient and fast; It also has interlock, soft retreat protection, automatic limit of working height in dangerous environment and automatic emergency system to protect personnel safety and construction safety.

SHANGHAI BAOSTEEL WORKING BOOM

High strength, stronger bearing capacity
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket

REINFORCED TELESCOPIC BOOM

Hexagonal working boom, more stable structure
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Chassis
Brand
JAC/JMC/Isuzu
Drive
4 x 2
Dimensions(L x W x H)
5995 x 2000 x 2980(mm)
Gross Vehicle Weight
4495 Kg
Engine
Isuzu
Horsepower
95/115 HP
Max. speed
110 / 99 Km/h
Emission Standard
Euro VI
Wheelbase
3360 mm
Braking system
Oil brake
Approach angle
27°
Departure angle
11°
Cab
Single row / 2 passengers / Air Conditioner
Aerial work platform
Working platform dimensions
1400 x 710 x 1200 mm
Rated load
200 Kg
Max. working height
27 m
Operating range at max. working height
3 m
Max. operating range
12 m
Working height at max. operating range
17 m
Working boom
Five section hexagonal work Boom
PTO System
Mechanical operation
Rotary device
360 deg continuous rotation
Derricking cylinder
1 set
Telescopic structure
Oil cylinder and wire rope
Outrigger
Front V and rear H, separately controlled
Outrigger span(TVS)
4140 mm
Outrigger span(I)
4300 mm
Operation mode
Remote / electric / manual
Emergency system
Automatic
Control system
CAN bus control system
Leveling system
Liquid automatic leveling
Control voltage
12 V

MORE STABLE LIFTING

Equipped with reducer and automatic leveling system
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Equipped with Dejin rotary reducer, the movement speed is adjusted stably
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Liquid automatic leveling system makes the working platform more stable

360 DEGREE ROTATION

The working platform and rotary device can rotate 360 degrees
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
The rotary device can rotate 360 degrees continuously
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
The manned platform can rotate 360 degrees continuously

FOUR IN ONE OPERATION

Different operation modes in different construction environments
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket

MULTIPLE SECURITY GUARANTEES

Multiple safety schemes to ensure personnel and construction safety
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
HYDRAULIC OUTRIGGER
Front V and rear H type design, can be adjusted separately, more stable
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Interlock the outrigger and vehicle to prevent misoperation
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
The outrigger touches the ground unevenly, and the boom is restricted to work in a dangerous way
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
AUTOMATIC EMERGENCY PUMP
When the engine and main pump fail, the staff can be sent back to the ground through the emergency system
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
For emergency stop operation and limit boom operation
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
When the working range reaches the specified value, the dangerous direction will be automatically limited

MORE PRODUCT DETAILS

Details determine product quality
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket

OPTIONAL CONFIGURATION

Products support customization, giving you more choices
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Panoramic operation room
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Enlarge the working platform

PRODUCT PHOTOGRAPH

More real product photos
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket

MORE PRODUCTS

PRODUCTS CAN BE CUSTOMIZED ACCORDING TO YOUR NEEDS
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Company Profile
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Jining Jiubang Construction Machinery Equipment Co., Ltd., located in Jining, Shandong Province, the birthplace of Chinese Confucian culture, is a model enterprise in the heavy machinery manufacturing industry, focusing on the R&D, design and production of aerial work vehicles, truck mounted crane, folding boom cranes, spider crawler cranes and other products. At present, the company covers an area of 60,000 square meters, with laser cutting machines, bending machines, automatic digital processing equipment, etc., and has passed the ISO9001 international standard quality management system certification. Jiubang committed to developing high-tech products, has a number of technical patents, and has introduced the technology of Rexroth, Harvey, Siemens, Schneider and Mitsubishi to provide customers around the world with better products and services.
Main products: 21m, 23m, 26m, 27m, 28m, 32m, 36m, 40m, 45m, 50m aerial work vehicle, 32m aerial ladder trucks, self-propelled aerial work vehicle, truck mounted crane, folding boom crane, spider crawler crane, steel grabbing machine, laser leveling machine, etc.
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket

CUSTOMER FEEDBACK

Widely praised and trusted
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
Packing & Delivery
Hot Selling Articulating Boom 27m Jingling aerial vehicle Articulated Boom Lift with Bucket
FAQ
Q1: Is your company a factory or a trading company?
A: Yes,We are a factory specializing in the production of aerial vehicles.

Q2: Can you satisfy my special requirement?
A: Definitely! We can customize the products you need according to your needs.

Q3: What's your payment term?
A: We accpet both T/T and L/C T/T:30% deposit by T/T,70% balance should be paid before shipment. L/C:100% irrevocable Credit of Letter.

Q4: What is your terms of delivery?
A: EXW,FOB,CFR,CIF,DDU.

Q5: How about your delivery time?
A: Generally, it will take about 10 to 20 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.

Q6: What about the Minimun Order Quantity?
A: The MOQ is 1 pcs.

Q7: Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery.
