Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Specifications
Place of Origin :
P.R.China
Brand Name :
M&G Productions P.R.China
Payment Terms :
T/T
Supply Ability :
We have enough of machine tools and worker power for any quantity order in industrial tools
MOQ :
Not Limited
Price :
Reasonble price accorinding to your order quantity and quality inquiry
Delivery Time :
6-36 days
Packaging Details :
stand export package
Origin :
China
Brand :
M&G
Package :
Polywood case or plastic box
STANDARD :
ISO
Description

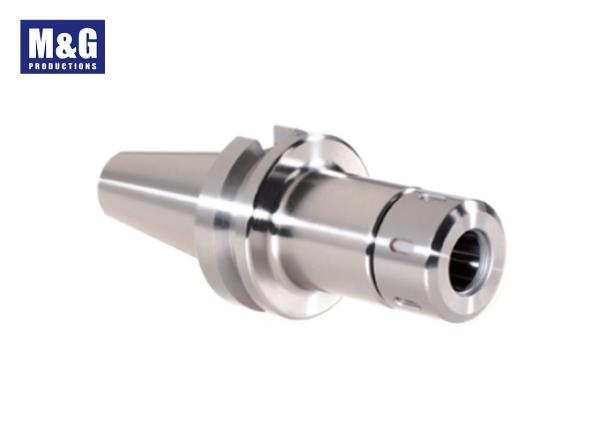

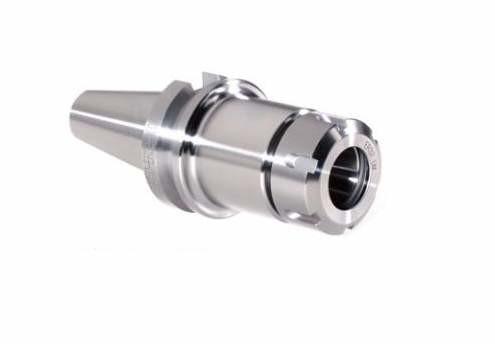

Collet Chuck Holder

Feature:
1. Taper shank is in onformity with AT3 standard
2. Concentricity of the inner and outer cone:0.005mm
3. Default balancing design.

Energy Saving Vertical Milling Machine Accessories Collet Chuck Holder
Technical Parameters:

Model No. Capacity L L1 D
MG30 -TJ06-60 2-6 108.4 60 20
MG30 -TJ06-80 128.4 80
MG30 -TJ10-70 2-10 118.4 70 27
MG30 -TJ10-95 143.4 95
MG30 -TJ16-60 3-16 108.4 60 40
MG30 -TJ16-80 128.4 80
MG30 -TJ16-100 148.4 100
MG30 -TJ25-80 6-25.4 128.4 80 54
MG40 -TJ06-65

2-6

 130.4 65 20
MG40 -TJ06-85 150.4 85
MG40 -TJ10-55 2-10 120.4 55
27
MG40 -TJ10-80 145.4 80
MG40 -TJ10-100 165.4 100
MG40 -TJ-10-150 215.4 150 40
MG40 -TJ16-55 3-16 120.4 55
MG40 -TJ16-80 145.4 80
MG40 -TJ16-100 165.4 100
MG40 -TJ16-150 215.4 150
MG40 -TJ25-70
6-25.4
 135.4 70 54
MG40 -TJ25-95 160.4 95
MG40 -TJ25-115 175.4 110
MG50 -TJ06-70 2-6
 171.8 70 20
MG50 -TJ06-100 201.8 100
MG50 -TJ10-100 2-10 201.8 100 27
MG50 -TJ10-130 231.8 130
MG50 -TJ10-150 251.8 150
MG50 -TJ16-100
3-16
 201.8 100 40
MG50 -TJ16-130 231.8 130
MG50 -TJ16-150 251.8 150
MG50 -TJ25-100
6-25.4
 201.8 100 54
MG50 -TJ25-130 231.8 130
MG50 -TJ25-150 251.8 150
