Specifications
Place of Origin :
P.R.China
Brand Name :
M&G Productions P.R.China
Payment Terms :
T/T
Supply Ability :
We have enough of machine tools and worker power for any quantity order in industrial tools
MOQ :
Negotiation
Price :
Negotiation
Delivery Time :
15 Days
Packaging Details :
Plastic Tube Packaged.
Brand :
M&G
Package :
Plastic tube or plastic box
Application :
General purpose，manufactured form High Speed Steel
Standard :
BS122 DIN1880
SIZE RANGE :
40.0~160.0mm 1.1/4“~6”
Description

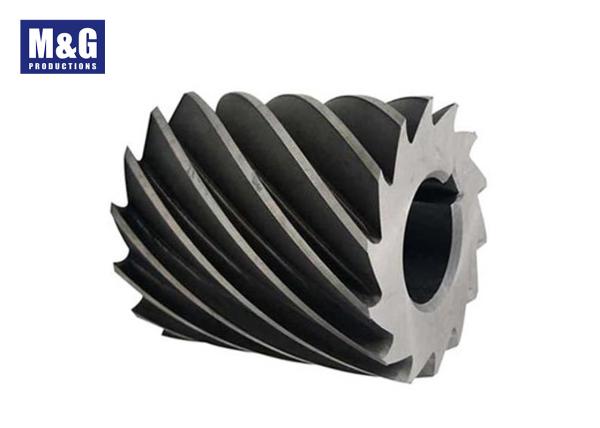

HSS And HSS Co End Mills High Quality Shell End Mills

End Mills are used for making shapes and holes in a workpiece during milling, profiling, contouring, slotting, counterboring, drilling and reaming applications. They are designed with cutting teeth on the face and edge of the body and can be used to cut a variety of materials in several directions.

  1. Material: HSS & HSS Cobalt
  2. We can manufacture shell end mill according to customers' requirement .
  3. Specification table of shell end mill :

Inch Size:

Shell endmills Inch Sizes (BS122)
Diameter D inch Length Bore dia Order Code
Shell End Mills 1-1/4” 1” 1/2” SEI80x64
Shell End Mills 1-1/2” 1-1/8” 1/2” SEI96x72
Shell End Mills 1-3/4” 1-1/4” 3/4” SEI112x80
Shell End Mills 2” 1-3/8” 3/4” SEI128x88
Shell End Mills 2-1/4” 1-1/2” 1” SEI144x96
Shell End Mills 2-1/2” 1-5/8” 1” SEI160x104
Shell End Mills 2-3/4” 1-5/8” 1” SEI176x104
Shell End Mills 3” 1-3/4” 1-1/4” SEI192x112
Shell End Mills 3-1/2” 1-7/8” 1-1/4” SEI224x120
Shell End Mills 4” 2-1/4” 1-1/2” SEI256x144
Shell End Mills 4-1/2” 2-1/4” 1-1/2” SEI288x144
Shell End Mills 5” 2-1/4” 1-1/2” SEI310x144
Shell End Mills 6” 2-1/4” 2” SEI374x144
Shell End Mills available in other sizes

Metric Size:

Shell endmill Metric Sizes (DIN1880)
Diameter D metric Length Bore dia Order Code 510
Shell endmills - STANDARD 　
Shell End Mills 40mm 32mm 16mm SEM40x32
Shell End Mills 50mm 36mm 22mm SEM50x36
Shell End Mills 63mm 40mm 27mm SEM63x40
Shell End Mills 80mm 45mm 27mm SEM80x45
Shell End Mills 100mm 50mm 32mm SEM100x50
Shell End Mills 125mm 56mm 40mm SEM125x56
Shell End Mills 160mm 63mm 50mm SEM160x63
Shell endmills - FINE 　
Shell End Mills 40mm 32mm 16mm SEMF40x32
Shell End Mills 50mm 36mm 22mm SEMF50x36
Shell End Mills 63mm 40mm 27mm SEMF63x40
Shell End Mills 80mm 45mm 27mm SEMF80x45
Shell End Mills 100mm 50mm 32mm SEMF100x50
Shell End Mills 125mm 56mm 40mm SEMF125x56
Shell End Mills 160mm 63mm 50mm SEMF160x63
Shell endmills - COARSE 　
Shell End Mills 40mm 32mm 16mm SEMC40x32
Shell End Mills 50mm 36mm 22mm SEMC50x36
Shell End Mills 63mm 40mm 27mm SEMC63x40
Shell End Mills 80mm 45mm 27mm SEMC80x45
Shell End Mills 100mm 50mm 32mm SEMC100x50
Shell End Mills 125mm 56mm 40mm SEMC125x56
Shell End Mills 160mm 63mm 50mm SEMC160x63

HSS And HSS Co End Mills High Quality Shell End Mills

HSS And HSS Co End Mills High Quality Shell End Mills
