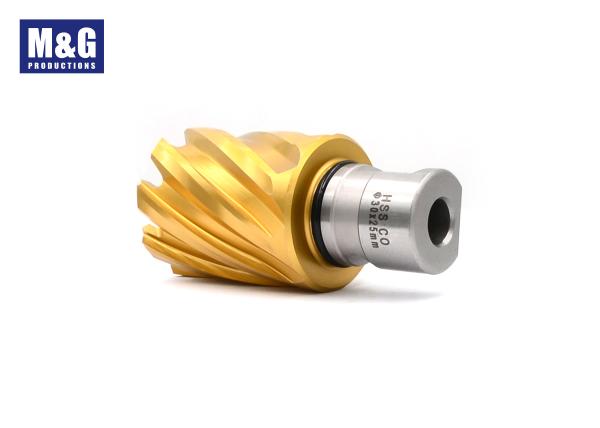

HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating
HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating
HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating
HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating
Specifications
Brand Name :
M&G
Model Number :
Cobalt Annular Cutter
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, PayPal, Visa
Supply Ability :
We have enough of machine tools and worker power for any quantity order in industrial tools
Delivery Time :
30 Days
Packaging Details :
PVC Pouch, Plastic Box
Product name :
HSS Annular Cutter
shanke: :
19.05mm/31.75mm
Type :
Annular Cutter / Core Drills
Packing :
Plastic Tube
Color :
TIN Coated
Shank :
Weldon Shank, Universal Shank, Fein Shank,Thread shank,Quick Release shank
Materials :
HSS M2 / HSS M35
Range :
12mm to 100mm / 1/2" to 4"
Description

Tin Coating Hss Annular Cutter High Efficiency Cobalt Annular Cutters For Metal Drilling

TiN coating is a very hard, gold coloured surface coating a few microns thick which is applied by means of a complex process, called Physical Vapour Deposition (PVD), by advanced modern equipment.
The coating is non-metallic and therefore reduces cold welding. In certain applications increased speed and feed rates can be achieved because of:
(a) The hardness of the coating.
(b) The reduction in cutting force required due to a decrease in friction between the tool and the workpiece.
Tool performance will deteriorate after re-sharpening.

Feature:

  • Made of high quality & super tough high speed steel with multi-cut geometry for ply-cutting and lower friction to reach better endurance and less breakage ;
  • Suitable for steel (such as T-brackets, large sheets), cast iron, non-ferrous and light metals;
  • Optimized cutting edge geometry for increased cutting performances and reduced cutting forces;
  • The effective cutting angles are designed for universal use in various sorts of steel;
  • Improved removal of chips thanks to U-shaped recesses. The specific geometry of the recess reduces the thermal load on the HSS core drill as the heat created in cutting is removed with the chips to a very great extent;
  • Reduction of the friction between the HSS core drill and the workpiece thanks to optimised spiral-shaped guide chamfers;
  • Universal shank cutter is designed for use in any magnetic drill press.

Specification:

Diameter Shank Cutting Depth
12mm-60mm 19.05mm 25mm 50mm 75mm 100mm
61mm-100mm 31.75mm
1/2"-2-1/3" 3/4" 1" 2" 3" 4"
2-1/3"-4" 1-1/4"

Pictures:

HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating

HSS(M2)/HSS Cobalt(M35)Annular Cutter,Rotabroach cutter, Slugger,Magnetic Drill bits with TiN Coating Or TiALN Coating
