DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
Specifications
Brand Name :
M&G
Model Number :
taper shank twist drill bit
Place of Origin :
CHINA
MOQ :
Negotiation
Price :
Negotiation
Payment Terms :
T/T, PayPal, Visa
Supply Ability :
We have enough of machine tools and worker power for any quantity order in industrial tools
Delivery Time :
30 Days
Packaging Details :
PVC Pouch, Plastic Box, Individually in Skin Card, Double Blister, Clamshell,Metal Box
Product name :
DIN345 HSS M2/M35/M42 cobalt taper shank twist drill bit for stainless steel
Shank :
Taper shank
Processes :
Fully Ground, Milled, Roll forged
Flute Type: :
Type N, Right Hand Cutting
Use :
Metal Drilling
Length :
Customized
Description

DIN345 HSS M2/M35/M42 cobalt Morse Taper Shank twist drill bit for stainless steel

Procuct Name HSS M2 Morse Taper Shank Twist Drill Bit for Metal Drilling
Material HSS 4241 4341 6542-M2 (Co 5% M35 is Available)
Process Milled (Roll Forged is Available)
Standard DIN345 (ANSI, DIN1870, DIN341 are Also Available)
MT No. No.1 to No.6
Size 7.5mm - 100mm or 3/8'' - 4''
Flute Type Type N, Right Hand Cutting
Point Angle 118 Degree (135 Degree Split Point, Thinning Point are Available)
Surface Finish Gray & Bright (Black Oxide, Black & White, Bright, Amber Color, Titanium Coating are Also available)
Package One Piece in Paper Box, Plastic Box, or Wooden Box

Feautres:

  • Taper Shank Drills have a tanged conical shank to fit directly into the tapered holes of drill press spindles, driving sleeves or sockets.They are designed for general purpose drlling in ferrous or non-ferrous metal.
  • High-speed steel tools are good for most general purpose applications, offering a combination of hardness and toughness for wear resistance.
  • Spiral flutes are constructed with a higher flute angle to remove chips more easily.
  • High performance HSS twist drill bit with morse taper shank for high precise drilling of larger bore diameter.
  • Heavy-duty geometry for drilling in tough, high-tensile materials under extreme operating conditions

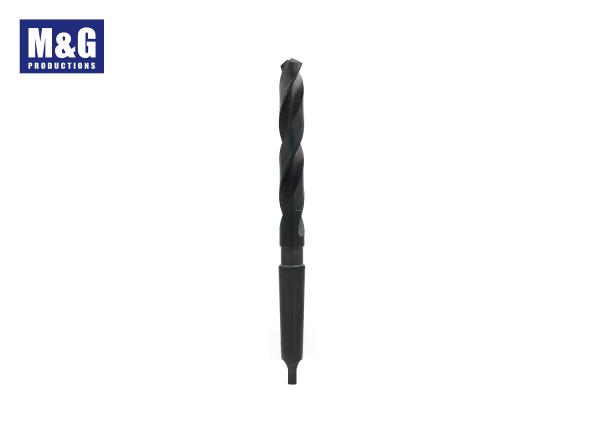

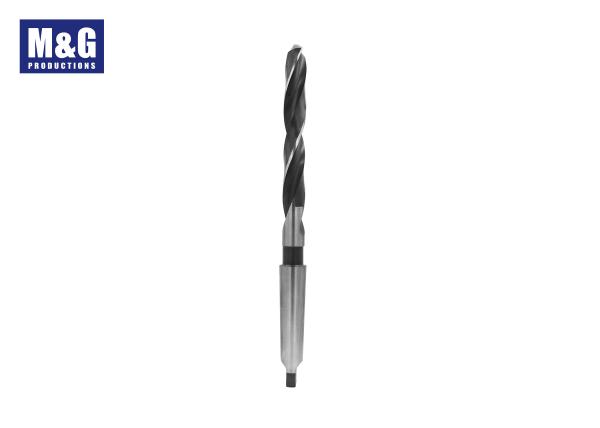

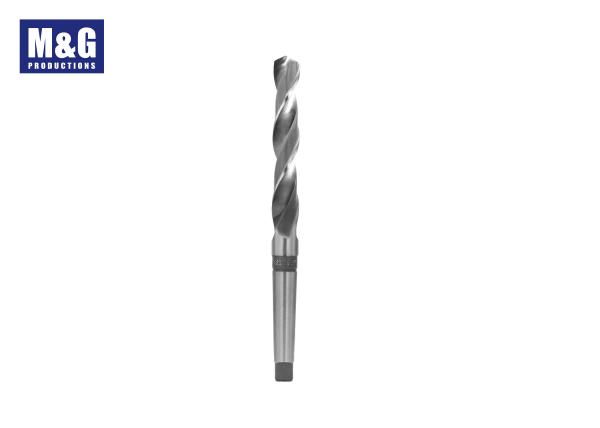

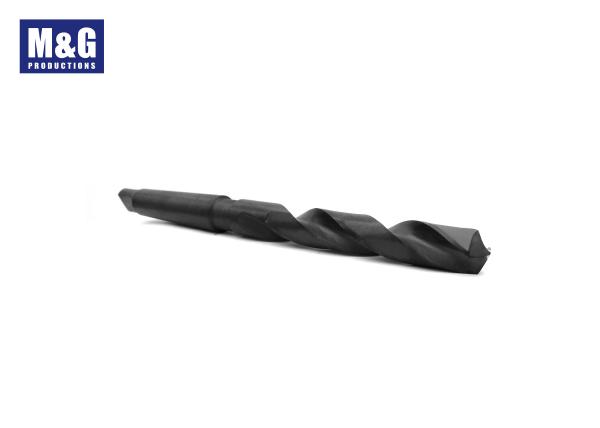

Pictures:

DIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finishedDIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finishedDIN 345 HSS(M2) HSS Cobalt (M35) Morse Taper Shank Twist Drill Bit HSS Bright or black finished
