Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate
Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate
Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate
Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate
Specifications
Brand Name :
Heng Yuan
Model Number :
HY004
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
Moister-Barrier with each piece,392 pcs per 20 ft container
Material :
Low carbon steel
Grade :
Q235
Slot size :
1.0mm
Diameter :
6 "
Length :
2900 mm
End connection :
Welded rings
Package :
Woden box,Container
Description

Jonson Vee Screen Low Carbon Steel Galvanized 30 Bar 20 Slot OD 168 6 "

Product Description:

Jonson Vee wire screen is made of the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Specification:

Material Low carbon steel galvanized
Grade Q235
O.D 168 mm
Size 6 "
Slot size 1.0 mm
Length 2.9 m
End connection Welded rings
Wire size 93 #
Support rod 120 #
Wire shape V shape

Regular Specifications:

SIZE

(INCH)

O.D

(MM)

SLOT

(MM)

LENGTH

(M)

COLLAPSE

STRENGTH

(BAR)

TENSILE

WEIGHT

(TON)

WRAP WIRE(WIDTH*HEIGHT)

(MM)

RODS

(MM)
3-1/2 88.9 1.0 3 ＞22 10.2 2.3*3.5 3.8MM/22
4-1/2 114.3 1.0 3 ＞28 11.5 2.3*3.5 3.8MM/22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.3*3.5 3.8MM/32
6-5/8 168.3 0.63 5.8 ＞83 45 3.2*6.0 6.0MM*32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.3*3.5 3.8MM/48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*5.0 4.0MM/48
8-5/8 219.1 1.0 5.8 ＞60 46 3.2*6.0 5.0MM/48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.3*3.5 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*5.0 4.9MM/55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0 5.0MM/55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0 4.0MM/50
14 355.6 1.0 3 ＞80 37.8 3.0*5.0 4.0MM/59

Characteristic:

1. Screens with high open area are more suitable for the construction of high-quality water wells, oil wells and gas wells.
2. Low cost operation Screens with high open area shall favor groundwater infiltration. Abundant water shall reduce the water level’s down, thus to save energy consumption.
3. Reduce the abrasion of the pump
Under the same condition, high open area can make the speed of groundwater’s entering into the screen much slower than any other filtration apparatus, which will avoid sand’s entering into screen because of high pressure, thus reduce the abrasion of the pump.
4. Extend the life span of wells
Comparatively, groundwater’s entering into screen with higher open area is much easier than the entering into lower open area screen. The slow water flow shall extend the life span of wells.

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.

Custom range

Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.

Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.

Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.

Length: 2.9 M, 5.85 M. Up to 6 M.

Connection form: groove connection/weld ring connection or thread connection.

Application:

· Water Well

· Waste Water Treatment

. Water supply systems

· Coal & Mine

· Food Processors & Beverage Screens

· Environmental protection

· Refining & Petrochemical

· Architecture & Construction

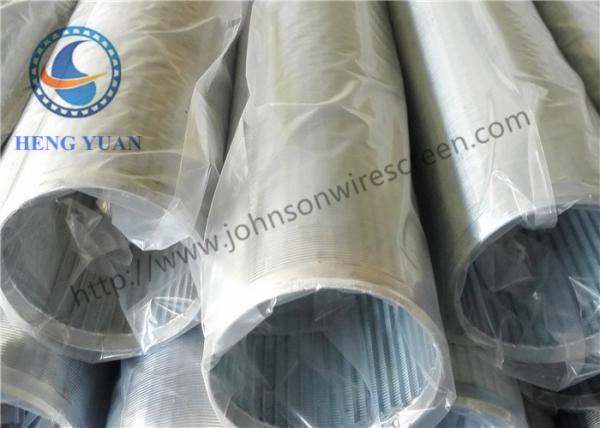

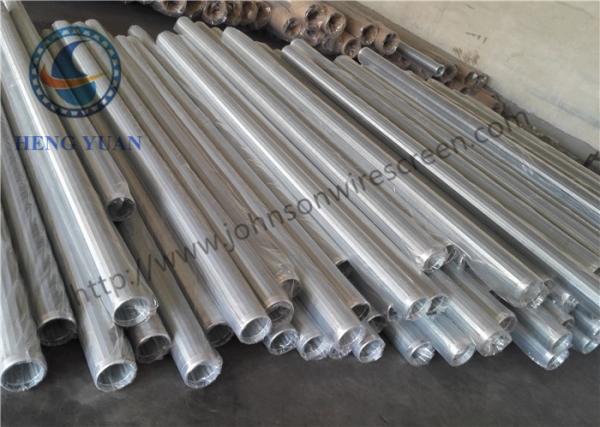

Pictures:

Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 CertificateLow Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate

Package:

Low Carbon Steel Galvanized Johnson Vee Wire Screen With ISO9000 Certificate
