Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
Specifications
Brand Name :
Heng Yuan
Model Number :
HY0010
Certification :
ISO9000
Place of Origin :
Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
7-10 work days,according to the quantity
Packaging Details :
according to the specifications
Material :
Stainless steel
Grade :
304
Slot size :
1.0 mm
Diameter :
520 mm
Length :
600 mm
Components :
None, as the customer's requirement
Package :
Woden box,Container
Description

Stainless Steel 316L Rotary Wedge Wire Screen Export To Singapore


Product Description:

Stainless Steel 316L Rotary Wedge Wire Screen

Drum Heat FITO Filter, is made by Wrapped wire and support rod.

From inside to outside (FITO):

Whereas,the liquid flow from inside to outside.It is with v-shaped cross-section of the stainless steel wire welded on framework, precision filter slot formed between every two adjacent wrap wire, facilitate the back flush filter residue can be ruled out smoothly, to achieve continuous water supply function.


Specification:

Material Stainless steel
Grade 316L
I.D 307 mm
Slot Size 1.0 mm
Components One end with Flange
Length 701 mm
Filter type From inside to outside
Wire size 2*3.5 mm
Support rod 3*4.6 mm
Wire shape Vee-shape


Regular Specifications:

Material: stainless steel 304, 316L.
I.D.: 150 - 1500 MM
Slot: 0.1mm - 100mm
Discrepancy: + / - 0.05mm
Length: upto 3000mm
Filter Type: from inside to outside.
Slot type: Inside circle wire and slot. inside vertical wire and slot.
Other components : Flange, stiffener, lifting handle, and other type components by request.


SIZES OF THE WIRE AND ROD
Wire
Width(mm) 1.0 1.2 1.5 2.3 3.0
Height(mm) 2.0 2.2 2.5 3.5 4.6
Rod Round wire
Width(mm) 2.3 2.3 3.0 3.7 3.3 Diameter
Height(mm) 2.7 3.5 4.6 5.6 6.3 0.25-0.5m


Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter


Special specification can be made according to your need.


Benefits:

● Smooth internal screen surface

● Facilitates cleaning with an internal axial-movement scraper

● The flow moves across the wire edges for effective dewatering

Pictures:

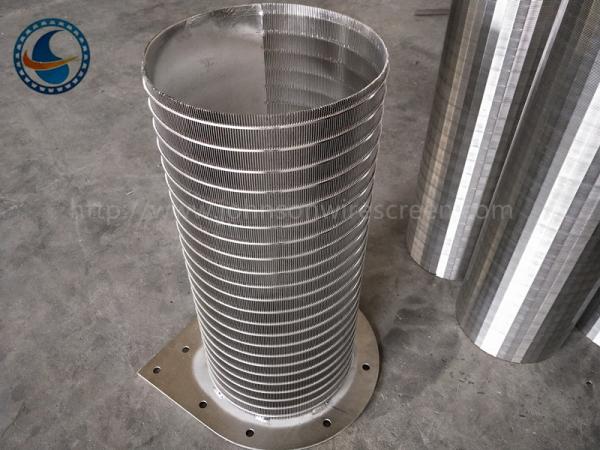

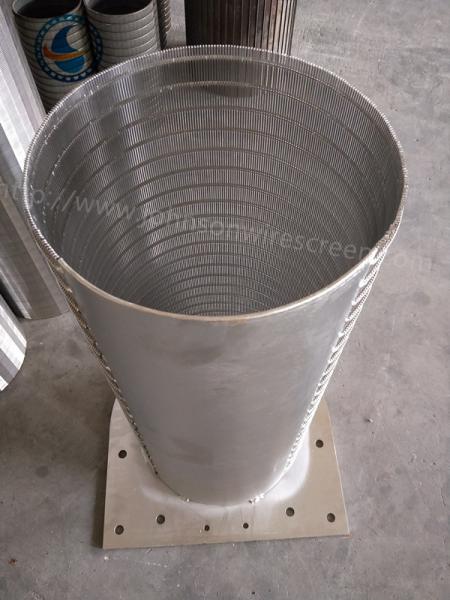

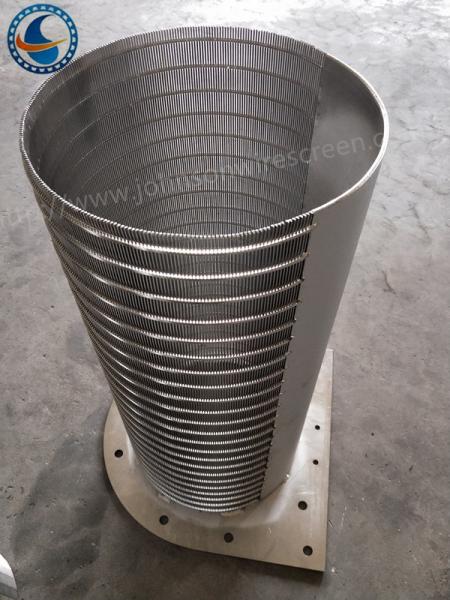

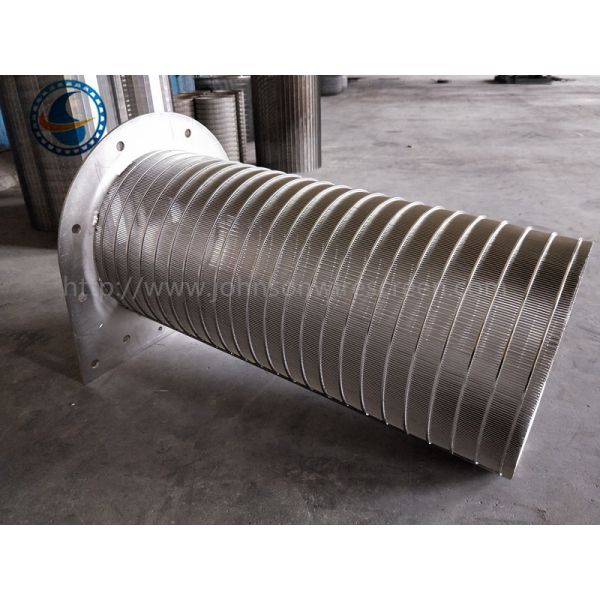

Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter

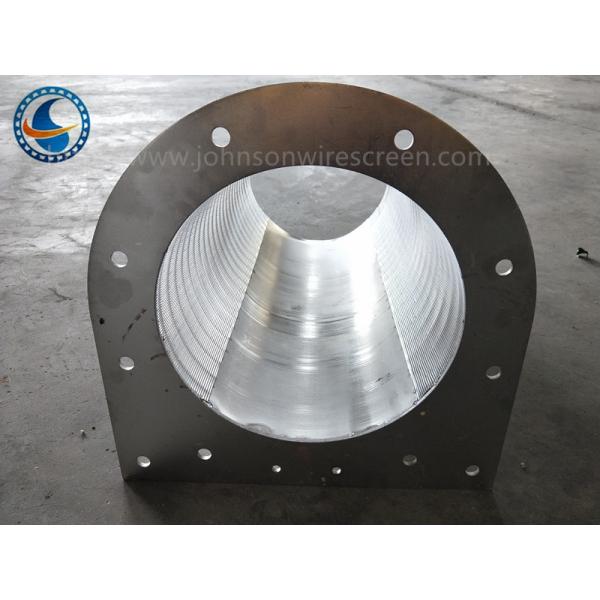

Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter

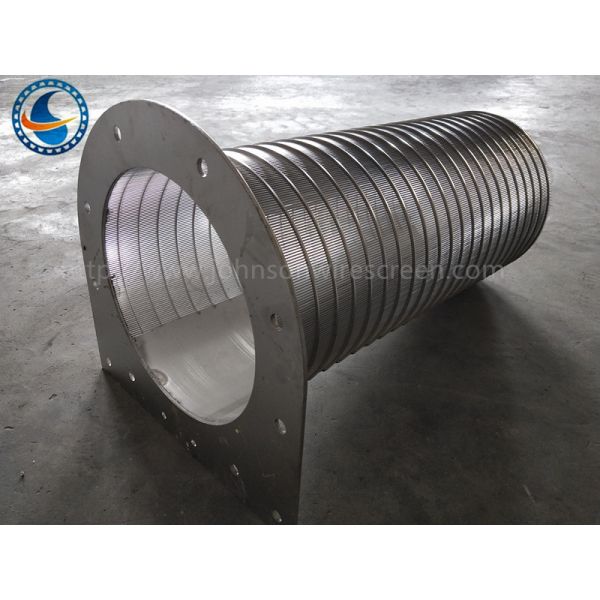

Stainless Steel 316L Rotary Screen Drum Wire Strainer Basket 520 Mm Diameter
