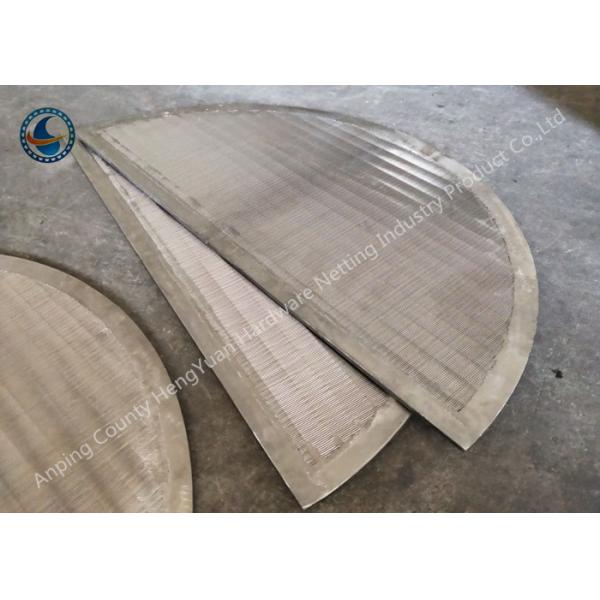

Durable Wedge Wire Screen Panels 1mm Slot For Liquid / Solid Filtration
Durable Wedge Wire Screen Panels 1mm Slot For Liquid / Solid Filtration
Specifications
Brand Name :
HengYuan
Model Number :
HY-145
Certification :
ISO9001-2008
Place of Origin :
Hebei,China
MOQ :
10 pcs
Price :
USD 150/PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
2000 pcs/month
Delivery Time :
10 days
Packaging Details :
wooden boxes
Name :
wedge wire screen panel
Technique :
Electric galvanized welded/all welded
Slot :
1mm
Wire :
1.5*2mm;2*3mm
Application :
liquid/solid filtration
Description

Support Grid Profile Wire Screen Sheet/Wedge Wire Screen Panel Manufactures From China​

The false bottom is standard in commercial breweries and very common in homebrew systems as well. It is the ideal lautering device for those who fly sparge because the uniform hole pattern prevents channeling, which can reduce extraction efficiency.

Material quality: 201, 202T, 205, 304, 304L, 316, 321, etc.

Primary tanks/kettle/brewing system uses for wedge wire screens:


• Lauter tun screen
• Mash tun screen
• False bottom screens
• Custom made screens for retrofit or new installations

Material: stainless steel (304,316,316Letc.)
Wedge Wire (mm): Width : 2
Height:4
Support Rod (mm): Width : 3
Height : 5
Diameter: 37'',45'',47'',54'',59'',74'',900mm,1.2m,1.6m,1.899m etc
Bearing rod: 3*15,3*20,3*25
Frame 8*25,8*30
Slot size: 0.02,0.05,0.1 0.15, 0.20, 0.25, 0.30,....., 3.00 also achieved upon request.
Note: Other specifications can be customized according to your requirement

Durable Wedge Wire Screen Panels 1mm Slot For Liquid / Solid Filtration

Features:
High screening rate, wear resistance, corrosion resistance, non-slip, anti-vibration, strong elasticity, strong toughness, not close together. The mesh section is trapezoidal. The gap is narrow and wide. It is a sieve strip made of stainless steel wire cold-rolled. The support strip is welded by automatic mining screen production equipment. The sieve joint is uniform, the welding quality is stable, the opening ratio is high, the service life is long, and the strength is high. And carrying capacity can be made into various shapes of steel, screening filter device.

Durable Wedge Wire Screen Panels 1mm Slot For Liquid / Solid Filtration

Our factory Hengyuan hardware netting industry product co., Ltd located in Anping county, Hebei Province, China.

Our mainly products are : stainless steel vee shapred wire / wrap wire , Johnson screen , water well screen / rod based wire wrapped screen , wedge wire screen pipe , reverse wedge wire screen , screen nozzle / water and gas strainer , sieve plate , slot mesh , ARC screen , header and hub laterals & hub radial laterals , pipe base ,stainless steel wire mesh etc.
