8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
8-5/8 Stainless Steel Johnson Water Well Screen 219mm Diameter Rustproof
Specifications
Brand Name :
Heng Yuan
Model Number :
8-5/8"
Certification :
ISO9000
Place of Origin :
Hengshui,Hebei,China
MOQ :
1pcs
Price :
Negotiation
Payment Terms :
L/C, L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000pcs/Month
Delivery Time :
10 work days

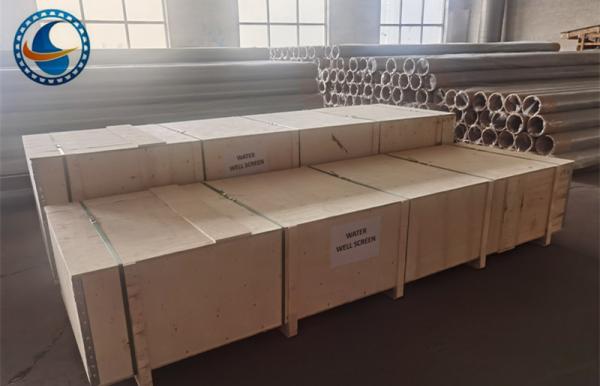

Packaging Details :
Plastic film
Name :
Johnson Water Well Screen
Material :
Stainless steel 304
Diameter :
219mm
Length :
3000mm
Slot size :
#40 (1.0mm)
Wrap wire :
2×3.5mm
Support rod :
ø3.8mm
NO. of rod :
48NOS
End connection :
Bevel welded rings
Weight :
46KG/piece
Package :
Plastic film
Use :
In water wells for sand control
Description

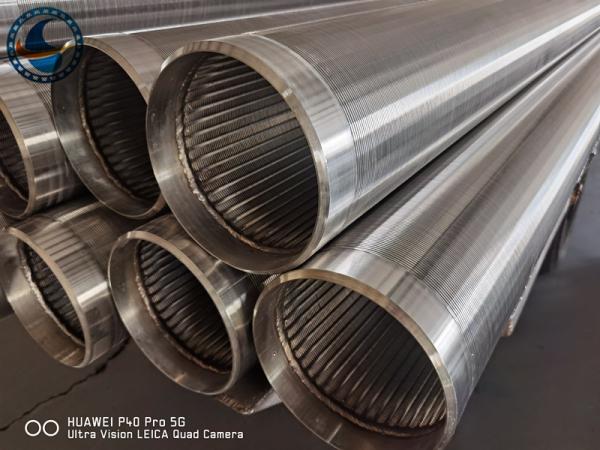

8-5/8" Stainless Steel Johnson Water Well Screen For Water Wells

Successful water wells begin with Johnson water well screen

When it comes to water wells, you want to do it right the first time. This means using screen products that perform as billed.

Johnson Water Well Screen products are built to the highest standards. Hengyuan water well screens are available in 304 stainless steel and diameters ranging from 26mm to 477mm. The length upto 6m. We track manufacturing from the moment raw materials arrive to the second a screen is shipped. We do this as part of our total quality assurance and quality control program. It guarantees the highest possible performance and longevity.

Stainless Steel Johnson Water Well Screen Regular Specifications:

Name:Johnson Water Well Screen,Continuous Slot Water Well Screen,Oil Well Sand Screen,Water Well Screen,Water wire screen,Wedge wire screen,Screen tube,Slotted tube,Wound screen,Sand control screen, Wedge wire screen pipe, Rotary filter drum,Oil screen.
Material: Stainless steel 202,304,304L,316L,Non-magnetic Stainless steel,Low carbon galvanized etc.
Diameter: 3", 4", 6", 8", 10", 12", 14", 16", 18" etc.
Slot: From 0.1-100mm (Normal slot 0.5mm, 0.63mm, 0.75mm, 1.0mm, 1.5mm, Pls refer to below table)
Length: From 100-6000mm (Normal length is 2.9m/3m and 5.8m/6m, to fit container)
Wrap wire:2*3.5mm,2.2*3.5mm,3*4.6mm,3*5mm,3*6mm,3*6.5mm,3.2*6mm,4*7mm etc.
Support rod:ø3.0-ø6.0mm round wire, Also can be Vee-shaped wire.
Ends:Welded rings/Plain beveled ends,Male/female threaded,Flange etc.

Use:Water Well,Oil Wells,Waste Water Treatment,Water supply systems,Coal & Mine,

Food Processors & Beverage Screens,Environmental protection,Refining & Petrochemical,Architecture & Construction etc.

Sizes

(inch)

OD

(mm)

Slot

(mm)

Length

(m)

Tenslie

Strength

 Collapse Strength

Wrap wire

Vee-shaped wire(mm)

Support rod

Round wire(mm)
3-1/2 88.9 1.0 2.9 ＞22 10.2 2.0*3.5(Width*height) ø3.8MM×22
4-1/2 114.3 1.0 2.9 ＞28 11.5 2.0*3.5(Width*height) ø3.8MM×22
6-5/8 168.3 0.75 5.8 ＞40 12.8 2.0*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 1.0 5.8 ＞33 12.8 2.2*3.5(Width*height) ø3.8MM×32
6-5/8 168.3 0.63 5.8 ＞83 45 3.0*6.0(Width*height) ø6.0MM×32
8-5/8 219.1 1.0 5.8 ＞34 21.9 2.2*3.5(Width*height) ø3.8MM×48
8-5/8 219.1 1.0 5.8 ＞50 38.2 3.0*4.6(Width*height) ø4.0MM×48
8-5/8 219.1 1.0 5.8 ＞60 46 3.0*6.0(Width*height) ø5.0MM×48
10-3/4 273.1 0.75 5.8 ＞50 32.9 2.2*3.5(Width*height) ø4.0MM×55
10-3/4 273.1 1.0 5.8 ＞60 39.5 3.0*4.6(Width*height) ø4.8MM×55
10-3/4 273.1 1.0 5.8 ＞100 48 3.2*6.0(Width*height) ø5.0MM×55
12-3/4 323.9 1.0 5.8 ＞120 37.2 3.0*5.0(Width*height) ø4.0MM×56
14 355.6 1.0 2.9 ＞80 37.8 3.0*5.5(Width*height) ø4.0MM×59
16 426 1.0 2.9 ＞80 37.5 3.0*5.5(Width*height) ø4.0MM×64


Special specification can be made according to your need !

We provide Johnson Water Well Screen solutions to almost every industry, including:



Water Well,

Food &Beverage Screens,

Pharmaceutical & Biological industries,

Refining & Petrochemical,

Water Treatment & Liquid / Solids Separation,

Mineral & Aggregate Processing,

Pulp & Paper Screens.
