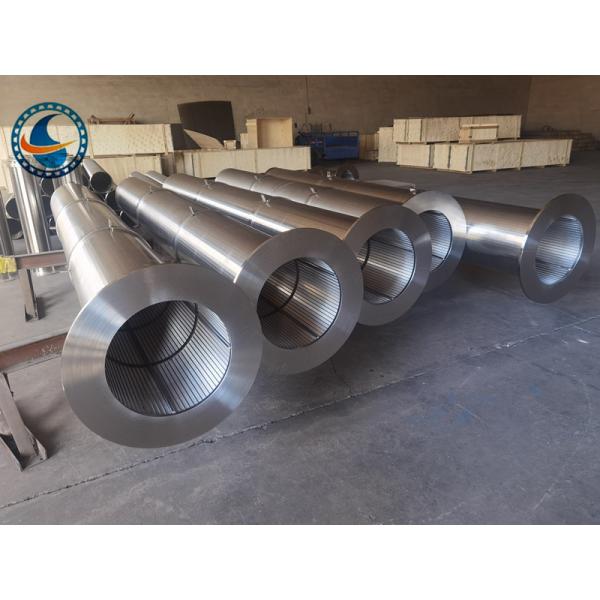

316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
Specifications
Brand Name :
HengYuan
Model Number :
HY022702
Certification :
ISO,CO,FORM E,CIQ, etc
Place of Origin :
Hengshui City,Hebe Provincei,China
MOQ :
1 piece
Price :
Negotiated price
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1500 pcs /month
Delivery Time :
7 days
Packaging Details :
wooden box
Name :
Welded Wedge Wire Sifter Screen
Material :
Stainless steel 316L
Diameter :
108mm
Length :
1000mm
Slot :
0.02mm
Wire :
1*2mm Vee wire
Support rod :
2*3mm Vee wire
Ends :
One end Closed up,the other flange
Technique :
Point welding
Features :
Non-clogging
Application :
Filteration
Package :
Wooden box
Business type :
Manufacturer
Filter type :
From outside to inside
Description

Stainless Steel Welded Wedge Wire Sifter Screen

Welded wedge wire sifter screen is manufactured by flat welded screen in panel or cylinder type.
Flat welded wedge wire panels offer a perfectly flat and smooth surface with rectangular openings.

Welded Wedge Wire Sifter Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

This kind of wedge wire can replace conventional media like wire mesh cloth, perforated plate and other metal sifting materials as components for rotary screen, well screen, quarry screen, etc..


Welded Wedge Wire Sifter Screen Application:


Separating;
Sizing;
Straining;
De-watering;
Filtering;
Drying;
Water intake;
Media retention.

Welded Wedge Wire Sifter Screen Size information:

Material : Stainless steel wire.Such as: SS304, SS201, SS316L etc.

Diameter : 25-1300 mm ,can make as customers request.

Slot: 0.02-10mm

Length :10-4000mm

End connection:male/female threaded couplings ,plain beveled welded ring ends ,flange,closed,same slot sieve plate.

Filter type:From outside to inside. also can make other type:From inside to outside.

Wire size: 1*2mm, 1.2*2mm, 1.5*2mm, 1.5*2.5mm, 2*3mm, 2*3.5mm, 2*4mm, 3*4.6mm, 3*5mm etc.

Support rod: 2*3mm, 3*4.6mm, 3*5mm etc.

Specification (wedge wire):

Width(mm): 1.0, 1.2, 1.5, 2.0, 2.2, 3.0

Height(mm): 2.0, 3.0, 3.5, 4.6, 5.0, 6.0

Specification (support rod):

Width(mm): 2.0, 3.0

Height(mm): 3.0, 4.6, 5.0, 6.0 ; Round wire: From 2.50mm to 6.0mm

Note: other specifications available as per request

Slot size:

0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request.

Material:

Stainless steel (304,316 etc.)

Length:

up to 6 meters

Diameter:

from 25mm to 1200mm.

316l Wedge Wire Filter Screen 0.02mm Slot Welded Stainless Steel
