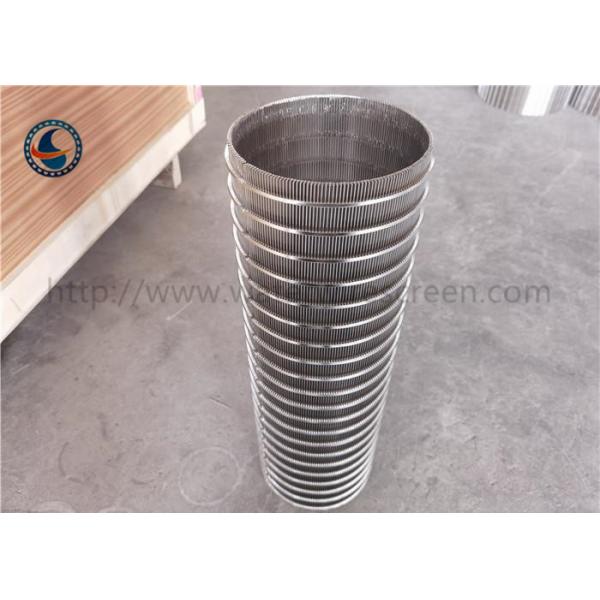

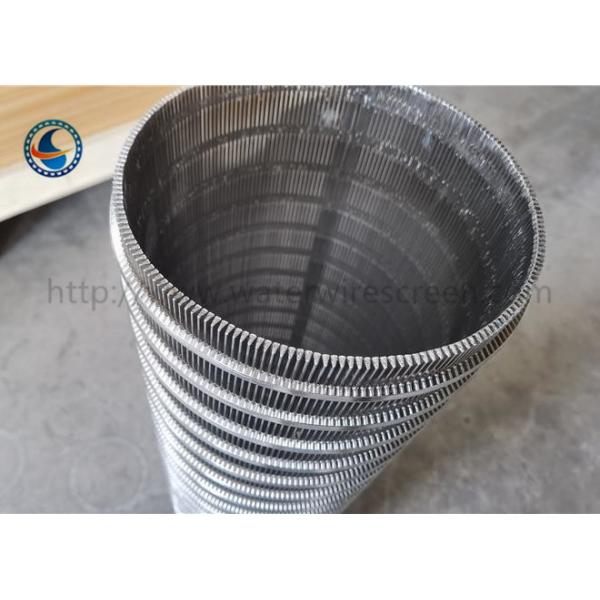

Stainless Steel 304 FITO Slot Johnson Screen Extrusion Dehydration Filter Cartridge

Product Description:

Slot Johnson Screen is made of the continuous slot,designed to provide maximum open are to reduce entrance velocity, increase hydraulic efficiency and promote more effective development.Both the inner and outer screens shall be constructed of V-shaped wire continuously wrapped around an array of equally spaced support rods of the same material.Each junction of wire/rod contact shall be resistance welded.The wrapped wire is V shape, and the support rod is O shape. Filter from outside to inside.

Filter precision conversion

FIlter Type:

Fron inside to outside:
1.The slot is vertical, the support bar is looped
2.The slot is looped, the support bar is vertical

Accessories:

Flange: welded flange at both ends. / One end of thread, one end of blind plate sealed / one end of thread and one end of mesh sealed
Reinforcing ribs/reinforcing rings:Weld reinforcement ribs or reinforcement rings on the body of the bobbin, according to customer requirements.

Specification:

OEM service:

Please tell us the specification of the wire screen you need, and we will help you to process the high quality products.
Custom range
Filter pipe material: mainly stainless steel, carbon steel galvanized, carbon steel spray or other customer requirements material.
Gap: 0.1mm-15mm, arbitrarily selected screen size to meet different construction requirements.
Diameter: 2 " 3 " 4 " 5 " 6 " 8 " 10 " 12 " 14 " 16 " 20 ". 29 mm - 1000 mm.
Length: 2.9 M, 5.85 M. Up to 6 M.
Connection form: groove connection/weld ring connection or thread connection.

Application:

· Water Well
· Waste Water Treatment
. Water supply systems
· Coal & Mine
· Food Processors & Beverage Screens
· Environmental protection
· Refining & Petrochemical
· Architecture & Construction

Pictures:

Package:
