Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Valve seat boring machine T8590B for various cylinder covers(heads)
Specifications
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
China
Brand Name :
JORI
Voltage :
220V/380V, 220v / 380v
Dimension(L*W*H) :
1300x730x640mm
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant, Home Use
After-sales Service Provided :
Online support, Engineers available to service machinery overseas
Weight :
1200kg, 300kg
Motor Power (kw) :
0.85
Certification :
ISO CE
Product type :
Gas Valve Seat Boring Machine
Packaging Details :
Wooden case, Seaworthy package
Valve seat boring machine T8590A/T8590B for various cylinder covers(heads)
G.W: :
1400kg
Spindle travel :
180mm
Color :
Black Red
Machine packing size :
1600x1050x2250mm
Name :
Valve seat boring machine T8590A/T8590B for
Port :
Shanghai Port, China
Supply Ability :
50 Unit/Units per Year Valve seat boring machine T8590A/T8590B for various cylinder cov
Price :
$10,000.00/Units 1-2 Units
Description

Product Application

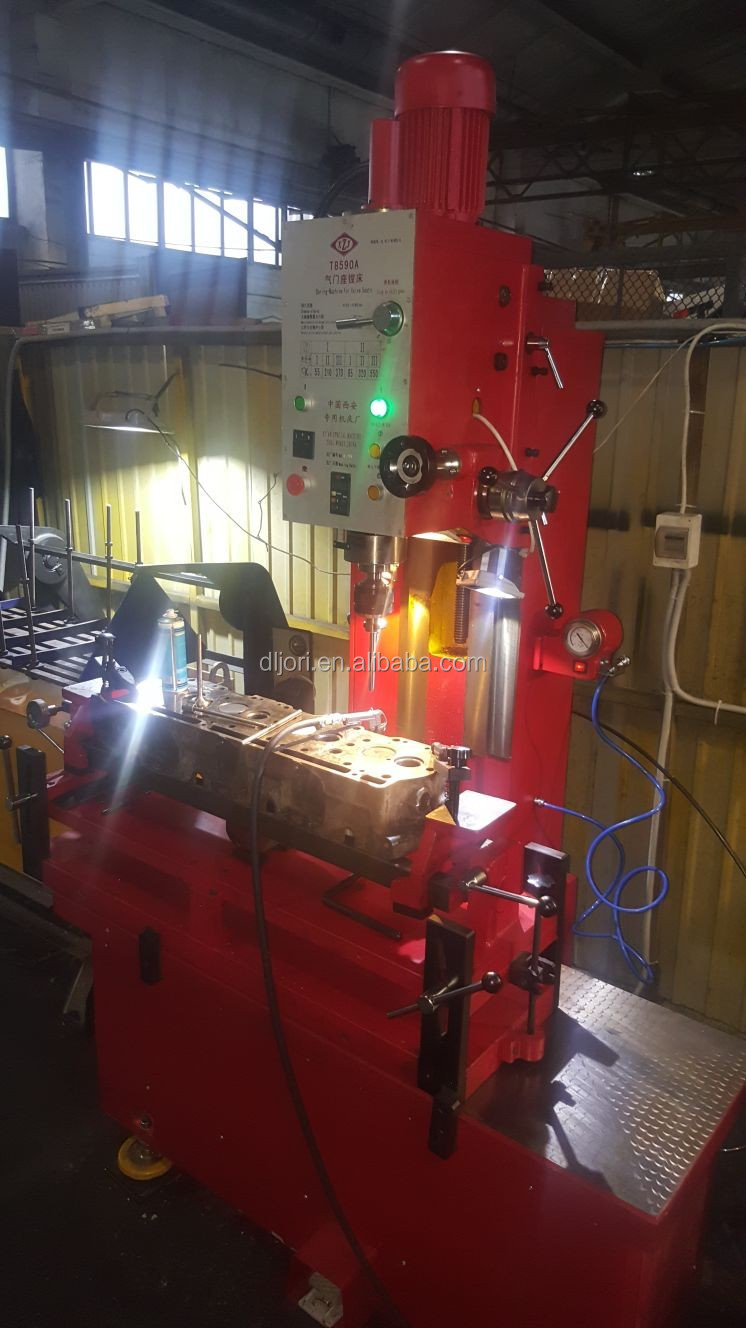

T8590 Gas Valve Seat Boring Machine


Introduction
The machine tool suits the needs of various cylinder cover for every engine. It can manufacture the gas valve seats hole for cylinder cover with various angles .When equipped with boring-drilling tools,it can bore,drill,ream the pipe seats hole for gas valve or repair it.

Characteristics
1.Its adopted haver working date and special rptatable slide.
2.It can be widelu used with many knives and di.
3.Its rapide-checking and non-pollutioning.
4.Knives can be multi-used.
5.It is suitable for boring lathing.
6.It meets mater heads of all sorts.

Model
T8590A
T8590B
Boring diameter
F25 –F90 mm
Spindle speed range
55, 85, 210, 320,

370, 550 rpm
15 – 800 rpm
Spindle travel
180 mm
Distance guide rail surface to spindle centerline
270 mm
Sliding Headstock speed
512 mm
Cylinder head fixture movement on the table
Cross 120mm
Longitudinally 860mm
Main motor power
1.1/0.85 kw 1400/950 rpm
Overall dimensions
1300x800x1930 mm
Packing dimensions
1700x1100x2000 mm
GW/NW
1200/1400 kg
