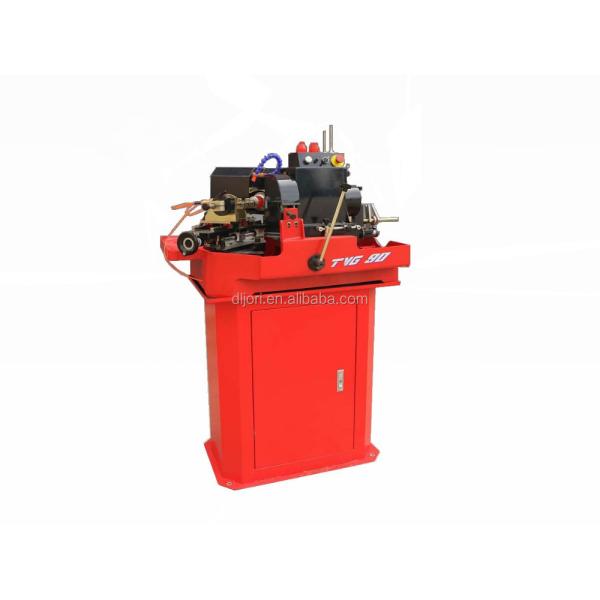

TVG90 valve refacer machine for engine rebuild
TVG90 valve refacer machine for engine rebuild
TVG90 valve refacer machine for engine rebuild
TVG90 valve refacer machine for engine rebuild
Specifications
Model Number :
TVG90
Type :
Valve Grinding Machine
CNC or Not :
Normal
Condition :
New, New
Place of Origin :
Liaoning, China
Brand Name :
JORI
Voltage :
220V/380V, 220v / 380v
Dimension(L*W*H) :
1050*800*560mm
After-sales Service Provided :
Engineers available to service machinery overseas
Valve stem dia.(min-max) :
4-14mm
Valve head dia.(min-max) :
12-90mm
Packaging Details :
Wooden case, Seaworthy package
TVG90 valve refacer machine for engine rebuild
Wheel Diameter :
200mm
Valve Length :
70-290mm
Color :
Red
Certification :
ISO CE, ISO9000,SGS,CE
Name :
TVG90 valve refacer machine for engine rebuild
Max. Grinding Diameter :
Long
Power :
0.09Kw
Max. Grinding Length :
Long
Weight :
120KG
Port :
Shanghai Port, China
Supply Ability :
50 Unit/Units per Year TVG90 valve refacer machine for engine rebuild
Price :
$1,630.00 - $1,900.00/Units
Description

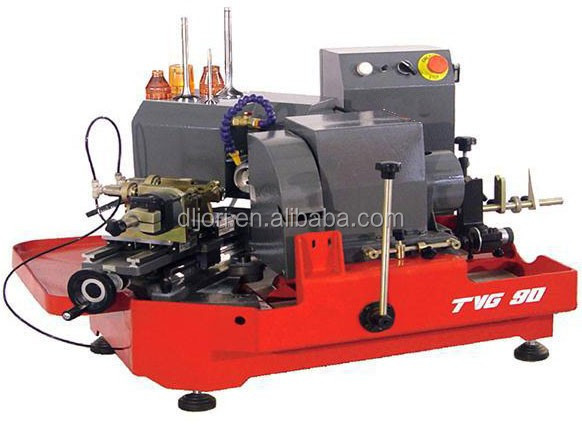

TVG90 Valve Grinding Machine:

Valve grinder machine is special for grinding the valves in internal combustion engines (the valves in engines on automobiles and tractors), featuring small size, flexible operation and easy use.

Model
TVG90
Valve stem dia.(min-max)
4-14mm
Valve head dia.(min-max)
12-90mm
Valve length dia.(min-max)
70-290mm
Angle grinding range
10-54 degree
Wheel diameter
200mm
Cup wheel diameter
100mm

Grinding wheel travel
90mm
Valve feed travel
90mm
Spindle motor
550w 2850rpm

Valve driving motor
180w 120-750rpm
Coolant motor
100w
Air supply
max.6 bar
