ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
Specifications
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
Liaoning, China
Brand Name :
JORI
Voltage :
Negotiable
Dimension(L*W*H) :
1400mmX570mmX1900mm
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant, Home Use
After-sales Service Provided :
Online support, Video technical support, Engineers available to service machinery overseas
Weight :
900KG, 900kgs
Motor Power (kw) :
1.2
Certification :
ISO9001, ISO
Boring hole diameter :
15mm - 160mm
Work table travel :
250mm
Functions :
boring rod bushing hole
Packaging Details :
Wooden case, Seaworthy package
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
Distance of rod 2 hole centers :
85mm - 600mm
Color :
Blue
Name :
Con Rod Boring Machine Model: LGT-16
Port :
Shanghai Port, China
Supply Ability :
50 Unit/Units per Month ConRod Boring Machine/connecting rod Boring machine Model: LGT-1
Price :
$9,000.00/Units 1-4 Units
Description

Features:

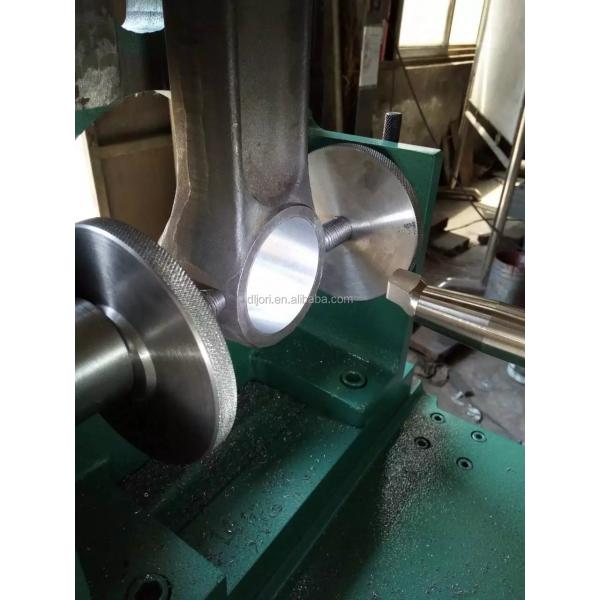

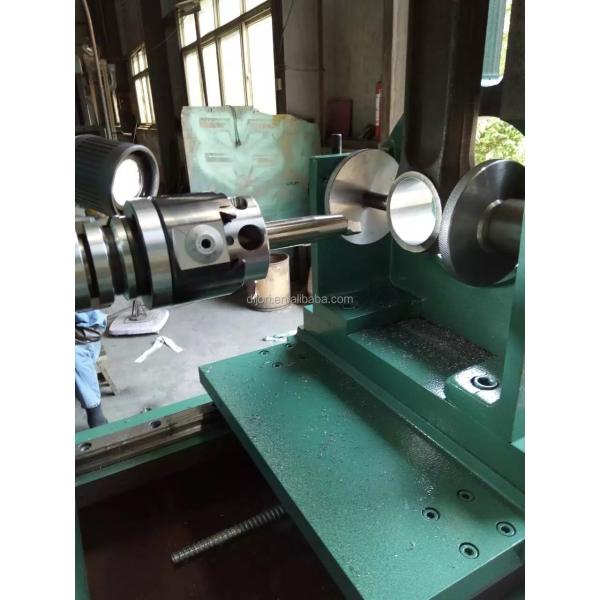

The machine is specially used for boring rod bushing hole (rod bushing and copper bush) in the engine maintenance industry, can also be used in generators and other equipment with inner hole machining of connecting rod of the similar parts.


1. Ball Screw
2. Stepping Motor
3. Linear Guideway

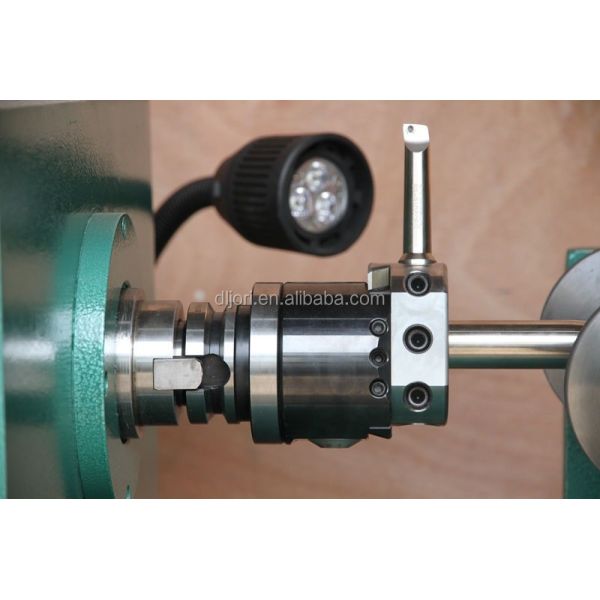

4. Import Tool holder

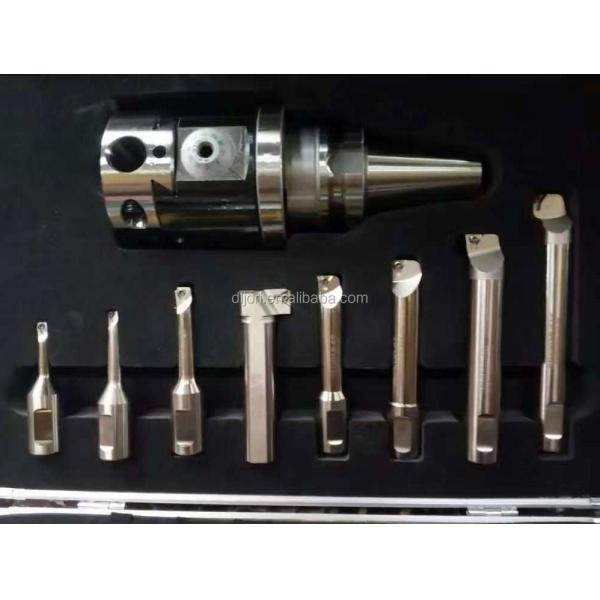

5. BT40 Cutter Set

Model
LGT-16
Boring hole diameter
Φ15mm — Φ160mm
Distance of rod 2 hole centers
85mm — 600mm
Feed speed
0-320mm/min, stepless
Work table travel
250mm
Main shaft speed
140---1200rpm
Main motor power
YD100-S 1.5KW
Diameter of boring bar
BT40
Stepper motor
1.5KW
Machine weight
900KG
Overall dimension
1400mmX570mmX1900mm
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
Related Products
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16

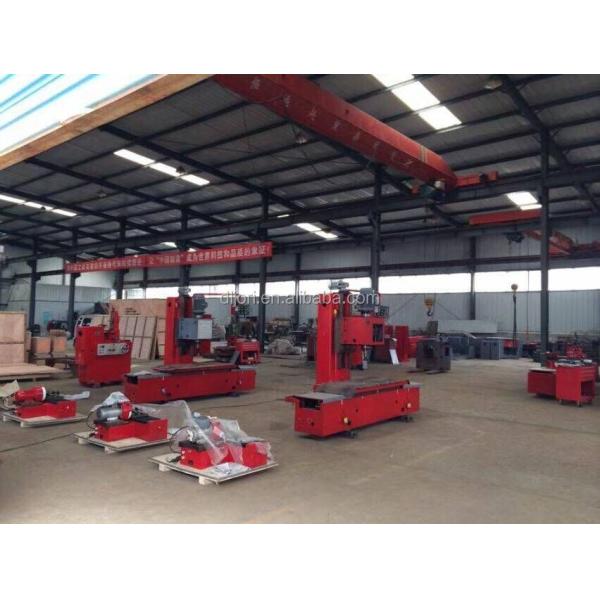

Our Plant
ConRod Boring Machine/connecting rod Boring machine Model: LGT-16
FAQ
1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order accoring buyer requirements. （2）Negotiate terms with the supplier
and confirm order （3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.

Before shipment we will supply all the common documents(packing list, commercial invoice, policy of insurance, bill of lading and certificate of origin) and send it by DHL.

6. What's the MOQ?
A: 1 unit.
