Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Specifications
Type :
VERTICAL
Condition :
New
CNC or Not :
Normal
Production Capacity :
High
Place of Origin :
Liaoning, China
Brand Name :
JORI
Voltage :
220V/380V, 220v / 380v
Dimension(L*W*H) :
1750*1150*2200mm
Warranty :
1 Year
Key Selling Points :
High-accuracy
Applicable Industries :
Manufacturing Plant, Home Use
After-sales Service Provided :
Online support, Video technical support, Engineers available to service machinery overseas
Weight :
1500kg
Motor Power (kw) :
2200
Certification :
ISO CE
Product type :
Valve seat boring machine for engine rebuild three column
Packaging Details :
Wooden case, Seaworthy package
Valve seat cutting machine TL120XL
G.W: :
1500kg
Spindle roration :
0-1000rpm
Color :
Red
Machine capacity :
16-120mm
Spindle travel :
200mm
Name :
Valve seat boring machine for engine rebuild three column
Port :
Shanghai Port, China
Supply Ability :
50 Unit/Units per Year Valve seat cutting machine TL120XL
Price :
$28,000.00/Units 1-4 Units
Description

Features :

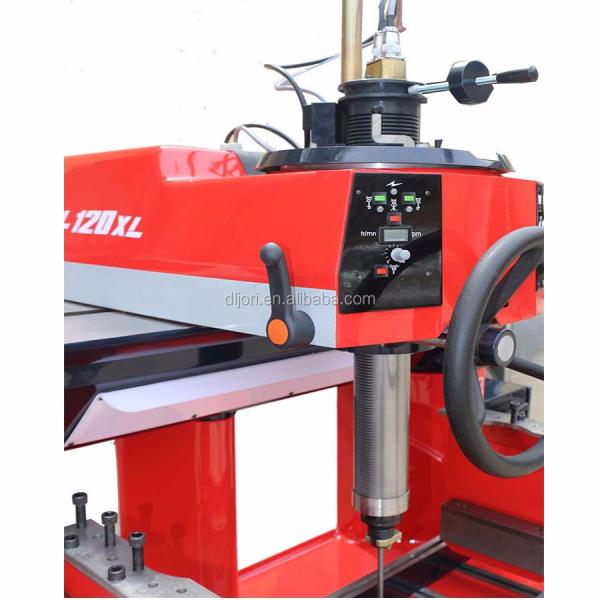

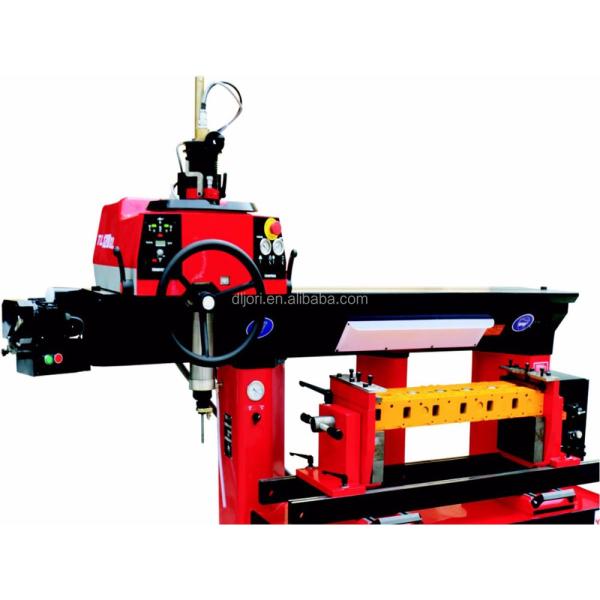

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads. Patented workhead with triple air-float patented centering system and built-in spindle motor. High precision machine featuring the latest technology incorporating air -float automatic centering and motorspindle. Air-floated table fixture can make the movement of workpiece more flexible. Especially developed for the repair of small motorcycle and automotive multivalve cylinder heads.

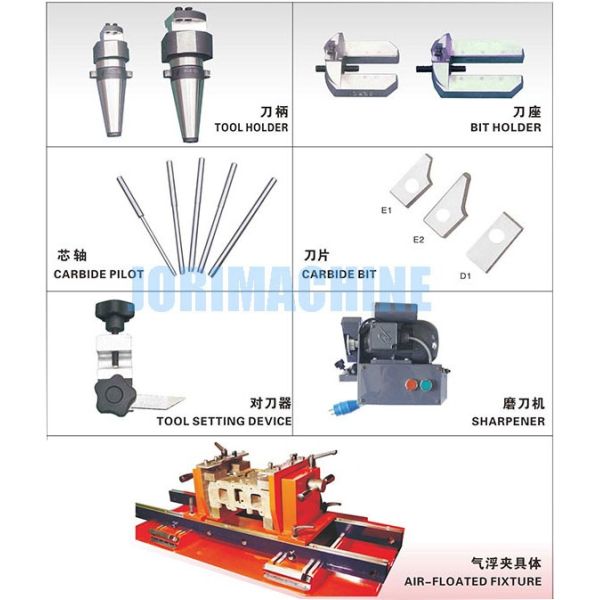

●Fitted with the new tooling that decreases the cutting force by 30%, this machine will cut the hardest seats.
●Machine bed structure optimized by static and dynamic calculation, with a functional design.
●Machining capacity from 0.551″ / 14mm to 2.36″ / 60mm.
●Fully integrated spindle motor: infinitely variable spindle speed,0 to 1000 r.p.m., with sensorless Vector Flux Control in open loop (Extremely broad torque ratings from lowest r.p.m.).

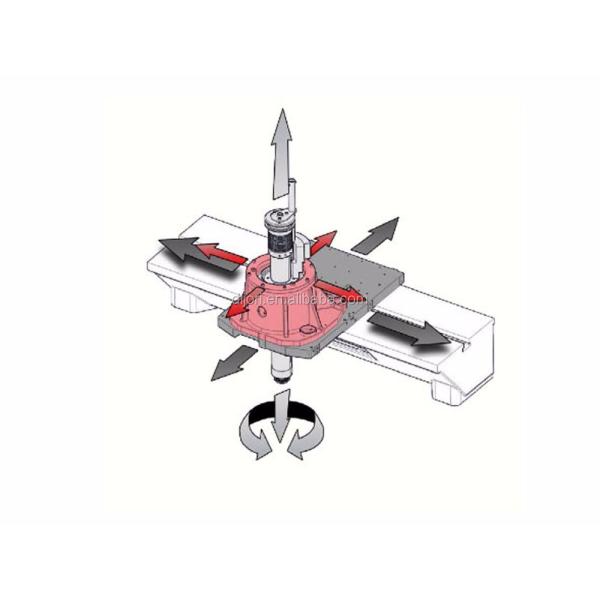

●Rigid, low-inertia workhead. Easy to use due to an automatic reset system.

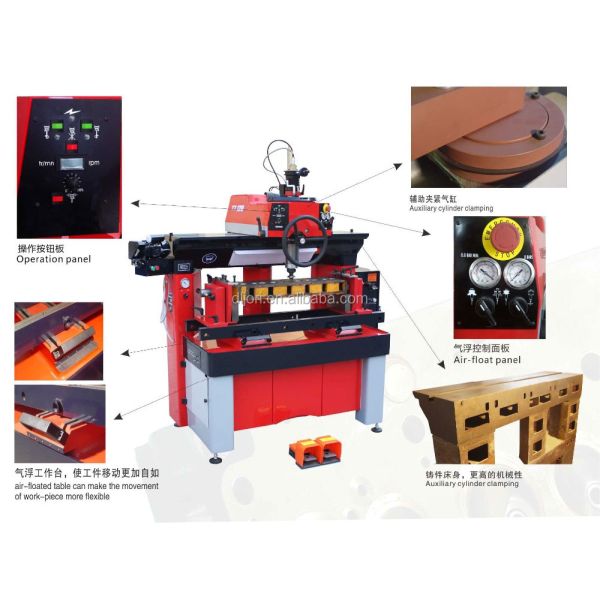

●Air-floated table fixture with 400mm lengthwise and 40mm crosswise travel.

Machine Space requirements
Model
TL120XL
Length
mm/inch
2000/58
-(optional) long with a beam
mm/inch
2400/78
Width
mm/inch
Mm/inch
Height
mm/inch
450/17.7
Crosswise work piece tilting
Degrees
+45°～-15°
Cross travel of worktable
mm
160
Machining capacity （min-max）
∮mm/inch
16-120/0.63-4.72
Work head displacement Lengthwise (standard)
mm/inch
mm/inch
Crosswise
mm/inch
40/1.6
Sphere cylinder travel mm/inch
mm/inch
9/0.4
Spindle Max. spindle inclination 5
Degrees
5°
Spindle travel (standard)
mm/inch
240/9.4
- option long
mm/inch
290/11.5
Spindle motor power
kw
2.2
Spindle rotation
rpm
0-1000
Power supply
380V/50Hz 3Ph /220V/60Hz 3Ph
Air flow
Bar/psi
6/87
Max. air
1/min/cfm
300/11
Level of noise at 400rpm
dba
72
At 1200rpm
dba
82
N W/G W
Kg/1bs
1650/3400
Machine Space requirements(L*W*H)
mm/inch
2250*1150*2280/89*45*86.6
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Related Products
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL

T8590A motorcycle cylinder boring machine

91.8% Response Rate

Air float Auto centering Valve seat boring machine TQZ8560

91.8% Response Rate

Line boring Machine T8120x20

91.8% Response Rate

Our Company
Valve seat cutting machine TL120XL
Packing & Delivery
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
Valve seat cutting machine TL120XL
FAQ
Valve seat cutting machine TL120XL
1. How long is your Warranty?
A: All our products will have ONE year guarantee and we will continue to offer advice and spare parts after this period.
Within ONE year after receiving our machines, Under right operation and non-artificial reasons, If there are any damaged parts or accessories, We will replace them by air-mail or Express immediately FREE OF CHARGE.
After ONE year warranty, Spare parts and damaged parts will be charged at cost price. If there is something wrong with the machine, We are responsible to solve this problem soonest, and help customers to restore production as soon as possible.

2. How to Guarantee transaction security?
A: We could draft Trade Assurance order for buyers via Alibaba-Trade Assurance is a free service by Alibaba.com that’s designed to help create trust between buyers and suppliers. Trade Assurance helps buyers in the event of shipping and quality-related dispute.

3. Your company accept Alibaba Trade Assurance?
A: yes, of course. （1） We will draft order accoring buyer requirements.
（2）Negotiate terms with the supplier and confirm order
（3） Make payment to the bank account designated by Alibaba.com

4. What's the payment terms?
A: 30% initial payment when place your order, 70% balance payment before shipment.

5. About machine's Transportation & documents?
A: Pls advise us the nearest port of your city in order to check the latest sea freight for you at first. Fast and security shipping company will be chose by our Delivery Department for customers (if we signed contract under CIF term). Even All risks Insurance will be covered during the whole transportation.

Before shipment we will supply all the common documents(packing list, commercial invoice, policy of insurance, bill of lading and certificate of origin) and send it by DHL.

6. What's the MOQ?
A: 1 unit.
