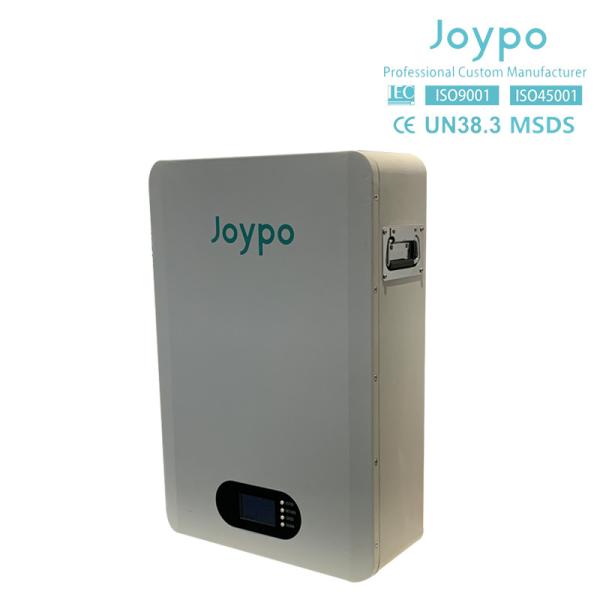

Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery
Specifications
Brand Name :
JOYPO
Model Number :
JP-EOS-10KWH
Certification :
MSDS,UN38.3,CE
Place of Origin :
Hunan, China
MOQ :
1
Price :
$299-1999/piece
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
10000 pieces per month
Delivery Time :
7-20 days
Packaging Details :
Carton or Wooden Carton
Product name :
Best battery storage system backup for solar power
Battery type :
Pack power wall
Battery Cell :
LFP prismatic cell
Battery Pack Construction :
16S2P
Dimension :
L650 X W580 X 230mm
Weight :
About 87kg / 192lb
Color :
White or customize
Application :
Residential Solar Power Storage and Battery System
Features :
UPS battery, 6000 times long cycle life, LCD displayer, Smart BMS, Support 16 pcs parallel connection, CAN/RS485/RS232 optional
Service :
OEM and ODM Accpeted
Description

Joypo wall mount solar back up power storage battery for home backup energy system

Six reasons to choose Joypo Power Wall:

Safe and reliable, built-in intelligent BMS, high quality A grade LiFePO4 cells.

Strong compatibility, compatible with most inverters on the market.

Long cycle life, more than 6000 times long lifespan.

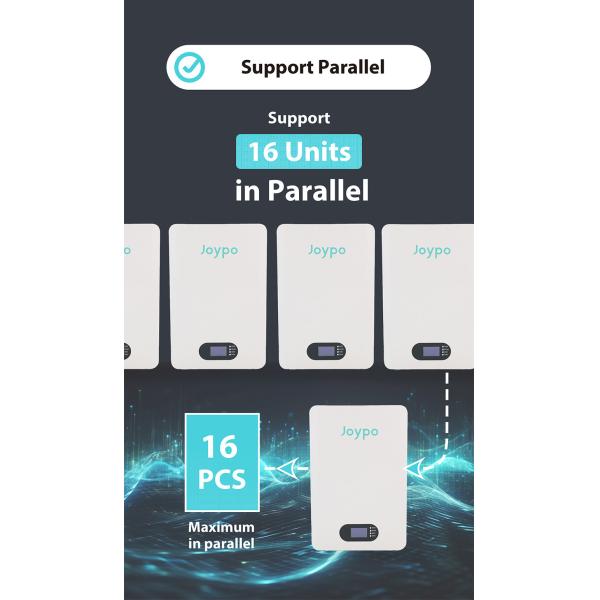

Support parallel connection, support up to 16 pieces connect in parallel.

Easy to operate, LCD screen displays battery status in real time.

Support ODM/OEM, low MOQ, easily build your own brand.

Project name Standard requirement
Operating Voltage 43.2~58.4V
Battery capacity 200Ah
Battery energy 10240Wh
Weight About 87kg
Dimension L650 X W580 X 230mm
Enclosure material 1.5mm cold rolled iron plate
Continuous charging current 100A
Peak discharge current 300A (duration 3S)
Rated discharge current 200A
Charging cut-off voltage 58.4V
Discharge cut-off voltage 43.2V
charging method CC-CV
Self-discharge ≤2% per month
Temperature characteristics

Charging Temperature:0℃～45℃

Discharge Temperature:-20℃～55℃
Storage temperature 0～45℃
Communication CAN/RS485/RS232
Cycle life 6000 times
Parallel rule Up to 16 packs can be connected in parallel
Battery protection Cell balancing, overcharging, over-discharge, overcurrent, overvoltage, short circuit, and so on

Wall Mounted Solar Back Up Battery 200Ah 10240Wh Home Energy Storage Battery

Advantages:

1. Energy independence

2. Reduce your electricity bill

3. Keep your appliances running during power shortages

4. Higher property values

5. Environmental benefits
