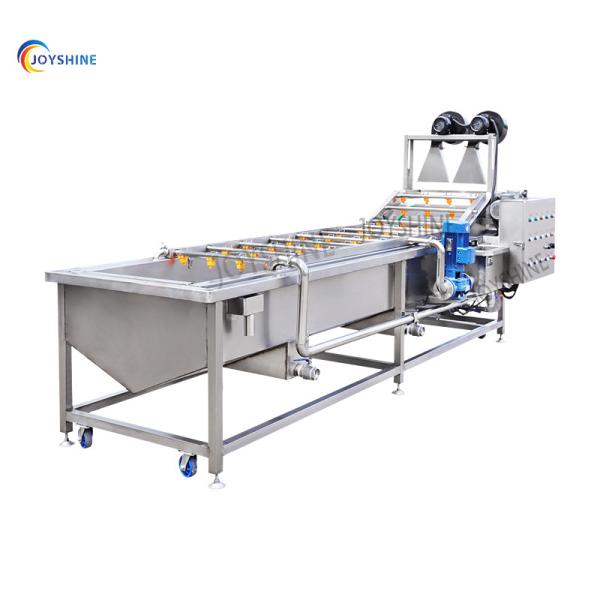

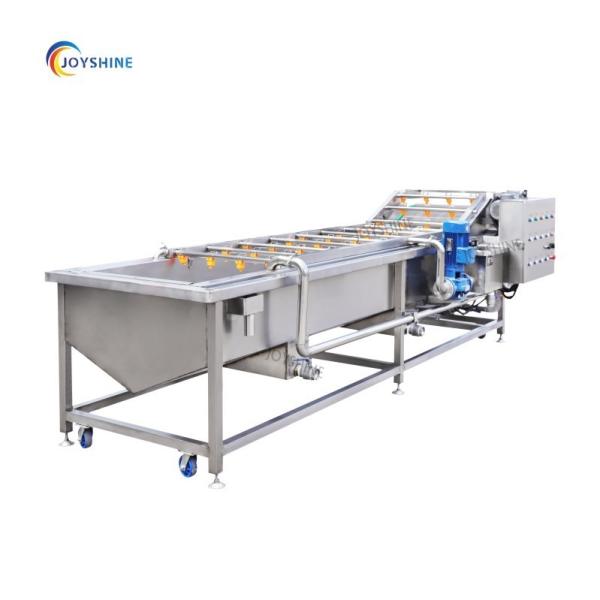

1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Specifications
Model Number :
JSQP-4000
Brand Name :
Joyshine
Place of Origin :
Shandong, China
Certification :
CE
Packaging Details :
Standard export wooden cases, or according to customer's demands.
Supply Ability :
50 Set/Sets per Month
Price :
$4,980.00/sets 1-2 sets
Condition :
New
Applicable Industries :
Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2019
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor, Pump
Voltage :
380v
Power :
6.6kw
Dimension(L*W*H) :
4000*1200*1300mm
Weight :
600kg
Warranty :
1 year
Application fields :
Snack food factory, Fruit processing plant, Vegetable processing plant, Frozen food Factory
Raw material :
Fruit, Vegetables, SUS304 stainless steel
Output product name :
Fruit and Vegtable
Key Selling Points :
Long Service Life
Name :
Bubble washing machine
Application :
Used to wash fruit, vegetable or fish, meat.
Motor quantity :
3 pcs
Advantage :
Can be customized according to customer's demands.
Washing type :
High Pressure Bubble Washing
Washing advantage :
Circulating Water
Keywords :
Leafy Vegetable Washer Machine
MOQ :
1 Set
Package :
Standard Wooden Case
After Warranty Service :
Video technical support, Online support
Local Service Location :
Egypt, Turkey, United Kingdom, Viet Nam, Philippines, Australia
Port :
Qingdao, Shanghai, Ningbo, Guangzhou, etc.
Description
Industrial large capacity 1000kg/h fruit washer machine for vegetable and fruit processing
This vegetable water bubble vegetables washing machine is designed and widely used in washing various fruits and vegetables with different shapes.
It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.
It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing

Working Principle:

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Features:
1
Equipped with a bubble generator to make the objects roll over
High pressure air bubble and spraying water can wash off dirt, sands and other residues
2
Equipped with VFD to better adjust the belt speed
3
Equipped with separate filter tank and water recycling system
4
Equipped with spraying section with clean water for twice washing
The objects are automatically conveyored to spraying section by the conveyor mesh belt
Advantages:
1
Food grade SUS304 stainless steel
2
High cleaning ability, high washing rate
3
Wide range application, suitable for many products
4
No damage to the products
OEM Service
According to the customers' special requirements, there are following optional configurations:
1
Ozone generator for sterilization and disinfection and decomposition of pesticide residues
2
Ultrasonic module through ultrasonic vibration to clean the products completely
3
Air fans to be added at the outlet for simple frying after washing
4
Lifting device can be added to life the mesh belt for easy cleaning of the tank
5
Any other functions you need, tell us freely, we will design special machine for you
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Detailed Images
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Spray Nozzle
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Overflow Gap
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Filter Tank
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Waste Water Outlet
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Twice Spraying Section
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Sealing Strips
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Control Panel
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Vortex Blower
Application
1000kg/H Large Capacity Bubble Wash Machine For Industrial Fruit And Vegetable Processing
Product Paramenters
Model
Dimension
Weight
Power
Capacity
JS-QP-2500
2500*1000*1300mm
400kg
4.45kw
500kg/h
JS-QP-3000
3000*1200*1300mm
600kg
5.25kw
800kg/h
JS-QP-4000
4000*1200*1300mm
700kg
6.6kw
1000kg/h
JS-QP-5000
5000*1200*1300mm
900kg
8.3kw
1500kg/h
JS-QP-6000
6000*1200*1300mm
1100kg
9.4kw
2000kg/h
OEM: Machine size, configuration and capacity etc can be customized according to your special requirements, Contact for more details please!

This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine
