110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Specifications
Place of Origin :
Henan, China
Brand Name :
JOYSHINE
Price :
$7,500.00/units >=1 units
Applicable Industries :
Hotels, Food & Beverage Factory, Farms, Home Use, Food Shop
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
2 years
Core Components :
PLC, Bearing
Voltage :
110v/220v/380v&customization
Power :
24kw
Weight :
800 KG
Dimension(L*W*H) :
4000*2500*3000mm
Year :
2019
Warranty :
2 years
Key Selling Points :
High Productivity
Product name :
plantain chips making machine line
Machine material :
food grade 304 stainless steel
Processing capacity :
20kg to up and customization
Working type :
semi automatic and full automatic
Heating method :
Electric or gas heating
Finished product :
banana chips/plantain chips
Frying temperature range :
0-300℃
Thickness of banana chips :
can adjust
Banana chips type :
round type or length type
Advantage :
continuous working
Description
Why Choose Us
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Products Description
Joyshine customized full automatic banana chips making machine plantain chips making machine line processing line
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Fully Automatic Frozen French Fries Production Process:
No.
Machine Name
Quantity
Power
Dimension
Material
1
PU Belt Elevating Conveyor
1 set
0.75kw
2400*700*1600mm
SUS304
2
Potato Washing & Peeling Machine
1 set
4.37kw
3400*1000*1400mm
SUS304
3
Picking Line
1 set
0.75kw
3000*700*900mm
SUS304
4
French Fries Cutting Machine
1 set
1.5kw
950*800*950mm
SUS304
5
Water Tank Elevator
1 set
0.75kw
2200*800*1600mm
SUS304
6
Fries Sorting Machine
1 set
2kw
2400*1000*1300mm
SUS304
7
Bubble Washing Machine
1 set
6kw
4000*1200*1400mm
SUS304
8
Continuous Blanching Machine
1 set
140kw
5000*1200*1400mm
SUS304
9
Vibrating Dewatering Machine
1 set
0.36kw
1800*1000*1300mm
SUS304
10
Air Drying Machine
1 set
7.5kw
4000*1000*1600mm
SUS304
11
Mesh Belt Elevating Conveyor
1 set
0.75kw
2000*800*1300mm
SUS304
12
Continuous Frying Machine
1 set
200kw
6000*1200*1400mm
SUS304
13
Vibrating Deoiling Machine
1 set
0.36kw
1800*1000*1300mm
SUS304
14
Cooling & Deoiling Machine
1 set
7.5kw
4000*1000*1600mm
SUS304
15
Mesh Belt Elevating Conveyor
1 set
0.75kw
2000*800*1300mm
SUS304
16
IQF Freezer Tunnel
1 set
90kw
11500*2200*2200mm
SUS304
17
Elevating Conveyor
1 set
1.1kw
3000*500*1400mm
SUS304
18
Automatic Packing Machine
1 set
6.7kw
5000*2000*3400mm
SUS304

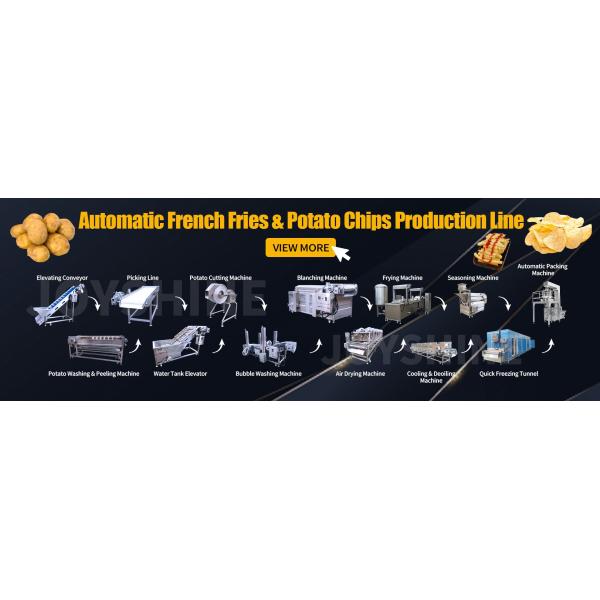

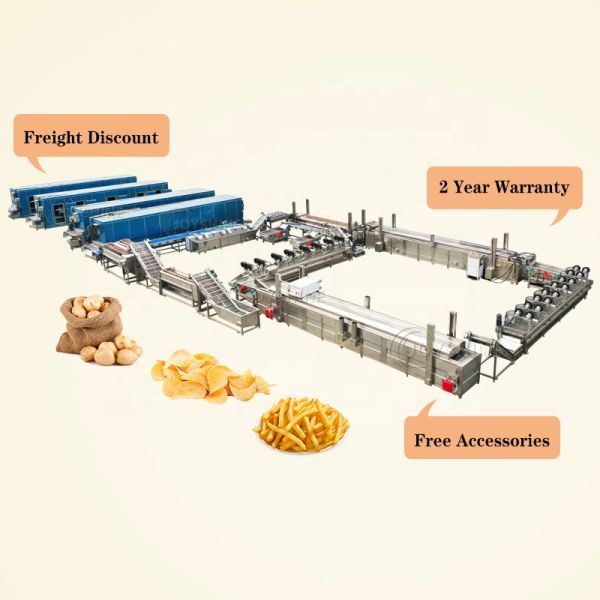

Fully-Automatic French Fries & Potato Chips Production Line
(Finished capacity, Heating source, Production process all can custom made.)
Detailed Description
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine

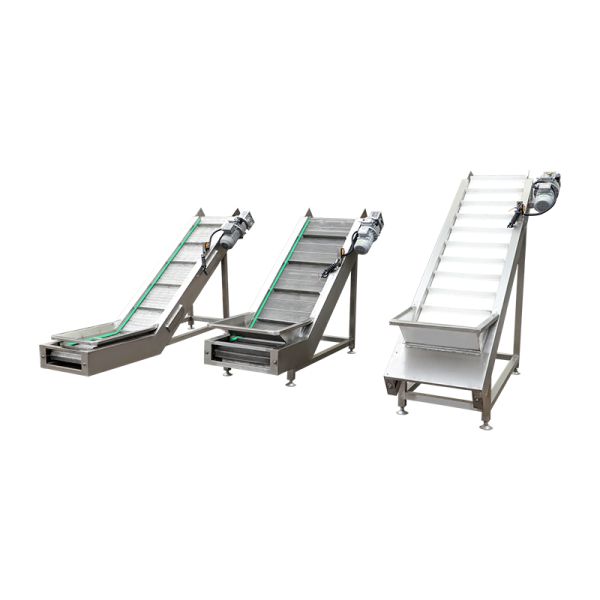

PU Belt Elevating Conveyor
1.For elevating and conveying fresh potatoes into the next washing peeling machine.
2.Transport materials instead of manpower.

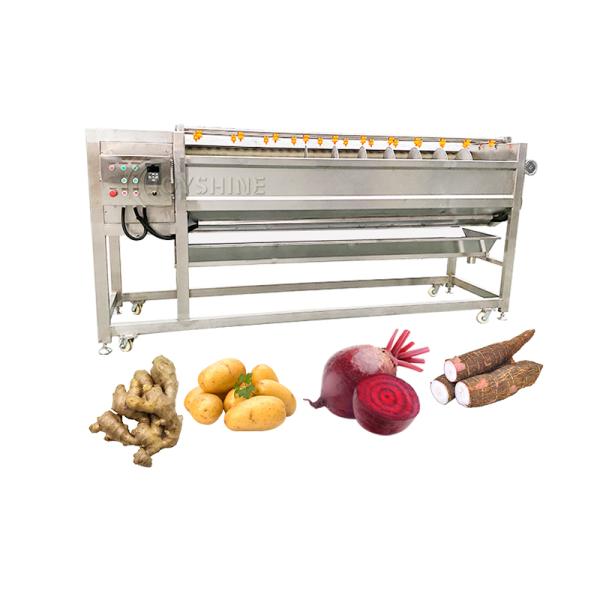

Potato Washing & Peeling Machine
1.Brush and round drum rollers to peel the potatoes thoroughly. 2.Spraying system to clean the potatoes. 3.Spiral design to make sure automatic discharging.
4.Thoroughly washing and peeling the potatoes
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Picking Line
1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
French Fries Cutting Machine
1.Good cutting effect, uniform size.
2.Cutting the potatoes into fries.
3.Custom blade for different sizes, from 7*7 to l2*12mm.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Water Tank Elvator
1.Water as buffer to prevent fries breakage, and simply removing starch. 2.Meanwhile elevating fries into next step.
Bubble Washing Machine
1.Through high pressure water flow and water bubbles to impact and scrub the fries to wash off the starch.
2.This machine is widely used forcleaning fruits and vegetables,etc.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine

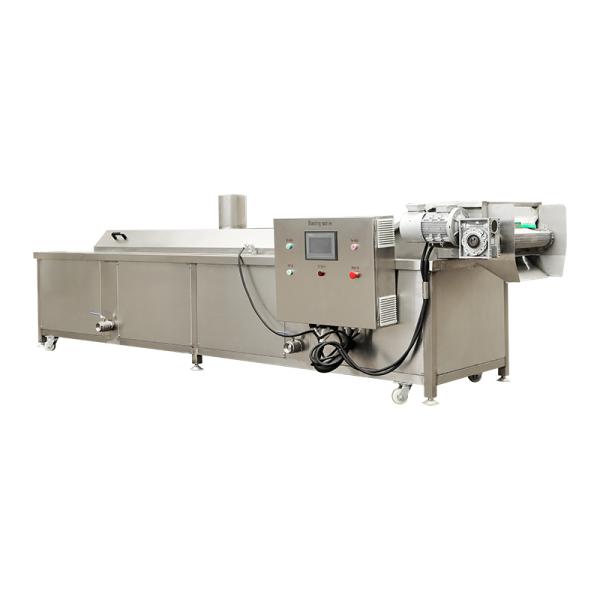

Continuous Blanching Machine
1.Through 60-95 degree hot water blanching to inhibit the activity of the enzyme and maintains the original vivid color of the fries.
2.Inhibit enzyme activity, avoid oxidation,
fix color, need additives, citric acid, etc.

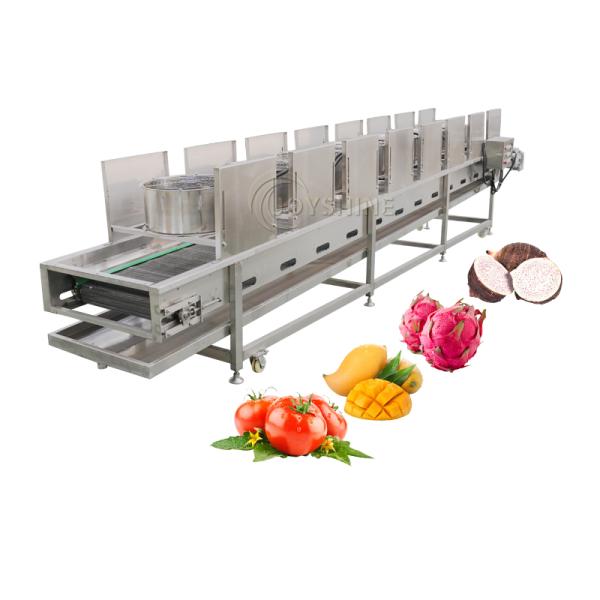

Air Drying Machine
1.Through high pressure wind blowing for pre-cooling and removing the excess water in short time, effectively prevent the fried oil jumped phenomenon.
2.Strong wind, remove moisture.Flip the mesh belt to dry both sides evenly.
3.The height of the fan can be adjusted.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Continuous Frying Machine
1.For quick frying the fries around 40 seconds in 180°oil to avoid the adhesion and extend the shelf life.
2.Half-fried French fries, also suitable for deep-frying all kinds of snacks PLC control, adjustable temperature.
Seasoning Machine
1.Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine. 2.PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Quick Freezing Tunnel
1.Through mechanical vibration and wind pressure, the fluidized quick freezer floats products on stainless steel mesh belt.
2.Frozen products and prevent adhesion, achieve IQF.

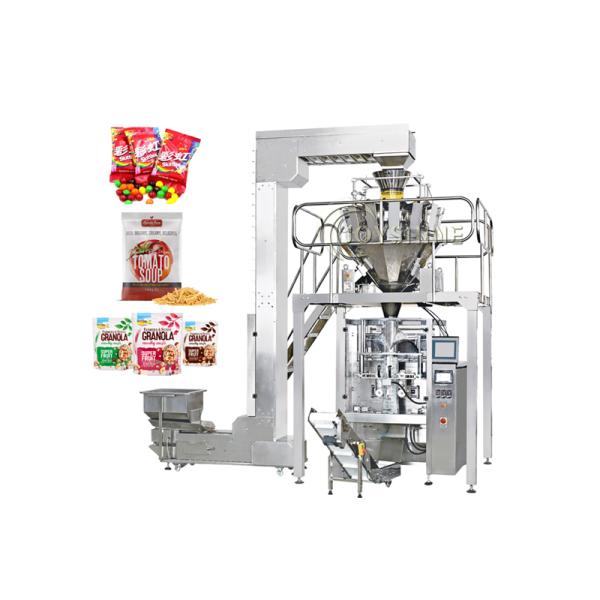

Automatic Packing Machine
1.For packing the finished frozen french fries.
2.10 heads, 14 heads.
Different models for your requirements.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
We can produce machines to make Potato chips, French fries, Banana chips/Plantain chips.

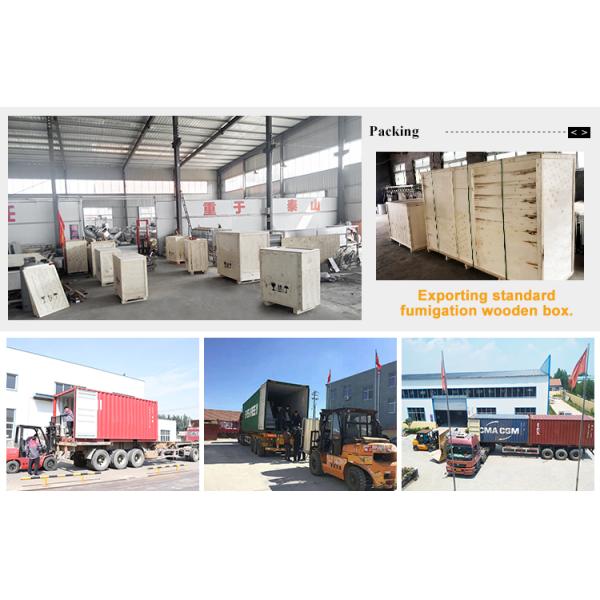

Packing & Delivery
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Shipping by sea or railway of LCL and FCL.
About Us
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine

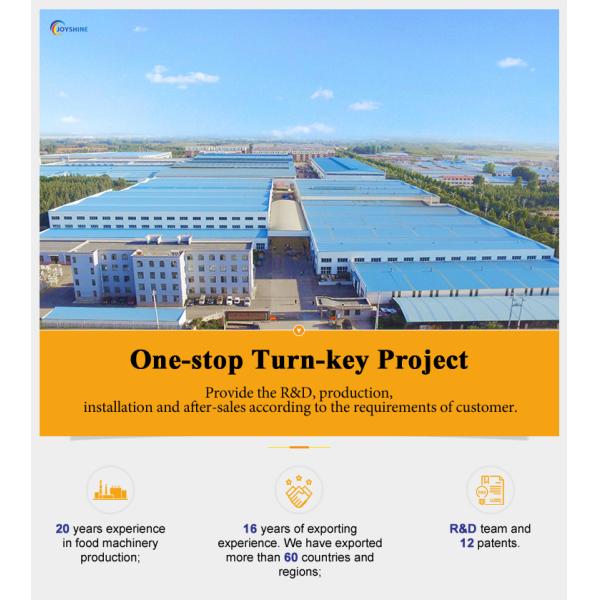

We can provide the one-stop turnkey project with the industry-leading technology and R&D team as the front-end, the production and processing team led by more than 10 years of skilled workers the mid-end, quality inspection with near-rigorous standards, and the on-site installation by professional after-sales team.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Facility: 12 sets of shearing equipment, 48 sets of argon arc welding auxiliary equipment, shearing machine, cutting machine, electric welding machine, gantry crane, drilling equipment. Scale: workshop 15000㎡, 10 production lines.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
We have more than 20 years of design and development team, 12 product patents and can be customized according to the needs of different customer
Certifications
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Our company regularly participates in international mechanical equipment exhibition, let more customers understand the company's product information and quality service, and with Europe, Asia, South America and other regions and countries to develop long-term service and cooperation.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
Our team is full of youth and passion for work, and we are capable of serving every customer well. Our company philosophy: to provide perfect product line, to provide every customer with quality service and long-term cooperation.
110V 220V 380V Banana Chips Maker Machine Plantain Chips Making Machine
FAQ
Heating method
Electricity heating or Gas heating.
Machines' Material
Food grade 304 stainless steel.
Voltage
Customize according to your city's voltage
Payment Tems
T/T,Alibaba Trade assurance,L/C,WU,PayPal,Alipay,WeChat Pay.
Transportation
Shipping by sea and railway.
Warranty
2 years
OEM
Customization of nameplate, material, slicing/cutting size, motor brand, packaging, etc.
