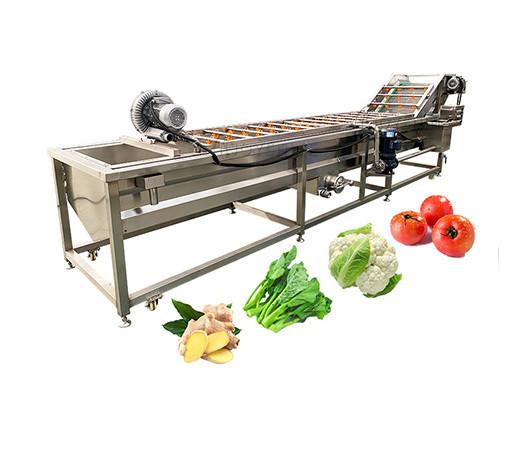

Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Specifications
Condition :
New
Applicable Industries :
Hotels, Machinery Repair Shops, Food & Beverage Factory, Food Shop, Food & Beverage Shops
Showroom Location :
None
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
Hot Product 2022
Warranty of core components :
1 Year
Core Components :
PLC, Bearing, Motor, Pump
Model Number :
JSQP4000
Brand Name :
Joyshine
Place of Origin :
Shandong, China
Voltage :
220v/380v
Power :
6.6kw
Dimension(L*W*H) :
4000*1200*1300mm
Weight :
300 KG
Warranty :
1 Year
Application fields :
Snack food factory, Fruit processing plant, Vegetable processing plant, Frozen food Factory
Machinery Function :
washing
Raw material :
Fruit, Vegetables, Soybean
Key Selling Points :
Long Service Life
Name :
Bubble Washing Machine
Function :
Multifunctional
Material :
SUS304 Stainless Steel
MOQ :
1set
Speed :
Frequency Converter
Package :
Standard Wooden Case
Working Principle :
Air Bubble Spray Washing Machine
Advantage :
Water Recycle
Feature :
Easy Operation
Processing Types :
Tomato Fruit Washing Machine
Packaging Details :
standard export wooden case
Port :
Qingdao or any seaport in China
Supply Ability :
30 Set/Sets per Month
Price :
$8,750.00/sets 1-2 sets
Description
Product Description

Highly Recommended Washing Machine For Kinds of Fruit and Vegetable

This fruit and vegetable washing machine is designed and widely used in washing various fruit and vegetable with different shapes.

It adopts the bubble surfing, brushing, spraying technology for maximize clean of the objects.

It is an indispensable washing device for the fruit and vegetable or seafood processing, and suitable for all kinds of processing scale enterprise.

Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic

Working Principle

This multifunctional bubble washing machine works through high pressure waterflow and water bubbles to impact and scrub the surface of the cleaned objects

Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic

Features:

1
Equipped with a bubble generator to make the objects roll over
High pressure air bubble and spraying water can wash off dirt, sands and other residues
2
Equipped with VFD to better adjust the belt speed
3
Equipped with separate filter tank and water recycling system
4
Equipped with spraying section with clean water for twice washing
The objects are automatically conveyored to spraying section by the conveyor mesh belt

Advantages:

1
Food grade SUS304 stainless steel
2
High cleaning ability, high washing rate
3
Wide range application, suitable for many products
4
No damage to the products
Optional Function

According to the customers' special requirements, there are following optional configurations

1
Ozone generator for sterilization and disinfection and decomposition of pesticide residues
2
Ultrasonic module through ultrasonic vibration to clean the products completely
3
Air fans to be added at the outlet for simple frying after washing
4
Lifting device can be added to life the mesh belt for easy cleaning of the tank
5
Any other functions you need, tell us freely, we will design special machine for you
Detailed Images
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Application
Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
Parameters
Model
Dimension
Weight
Power
Capacity
JS-QP-2500
2500*1000*1300mm
400kg
4.45kw
500kg/h
JS-QP-3000
3000*1200*1300mm
600kg
5.25kw
800kg/h
JS-QP-4000
4000*1200*1300mm
700kg
6.6kw
1000kg/h
JS-QP-5000
5000*1200*1300mm
900kg
8.3kw
1500kg/h
JS-QP-6000
6000*1200*1300mm
1100kg
9.4kw
2000kg/h

OEM: Machine size, configuration and capacity etc can be customized according to your special requirements


This bubble washing machine is widely used with other machines to combine one whole processing line, like vegetable cutting machine, brush polishing machine and air drying machine

Tomato Fruit Washing Machine with Lifting Function by Joyshine Ce Fully Automatic
