Specifications
Brand Name :
JOYSHING
Model Number :
U Glass JY-U01
Certification :
CE,ISO, CSi,SGCC
Place of Origin :
CHINA
MOQ :
1 wooden box
Price :
usd/1-999/sqm
Payment Terms :
T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability :
3000sqm/day
Delivery Time :
1-2weeks
Packaging Details :
wooden box
Name :
U-profile Glass
Model :
JY-U01
Size :
Custom Size
Glass thickness :
6mm 7mm 8mm
Glass Color :
clear, ultra clear, grey, green, blue, bronze
Shape :
Flat / Curved, customized
Glass Type :
Annealed or toughened laminated glass in Clear, Tinted, Reflective, Low Iron, Etched, Mirrored, Textured, Colorsmart,Thermocolour, screen printing, and Low E combinations
Warranty :
10 years
Project Solution :
Total solution for projects
Lead time :
15 working days
Description

Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass

Manufacturers supply U-profile glass, which can be produced in size, thickness, color, pattern and texture according to customer requirements. Provide glass deep processing and integrated solutions.

Joy Shing Glass Co., Ltd. was founded in 2013. We are integrated in producing, selling, service providing for all kinds of custom building glass like acid etched glass, low-e glass, mirror glass, tempered glass, laminated glass, insulated glass, AR coating glass, fire-rated glass, U channel glass, PDLC smart glass, etc. Our advantages are as below:

1. More than 10 years experiences on glass manufacturing and exporting
2. Advanced glass machines and technology
3. Excellent quality with very competitive price
4. Export to more 75 countries over 500 customers in the world
5. Customize all kinds of glass products for each client
6. Safety package and fast delivery
7. Have technical workers and professional sales team offer personalized and dedicated services


Specification

U-profile/Channel Glass Series K40Series K60Series
U-profile/Channel Glass Series P23/41/6 P26/41/6 P33/41/6 P50/41/6 P23/60/7 P26/60/7 P33/60/7
Face Width (w) mm 232mm 262mm 331mm 498mm 232mm 262mm 331mm
Face Width (w) inches 9-1/8" 10-5/16" 13-1/32" 19-5/8" 9-1/8" 10-5/16" 13-1/32"
Flange height (h) mm 41mm 41mm 41mm 41mm 60mm 60mm 60mm
Flange height (h) inches 1-5/8" 1-5/8" 1-5/8" 1-5/8" 2-3/8" 2-3/8" 2-3/8"
Glass thickness(t) mm 6mm 6mm 6mm 6mm 7mm 7mm 7mm
Glass thickness(t) inches .24" .24" .24" .24" .28" .28" .28"
Maximum Length(L) mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm 7000 mm
Maximum Length(L) inches 276" 276" 276" 276" 276" 276" 276"
Weight (single layer) KG/m2 19.43 18.94 18.16 16.94 25.43 24.5 23.43
Weight (single layer) lbs/sq ft. 3.98 3.88 3.72 3.47 5.21 5.02 4.8
Glass Textures Rough Cast Clear Ice Piccolo Low iron etc. 　

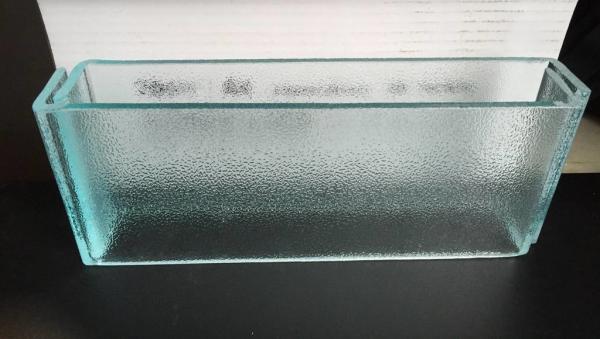

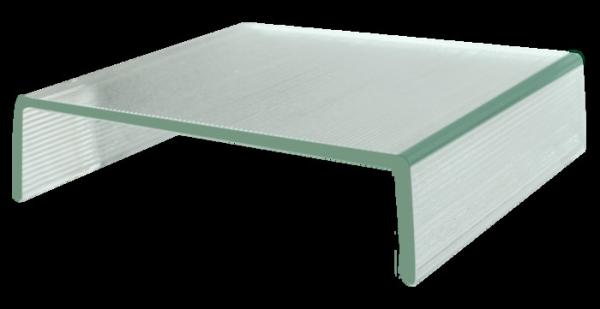

Product photo

Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
Ultra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered GlassUltra Clear U-profile Glass 6mm 7mm 8mm Low Iron U Channel Tempered Glass
FAQ
Q: What is the MOQ?
A: Generally, there is no MOQ for processed glass, but if you want to receive the best price, the bigger quantity, the better price.
Q: Can I have a small sample to verify the quality?
A: Sure, we welcome samples to be tested and checked for quality.
Q: Can I visit your factory?
A: Yes, we welcome all of the customers to visit our factory when you have real requirements, we will take you to each of our production lines, and discuss orders in our office.
Q: Do you offer a guarantee for the products?
A: Yes, generally, we offer 10 years warranty for processing glass based on your normal uses, we advise you use it in the right way can keep your product's service life a long time .
Q: How do you control the quality of your products?
A: We have standard management in the factory based on the ISO system, and train our staff regularly, our production department will choose high-quality materials for glass strictly, for finished excellent products. And we have QC for each process, once find any problem, we will replace the glass, to make sure every piece of glass go to the customer's warehouse is in good condition.
