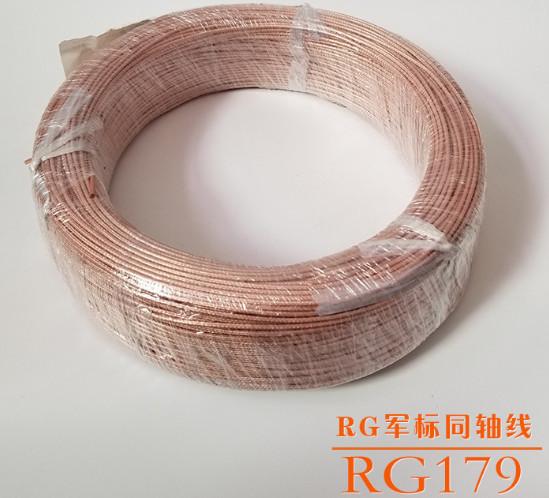

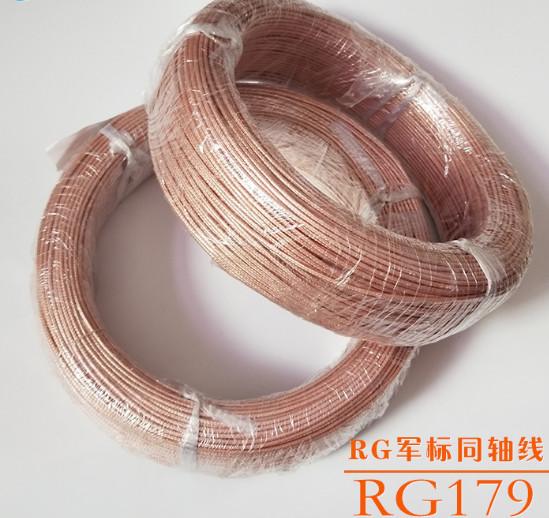

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
Specifications
Brand Name :
OEM
Model Number :
RG179
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
200m
Payment Terms :
T/T
Supply Ability :
1000000m/month
Delivery Time :
15-20 days
Packaging Details :
1000m/ctn
Material :
Brass
Impedance :
75ohm
Cable series :
RG179
Standard :
US miliary standard MIL-C-17
Jacket :
FEP
Length :
200m
Application :
CCTV,Telecommunication,Instrumentation,CCTV CAMERA,Radio Frequency
Usage :
TV,CCTV/satellite receiver/TV/Camera,satellite
Description

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

For more product informations, please contact our sales team to get details.

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Construction Specification RG179 coaxial cable
Material Diameter(mm)
Inner conductor Silver plated copper clad steel 7X0.1
Dielectric PTFE 1.6
Out conductor Silver plated copper braid 1.3
Jacket FEP 2.5

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Series No. Item RG178 RG179 RG316
1 Material of inner conductor Silver plated copper wire Silver plated copper wire Silver plated copper wire
2 structure of inner conductor 7/0.10 7/0.10 7/0.17
3 Material of insulator FEP FEP FEP
4 OD of insulator 0.86mm 1.6mm 1.5mm
5 Material of braid Silver plated copper wire Silver plated copper wire Silver plated copper wire
6 Density of braid ≥90% ≥90% ≥90%
7 Jacket FEP FEP FEP
8 OD of cable 1.8mm 2.5mm 2.5mm
9 Impedance 50Ω 75Ω 50Ω
Standard : MIL－C－17

Application

CCTV, Telecommunication
Instrumentation CCTV
Radio Frequency satellite receiver
TV satellite
Wifi route Military purpose
Camera High precision medical equipment
Smart robot Aero

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Assembly line

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Processing Equipments

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV cameraPigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Testing Equipments

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Packaging

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Products categories :

1. RF adapters (male to male, male to female, female to female)

2. RF connectors : Mini DIN 4.3-10, 4.1-9.5, DIN 7/16, N type, TNC, QMA, 1.0/2.3, SMA, SMB, SMZ, MCX, MMCX etc. for all kinds of RG401, RG402, RG405, RG174, RG178, RG179, RG316, RG142, RG58, RG59, RG223, RG213, RG214, LMR100, LMR195, LMR200, LMR240, LMR300, LMR400, LMR600, 3D-FB, 5D-FB, 7D-FB, 1/2", 1/4", 3/8", 7/8", 1-5/8" feeder cable, corrugated foam and superflex types.

3. Coaxial connectors : F Type, PAL(IEC), BNC, RCA, ( compression, crimp, PCB mount )

4. RF Attenuators

5. Lightening Arrestors

6. RF Cable Assebmlies (shrink tube and feeder cover-hot polyamide moulding )

7. Center Pin ( inner conductor )

8. Feeder Cables (Brand: Hansheng, Hengxing, Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.)

9. Antennas (ZTE, MOBI etc.)

10. IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.)

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera

Pigtail Cable RG179 coaxial cable 75 ohm military standard for CCTV camera
