Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Customized RF connector 4.3-10 male clamp type connector for 1/2 superflex cable low PIM VSWR 1.15 made by factory
Specifications
Brand Name :
OEM
Model Number :
4.3-10-J12SF
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
200pcs
Price :
USD 1.99/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
15-20 days
Packaging Details :
200pcs/CTN
Material :
Brass
VSWR :
1.15(0-6)GHz
Plating :
Tri-alloy
Impedance :
50ohm
PIM :
-160dBc
Description

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

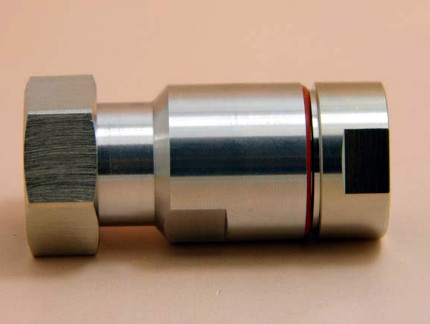

Customized RF connector 4.3-10 male clamp type connector for 1/2" superflex cable low PIM VSWR 1.15

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Note: These characteristics are typical but may not apply to all connectors.

Electrical

1 Characteristic Impedance 50ohm
2 Frequency Range DC-3GHz
3 VSWR (DC-6GHz)≤1.15
4 Dielectric withstanding voltage ≥2500RMS,50Hz,at sea level
5 Dielectric Resistance ≥5000MΩ
6 Contact Resistance Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ
7 Insert Loss ≤0.0.05dB
8 PIM ( @2-tonex20w) ≤-160dBC

Mechanical

Durability Mating cycles ≥500

Material and plating

Description Material Plating
1 Body Brass Tri-alloy
2 Insulator PTFE –
3 Center conductor Phosphor bronze Ag
4 Gasket Silicone rubber -
5 Other Brass Ni

Environmental

1 Temperature Range -40℃~+85℃
2 Watertightness IP67
3 Rosh-compliance Full ROHS compliance
4 Salt spraying test 96h

Assembly line for RF connectors and RF cable assembly

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Processing Equipments

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Customized RF connector 4.3-10 male clamp type connector for 1/2Customized RF connector 4.3-10 male clamp type connector for 1/2

Testing Equipments

Customized RF connector 4.3-10 male clamp type connector for 1/2

Packaging

Customized RF connector 4.3-10 male clamp type connector for 1/2

Products categories :

1. RF adapters (male to male, male to female, female to female)

2. RF connectors : Mini DIN 4.3-10, 4.1-9.5, DIN 7/16, N type, TNC, QMA, 1.0/2.3, SMA, SMB, SMZ, MCX, MMCX etc. for all kinds of RG401, RG402, RG405, RG174, RG178, RG179, RG316, RG142, RG58, RG59, RG223, RG213, RG214, LMR100, LMR195, LMR200, LMR240, LMR300, LMR400, LMR600, 3D-FB, 5D-FB, 7D-FB, 1/2", 1/4", 3/8", 7/8", 1-5/8" feeder cable, corrugated foam and superflex types.

3. Coaxial connectors : F Type, PAL(IEC), BNC, RCA, ( compression, crimp, PCB mount )

4. RF Attenuators

5. Lightening Arrestors

6. RF Cable Assebmlies (shrink tube and feeder cover-hot polyamide moulding )

7. Center Pin ( inner conductor )

8. Feeder Cables (Brand: Hansheng, Hengxing, Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.)

9. Antennas (ZTE, MOBI etc.)

10. IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.)

Customized RF connector 4.3-10 male clamp type connector for 1/2

Customized RF connector 4.3-10 male clamp type connector for 1/2
