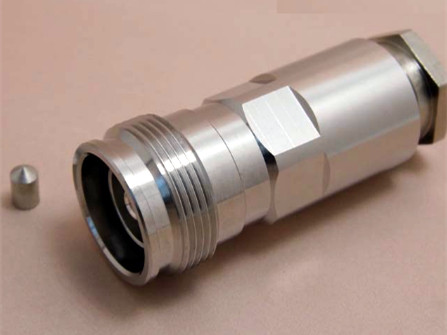

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory
Specifications
Brand Name :
OEM
Model Number :
4.3-10-K214
Certification :
ISO9001
Place of Origin :
Jiangsu,China
MOQ :
200pcs
Price :
USD 1.99/PCS
Payment Terms :
T/T
Supply Ability :
100000pcs/month
Delivery Time :
15-20 days
Packaging Details :
200pcs/CTN
Material :
Brass
VSWR :
1.15(0-6)GHz
Plating :
Tri-alloy
Impedance :
50ohm
PIM :
-160dBc
Description

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Note: These characteristics are typical but may not apply to all connectors.

Electrical

1 Characteristic Impedance 50ohm
2 Frequency Range DC-6GHz
3 VSWR (DC-6GHz)≤1.15
4 Dielectric withstanding voltage ≥2500RMS,50Hz,at sea level
5 Dielectric Resistance ≥5000MΩ
6 Contact Resistance Outer Contact≤1.0mΩ ;Center Contact≤1.0mΩ
7 Insert Loss ≤0.0.05dB
8 PIM ( @2-tonex20w) ≤-160dBC

Mechanical

Durability Mating cycles ≥500

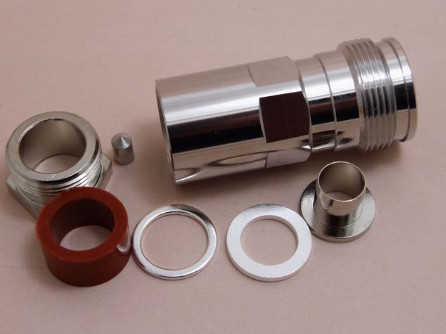

Material and plating

Description Material Plating
1 Body Brass Tri-alloy
2 Insulator PTFE –
3 Center conductor Phosphor bronze Ag
4 Gasket Silicone rubber -
5 Other Brass Ni

Environmental

1 Temperature Range -40℃~+85℃
2 Watertightness IP67
3 Rosh-compliance Full ROHS compliance
4 Salt spraying test 96h

Assembly line for RF connectors and RF cable assembly

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Processing Equipments

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factoryRF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Testing Equipments

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Packaging

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Products categories :

1. RF adapters (male to male, male to female, female to female)

2. RF connectors : Mini DIN 4.3-10, 4.1-9.5, DIN 7/16, N type, TNC, QMA, 1.0/2.3, SMA, SMB, SMZ, MCX, MMCX etc. for all kinds of RG401, RG402, RG405, RG174, RG178, RG179, RG316, RG142, RG58, RG59, RG223, RG213, RG214, LMR100, LMR195, LMR200, LMR240, LMR300, LMR400, LMR600, 3D-FB, 5D-FB, 7D-FB, 1/2", 1/4", 3/8", 7/8", 1-5/8" feeder cable, corrugated foam and superflex types.

3. Coaxial connectors : F Type, PAL(IEC), BNC, RCA, ( compression, crimp, PCB mount )

4. RF Attenuators

5. Lightening Arrestors

6. RF Cable Assebmlies (shrink tube and feeder cover-hot polyamide moulding )

7. Center Pin ( inner conductor )

8. Feeder Cables (Brand: Hansheng, Hengxing, Kingsignal etc, Type: 1/2", 1/2"SF, 7/8", RG59, RG6, RG174, LMR400 etc.)

9. Antennas (ZTE, MOBI etc.)

10. IBS products (splitter,coupler, combiner, 3M tape, cable clamp, Ground copper bar, Grounding kits, electric cabinet, Heat Shrink Sleeve etc.)

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

RF connector 4.3-10 female twist on clamp type connector for RG214 coaxial cable all brass 50ohm made by factory

Contact Us :

Sales Dept. : Carl Wu
E-mail : wubo@joytak.com
Skype : carl-wu1984
Mobile No. : +86-137 7536 7513
Wechat:

+86-137 7536 7513
