25m Industrial Laser Optical Distance Sensor Outdoor Of Car Distance Technology
25m Industrial Laser Optical Distance Sensor Outdoor Of Car Distance Technology
Specifications
Brand Name :
JRT
Model Number :
U85
Certification :
CE ,ISO9001,ROHS, FCC ,FDA.
Place of Origin :
Chengdu China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, Pay pal
Supply Ability :
10000 pcs/day
Delivery Time :
1-3 working days
Packaging Details :
neutro-packing
PRODUCT NAME :
Industrial Laser Distance Sensor Car Distance
ACCURACY :
+-1mm
size :
41*17*7mm Laser Distance Sensor Car Distance
Weight :
About 4g
Measuring Range :
0.03-15m
Voltage :
DC2V
Description

25m Optical Industrial Laser Distance Sensor Outdoor Of Car Distance Technology

Description:

25m Optical Industrial Laser Distance Sensor is designed for Outdoor Car Distance, the Industrial Laser Distance Sensor Technology belongs to one of Optical Distance Sensor. This Industrial Laser Distance Sensor widely used in Automation Monitoring Car Distance, suitable for short-distance up to 25m. In addition, this Industrial Laser Distance Sensor support Continuous Measurement function, conviently for monitoring solution etc. such as safety system, robot,elevator,drone smart measuring project ect.

Industrial Laser Distance Sensor Feature:

1. Good for Industrial laser distance sensor

2. Support single measurement/continous measurement

3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

Specifications of Industrial Laser Distance Sensor:

Brand Name JRT
Product Name Industrial Laser Distance Sensor
Model Number U85
Certification FDA/ISO9001/CE/ROHS/FCC
Place of Origin China
Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-25m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 620-690nm, <1mW

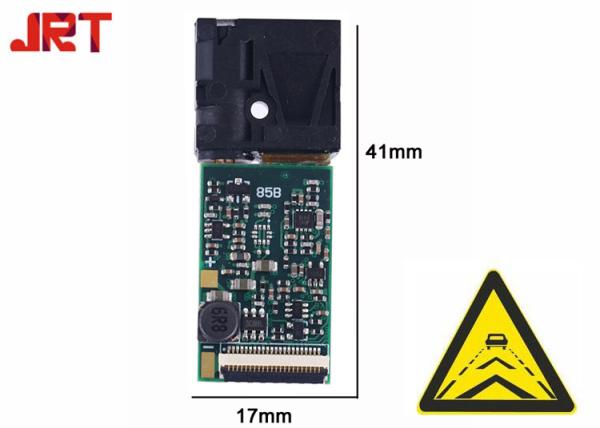

Size 41*17*7mm (±1 mm)
Weight About 4g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3HZ~8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)
Packaging Neutro-packing

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.

25m Industrial Laser Optical Distance Sensor Outdoor Of Car Distance Technology
