10m TTL Radar Truck Height Distance Measure Arduino Laser Distance Sensor Short Range
10m TTL Radar Truck Height Distance Measure Arduino Laser Distance Sensor Short Range
Specifications
Brand Name :
JRT
Model Number :
U85
Certification :
CE ,ISO9001,ROHS, FCC ,FDA.
Place of Origin :
Chengdu China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T, Western Union, Pay pal
Supply Ability :
10000 pcs/day
Delivery Time :
1-3 working days
Packaging Details :
neutro-packing
PRODUCT NAME :
Lidar Distance Sensor Short Range
ACCURACY :
+-1mm Lidar Distance Sensor
size :
41*17*7mm Lidar Distance Sensor Short Range
Weight :
About 4g
Measuring Range :
0.03-10m
Voltage :
DC2.0V
Description

10m TTL Radar Truck Height Distance Measure Lidar Distance Sensor Short Range

Description:

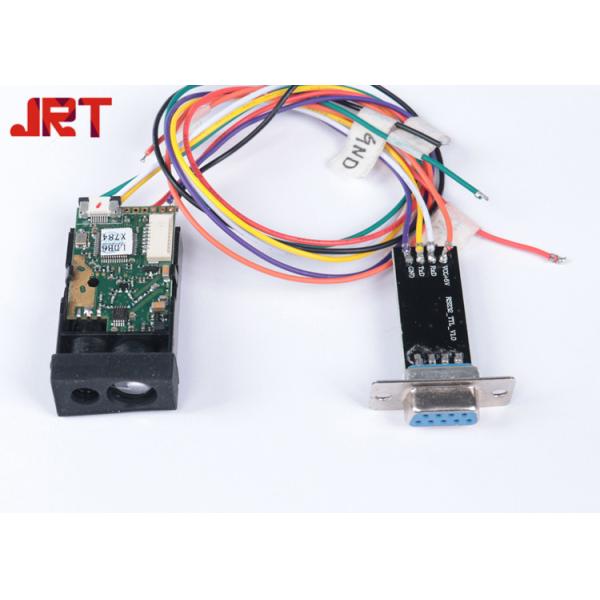

JRT Lidar Distance Sensor is one of our three sizes laser distance meter sensor, the Big size of Lidar Distance Sensor is 72x40x18mm,the middle size 45x25x12mm,the samllest size 41x17x7mm(the picture one), with accuracy +-1mm.
Usually our customers asked " it is possible to obtain technical documentation and, probably, technical development support, we would get two pairs of modules." That's no problem, we will give you technical support when you test our sensor. By the way, the middle size of 703A Lidar Distance Sensor can be used to oem 80m bilateral laser distance measurer solutions. Welcome to discuss more with us.

Lidar Distance Sensor Feature:

1. Good for Industrial laser distance sensor

2. Support single measurement/continous measurement

3. Data output: RXTX, USB, RS232, RS485, Bluetooth optional

Specifications of Industrial Laser Distance Sensor:

Brand Name JRT
Product Name Lidar Distance Sensor
Model Number U85
Certification FDA/ISO9001/CE/ROHS/FCC
Place of Origin China
Accuracy ±1 mm (0.04 inch)
Measuring Unit meter/inch/feet
Measuring Range (without Reflection) 0.03-10m
Measuring Time 0.125~4 seconds
Laser Class Class II
Laser Type 620-690nm, <1mW
Size 41*17*7mm (±1 mm)
Weight About 4g
Voltage DC2.0~3.3V
Electrical Level TTL/CMOS
Frequency 3HZ / 8Hz
Operating Temperature 0-40 ℃ (32-104 ℉ )
Storage Temperature -25~60 ℃ (-13~140 ℉)
Packaging Neutro-packing

1. Under bad measure condition, like environment with strong light or the diffuse reflectance of measuring point over-high or low, the accuracy would have bigger amount of error: ±1 mm+40PPM.

2. Under strong light or bad diffuse reflectance of target, please use a reflector.

3.120m,150m can be customized.

4. Voltage can be changed by power converter LDO

5. Frequency would be affected by environment.

6. Operating temperature -10 ℃~50 ℃ can be customized.

10m TTL Radar Truck Height Distance Measure Arduino Laser Distance Sensor Short Range
