24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
Specifications
Brand Name :
JSS
Model Number :
BLDC Motor
Certification :
CE
Place of Origin :
China
MOQ :
1pcs
Price :
USD20-90/pcs
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000pcs/month
Delivery Time :
5-20 working days
Packaging Details :
40pcs/carton
Phase :
3
Size :
42mm 57mm 86mm
Rated Torque :
0.1N.m-2.1N.m
Rated Speed :
Customized(Max to 10000rpm)
Rated Voltage :
Customized
Leading Wires :
8
Hall Sensor :
Yes
Insulation Class :
Class B
IP Class :
IP40
Description

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

BLDC motors are replacing classic DC motors and stepper motors in more and more applications. The BLDC motors from JSS are three-phase and have digital Hall sensors in the standard version, so that speed control is possible with simple servo controllers.

The most important features of JSS BLDC motors are:

high efficiency

low operating voltage: the windings of JSS BLDC motors are designed for low supply voltages

flange sizes available: Nema 17 (42mm), Nema 23 (57mm) and Nema 34 (86mm), can be customized

customization options: encoder, shaft , flange, insulation, bearing, environmental conditions

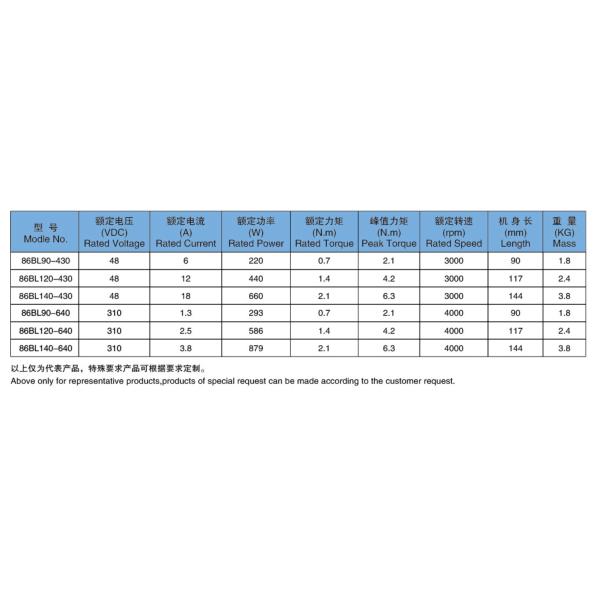

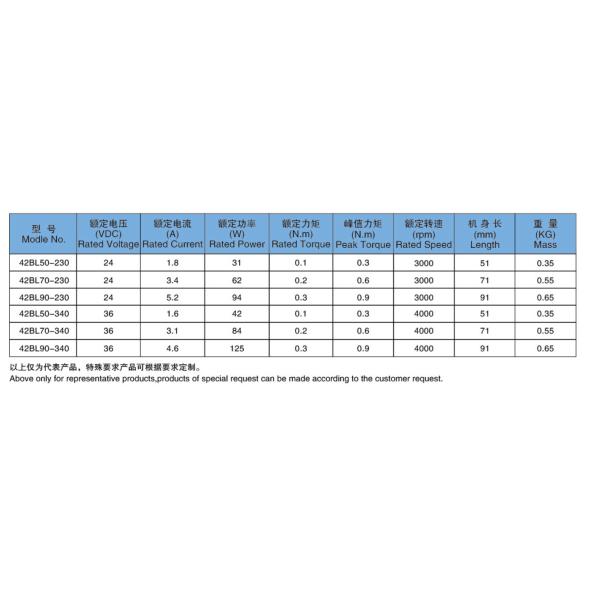

Electrical Specification

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

Markets

  • device, machine and plant manufacturing
  • tufting machines
  • labelling technology
  • post- and package handling
  • assembly automation

FAQ

1.Q:Can I get some samples first?
A:Sure, we are honored to offer you samples for your check.
2.Q:Do you have the products in stock?
A:Our products are manufactured according to your order except the normal products.
3.Q:What's the delivery time?
A:It usually takes about 7 working days, but the exact delivery time might be different for different order or at different time.
4.Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor

24V 36V 48V High Speed BLDC 100W 250W 500W Brushless Dc Motor
