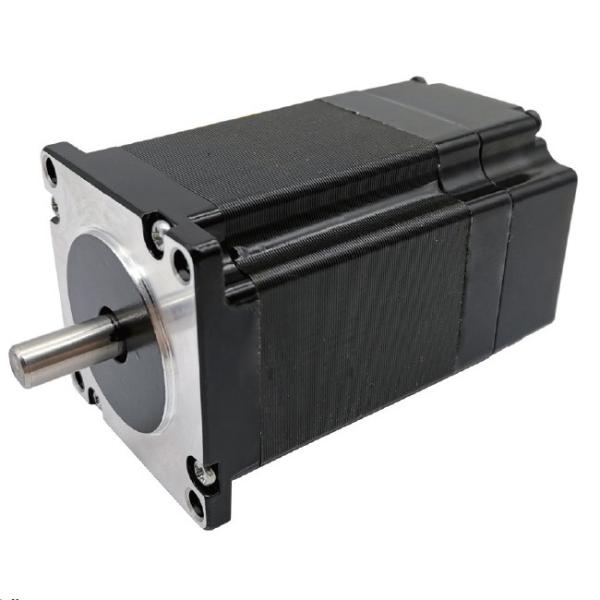

24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine
24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine
24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine
24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine
Specifications
Brand Name :
JSS-MOTOR
Model Number :
57BL80-230
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
bldc motor
frame size :
57*57mm
Rated Voltage :
24VDC
Rated Current :
6.9A
Rated Power :
125W
Rated Torque :
0.4N.m
Peak Current :
1.2N.m
Rated Speed :
3000RPM
Body Length :
80mm
Description

24VDC 3000RPM Brushless Dc Motor 57mm 125W For Textile Machine

Applications:

Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, etc.

Compared with brush motor, brushless dc motor are with advantages of low interference, high efficiency, low noise, long using life, and low cost.

57mm brushless dc motor:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.06mm/50g
End play 0.05mm/50g
Max radial force 28N/20mm from the flange
Max axial force 15N
Insulation class Class B
IP class IP40
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩmin 500VDC

Electrical Specification:

Model

Rated Voltage

(VDC)

 Rated Current (A) Rated Power (W) Rated Torque (N.m) Peak Torque (N.m) Rated Speed (RPM) Length(mm) Mass(kg)
57BL60-230 24 3.4 62 0.2 0.6 3000 60 0.65
57BL80-230 24 6.9 125 0.4 1.2 3000 81 0.85
57BL100-230 24 10.4 188 0.6 1.8 3000 102 1.1
57BL60-340 36 3.1 84 0.2 0.6 4000 60 0.65
57BL80-340 36 6.2 167 0.4 1.2 4000 81 0.85
57BL100-340 36 9.3 251 0.6 1.8 4000 102 1.1

Electrical Connection:

Lead No. Lead color Lead gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/22AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Diagram:

24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine

24v 3000rpm Bldc Motor 125W 7a 57mm For Textile Machine
