48V 500 Watt Bldc Motor 80mm Flange 3000rpm
48V 500 Watt Bldc Motor 80mm Flange 3000rpm
48V 500 Watt Bldc Motor 80mm Flange 3000rpm
48V 500 Watt Bldc Motor 80mm Flange 3000rpm
Specifications
Brand Name :
JSS
Model Number :
80BL145-430
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs/day
Delivery Time :
25days
Packaging Details :
Cartoon box
Name :
Brushless Dc Motor
Rated Voltage :
48VDC
Rated Current :
14
Rated power :
502W
Rated torque :
1.6N.M
Peak torque :
34.8N.M
Rated Speed :
3000rpm
Motor Length :
145MM
Motor Weight :
2.5Kg
Type :
Brushless DC Motor
Application :
Home application
Description
Industrial Brushless Dc Motor Flange 80mm 500W 48Vdc 3000rpm
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.02mm/50g
End play 0.08mm/50g
Max radial force 220N/20mm from the flange
Max axial force 60N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Phase No. Rated Voltage (VDC) Rated Speed (RPM)

Rated

Current

(A)

 Rated Torque (N.m) Rated Power (W) Mass (Kg) Body Length (mm)
80BL100-430 3 48 3000 7 0.8 251 1.6 105
80BL120-430 3 48 3000 10.5 1.2 377 2.5 125
80BL145-430 3 48 3000 14 1.6 502 3.0 145

Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Wiring diagram:

48V 500 Watt Bldc Motor 80mm Flange 3000rpm

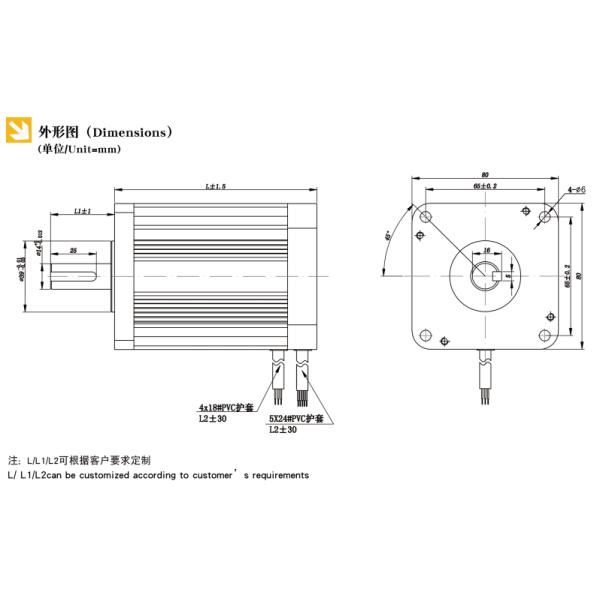

Dimensions:

(Unit=mm)

48V 500 Watt Bldc Motor 80mm Flange 3000rpm
