86mm 4000rpm Brushless Dc Motor 800w 310V
86mm 4000rpm Brushless Dc Motor 800w 310V
86mm 4000rpm Brushless Dc Motor 800w 310V
86mm 4000rpm Brushless Dc Motor 800w 310V
Specifications
Brand Name :
JSS
Model Number :
86BL140-640
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs/week
Delivery Time :
25days
Packaging Details :
Cartoon box
Name :
86MM Brushless Dc Motor
Rated Voltage :
310VDC
Rated Current :
3.8A
Rated power :
879W
Rated torque :
2.1N.M
Peak torque :
6.3N.M
Rated Speed :
4000rpm
Motor Length :
144MM
Motor Weight :
3.8Kg
Type :
Brushless DC Motor
Application :
Home application
Description
86mm Brushless Dc Motor Flange 800W 310Vdc 4000rpm High Rpm Brushless Dc Motor

Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

Our products are exported to all over the world, including Europe, South America, North America, Africa, Southeast Asia, etc.

We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance.

On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by JSS people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and abroad in the near future.

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.02mm/50g
End play 0.08mm/50g
Max radial force 220N/20mm from the flange
Max axial force 60N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Rated Voltage(VDC) Rated Current(A) Rated Power(W) Rated Torque(N.m) Peak Torque(N.m) Rated Speed(rpm) Length(mm) Mass(kg)
86BL90-640 310 1.3 293 0.7 2.1 4000 90 1.8
86BL120-640 310 2.5 586 1.4 4.2 4000 117 2.4
86BL140-640 310 3.8 879 2.1 6.3 4000 144 3.8


Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Wiring diagram:

86mm 4000rpm Brushless Dc Motor 800w 310V

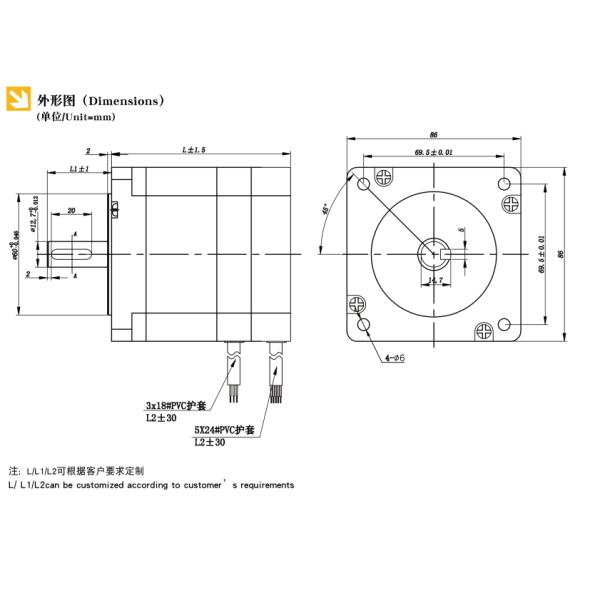

Dimensions:

(Unit=mm)

86mm 4000rpm Brushless Dc Motor 800w 310V

86mm 4000rpm Brushless Dc Motor 800w 310V
