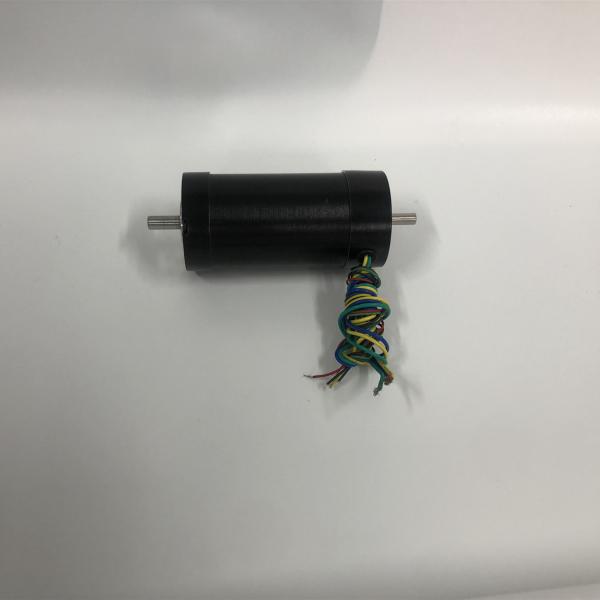

80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument
Specifications
Brand Name :
JSS
Model Number :
JSS80BL145-640
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
USD$57.4~63.4/pcs
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
AVG cars 80mm 669W 4000rpm 220VAC input voltage rated speed brushless dc motor with CE certificated
Rated Voltage :
310VDC
Rated Current :
2.9A
Rated power :
669W
Rated torque :
1.6N.M
Peak torque :
4.8N.M
Rated Speed :
4000rpm
Motor Length :
145MM
Motor Weight :
3Kg
Color :
Customer-made
Description

CE 80mm brushless dc motor 669W 4000rpm 220VAC with for medical instrument

Product Description

80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.03mm
Radial play 0.03mm/50g
End play 0.03mm/50g
Max radial force 35N/20mm from the flange
Max axial force 30N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Phase No. Rated Voltage (VDC) Rated Speed (RPM) Rated Torque (N.m) Rated Power (W) Mass (Kg) Body Length (mm)
DW90BLDC73-48200 3 48 3000 0.67 200 2.10 73
DW90BLDC103-48400 3 48 3000 1.34 400 3.30 103
DW90BLDC103-48401 3 48 3000 2.01 600 4.50 133

Dimensions:

(Unit=mm)

Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument

.

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

80mm Brushless Dc Motor 220V 4000rpm 669W For Medical Instrument

Certifications:
