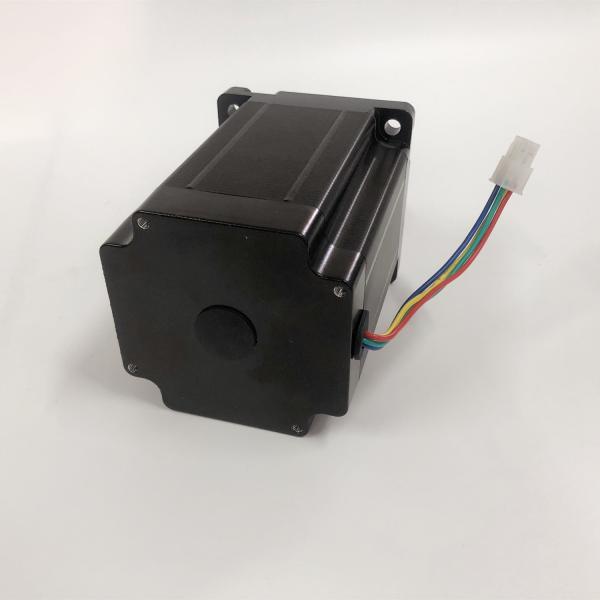

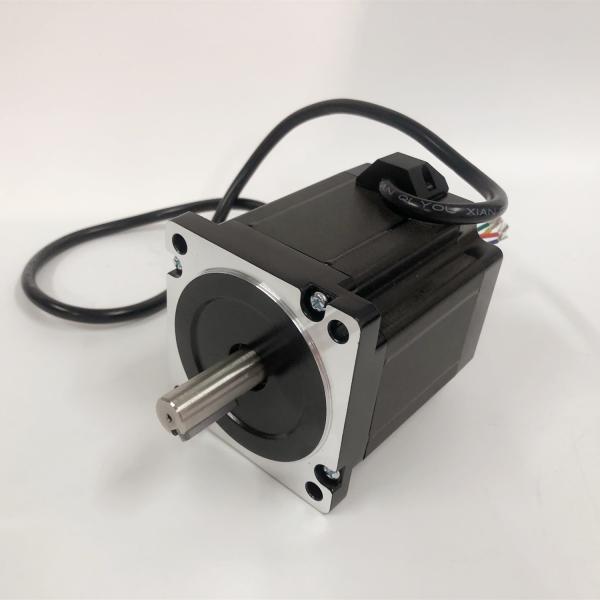

High Power Brushless Dc Electric Motor 2000rpm 310VDC 8NM Medical Equipment
High Power Brushless Dc Electric Motor 2000rpm 310VDC 8NM Medical Equipment
High Power Brushless Dc Electric Motor 2000rpm 310VDC 8NM Medical Equipment
High Power Brushless Dc Electric Motor 2000rpm 310VDC 8NM Medical Equipment
Specifications
Brand Name :
JSS
Model Number :
JSS110BL180-620
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
800pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
BLDC motor
Rated Voltage :
310VDC
Rated Current(A) :
7.2
Rated power(W) :
1673W
Rated torque(N.M) :
8N.M
Peak torque(N.M) :
24N.M
Rated Speed(rpm) :
2000rpm
Motor Length(mm) :
180MM
Motor Weight(kg) :
10.5Kg
Color :
Customer-made
Description
AVG car motor brushless dc motor 110mm 310VDC 1255W 6N.M 2000rpm
Product Description

Company informations:

Changzhou Jinsanshi Mechatronics Co. Ltd. is a comprehensive company which specializes in producing and researching stepper motor and motor driver. Our company is located in Changzhou city, Jiangsu province, China. We own an excellent group with rich experience in manufacturing and researching. In this field, we have rich experience, so that we can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

We have pass ISO9001:2008, and have got the certification of CE. On the way of development, the principle of "efficiency is the life, quality is the fundamental" is always insisted by Jinsanshi people. We take the market as guidance, provide high quality products and good service to customers. We are expecting the cooperation with more friends from home and aboard in the near future.

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.02mm/450g
End play 0.08mm/450g
Max radial force 600N/20mm from the flange
Max axial force 180N
Insulation class Class B
IP class IP 40
Dielectric strength 1500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Phase No. Rated Voltage (VDC) Rated Speed (RPM)

Rated

Current

(A)

 Rated Torque (N.m) Peak Torque
(N.M)		 Rated Power (W) Mass (Kg) Body Length (mm)
110BL140-620 3 310 2000 3.6 4 12 836 7.5 140
110BL165-620 3 310 2000 5.4 6 18 1255 9.5 165
110BL180-620 3 310 2000 7.2 8 24 1673 10.5 180
110BL140-630 3 310 3000 5.4 4 12 1250 7.5 140

Dimensions:

(Unit=mm)

Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Our Services

Different specification of stepper motor with competitive price for your choice:

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirement..

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Certifications:
