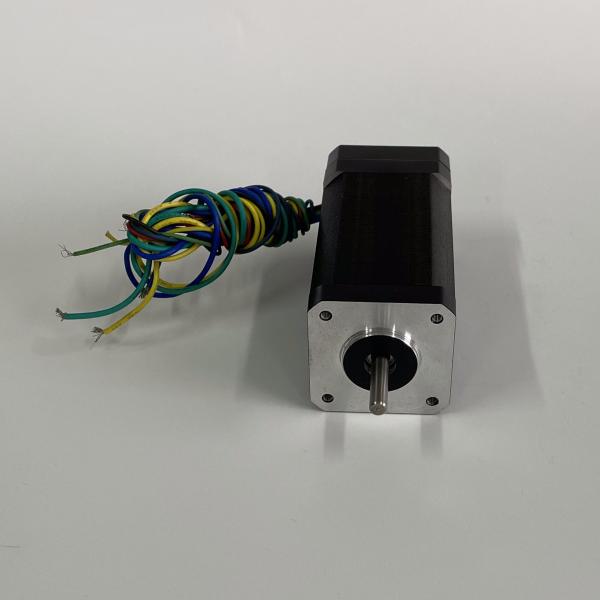

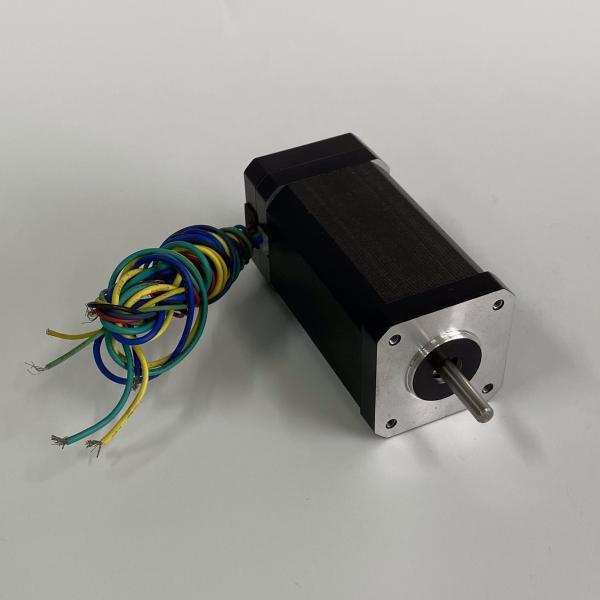

42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment
42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment
42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment
42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment
Specifications
Brand Name :
JSS-MOTOR
Model Number :
42BL70-230
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
brushless dc motor
frame size :
42*42mm
Rated Voltage :
24VDC
Rated Current :
3.4A
Rated Power :
62W
Rated Torque :
0.2N.m
Peak Current :
0.6N.m
Rated Speed :
3000RPM
Body Length :
70mm
Description

42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment

Brushless dc motor features:

Low interference

High efficiency

Low noise

Long using life

Low cost

Applications:

Brushless dc motor are widely used in textile machine, medical equipment, CNC, industrial automation, laboratory instrument, packing machine, etc.

We are a comprehensive company which specializes in producing and researching stepper motor and motor driver, closed loop stepper motor, step servo motor, brushless dc motor, brushless dc driver, spindle motor. Our company is located in Changzhou city, Jiangsu province, China. We have an excellent group with rich experience in manufacturing and researching. We can solve the actual using problems for customers. Our products are highly commended by customers because of its easy operation, long using life, stable performance, low failure rate and high technical content.

42mm brushless dc motor:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.06mm/50g
End play 0.05mm/50g
Max radial force 28N/20mm from the flange
Max axial force 15N
Insulation class Class B
IP class IP40
Dielectric strength 500VDC for one minute
Insulation resistance 100MΩmin 500VDC

Electrical Specification:

Model Rated Voltage(VDC) Rated Current(A) Rated Power(W) Rated Torque(N.m) Peak Torque(N.m) Rated Speed(RPM) Length(mm) Mass(kg)
42BL50-230 24 1.8 31 0.1 0.3 3000 51 0.35
42BL70-230 24 3.4 62 0.2 0.6 3000 71 0.55
42BL90-230 24 5.2 94 0.3 0.9 3000 91 0.65
42BL50-340 36 1.6 42 0.1 0.3 4000 51 0.35
42BL70-340 36 3.1 84 0.2 0.6 4000 71 0.55
42BL90-340 36 4.6 125 0.3 0.9 4000 91 0.65

Electrical Connection:

Lead No. Lead color Lead gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/22AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Diagram:

42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment

42mm 3000RPM Bldc Motor 24VDC 60W 0.2N.M For Medical Equipment
