Two Phase Nema 23 Stepper Motor For Cnc 3N.M
Two Phase Nema 23 Stepper Motor For Cnc 3N.M
Two Phase Nema 23 Stepper Motor For Cnc 3N.M
Two Phase Nema 23 Stepper Motor For Cnc 3N.M
Specifications
Brand Name :
JSS
Model Number :
JSS57HS112-3004A08-D21
Certification :
CE
Place of Origin :
China
MOQ :
10
Price :
USD$16.2~18
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
800pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
China two phase nema23 3N.M holding torque stepping motor for CNC
Step Angle :
1.8degree
Rated voltage :
3.9V
Rated Current :
3A
Phase Resistance :
1.3
Phase Inductance :
6.5mH
Holding torque :
3N.M
Motor Length :
112mm
Lead Wires No. :
4
Motor Weight :
1.7Kg
Description
Product Description

China Two Phase Nema23 3N.M Holding torque Stepping Motor For CNC

General specification:

Step Angle 1.8°
Temperature Rise 80℃ Max
Ambient Temperature -20℃ Max∼+50℃
Insulation Resistance 100M ΩMin.,500VDC
Dielectric Strength 500VAC for 1 minute
Shaft Radial Play 0.02Max (450g-load)
Shaft Axial Play 0.08Max (450g-load)
Max. Radial Force 75N (20mm from the flange)
Max. Asial Force 15N

Electrical Specification:

Model No.

Step Angle

(°)

 Voltage /Phase (V) Current /Phase (A)

Resistance /Phase

(Ω)

 Inductance Phase (mH) Holding Torque (kg.cm) Detent Torque (g.cm.Max) Rotor Inertia (g.cm²) Motor Length (mm) Lead Wires No. Motor Weight (kg)
57HS41-2004 1.8 2 2 1 1.2 3.2 210 120 41 4 0.45
57HS41-1004 1.8 5.4 1 5.4 9.5 5.5 210 120 41 4 0.45
57HS41-2004 1.8 2 2 1 2.2 5 210 120 41 4 0.45
57HS51-1504 1.8 2.4 1.5 1.6 3.8 8.2 360 275 51 4 0.65
57HS51-2004 1.8 2.4 2 1.2 3 9 360 275 51 4 0.65
57HS51-2006 1.8 2 2 1 1.6 7 360 275 51 6 0.65
57HS56-1504 1.8 5.7 1.5 3.8 12 13.5 400 300 56 4 0.7
57HS56-3004 1.8 2.85 3 0.95 2.8 12 400 300 56 4 0.7
57HS56-2006 1.8 3.6 2 1.8 2.8 9 400 300 56 6 0.7
57HS64-3004 1.8 3.9 3 1.3 2.2 15 500 380 64 4 0.8
57HS76-2004 1.8 8.6 2 4.3 16.2 24 680 480 76 4 1
57HS76-3004 1.8 2.7 3 0.9 3.5 20 680 480 76 4 1
57HS76-4004 1.8 2.4 4 0.6 2.2 20 680 480 76 4 1
57HS82-3004 1.8 4.2 3 1.4 5 22 700 510 82 4 1.2
57HS82-4004 1.8 3 4 0.75 3.5 20 700 510 82 4 1.2
57HS100-3004 1.8 3 3 1 4.5 25 1000 680 100 4 1.4
57HS112-3004 1.8 3.9 3 1.3 6.5 30 1200 800 112 4 1.7
57HS112-3504 1.8 2.45 3.5 0.7 3 28 1200 800 112 4 1.7

Dimensions: Wiring Diagram:

(Unit=mm)

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

L1 and L2 can be customized according to customers' requirements.

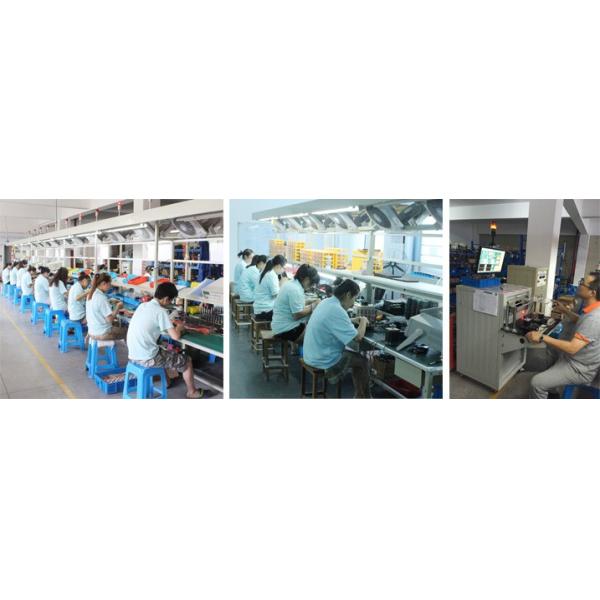

Production process

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

Our Services

Different specification of stepper motor with competitive price for your choice:

A wide range of application:

Our stepper motor are widely used in engraving machine, cutting plotter, textile machine, 3D printer, medical devices, stage lighting equipment, robot, CNC machine, music fountain and other industrial automatic equipment.

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

First-class service:

customization and OEM is available.

Warranty: 12 months

Contact Us: We 24 hours service for you! If you have any questions about our products, pleasee contact us without any hestation. It's a pleasure to serve you.

Contact me :

WhatsApp: +86 18306110590

Phone: +86 18306110590

Packaging & Shipping

We have standard package for our products. We can also make it as per your special requirements.

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

Shipping can be arranged as per your requirements. Air and sea transportation are both acceptabel.

Company Information

Changzhou JianSanShi Mechatronics Co., Ltd, located in Changzhou city, Jiangsu Province, has been specilized in the field of exporting stepper motor, motor driver, BLDC motor and PM motor for several years. We have two our own production base and a strong R&D team.

Till now, JSS has a variouty of specifications of hybrid stepper motors, and different linear stepper motor, geared stepper motor, stepper motor with brake. Because of its long working life, stable performance and low failure rate, our products are well received by customers. We have got the certification of CE, RoHS and ISO9001:2008.

If you are interested in any of our products, please feel free to visit our website and contact us directly for more informations. We are looking forward to cooperate with you!

Certifications:

Two Phase Nema 23 Stepper Motor For Cnc 3N.M

Contact Informations:

Changzhou JianSanShi Mechatronics Co., Ltd

Website: www.jss-motor.com

Address: Dai Luo Road 135,Luoyang Town, Wujin District, Changzhou City, Jiangsu Province, China

FAQ

1.Q:Can I get some samples first?

A:Sure, we are honored to offer you samples for your check.

2.Q:Do you have the products in stock?

A:Our products are manufactured according to your order except the normal products.

3.Q:What's the delivery time?

A:It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.

4.Q: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production. Every product will be fully assembled and carefully tested before packed.

5.Q:What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
