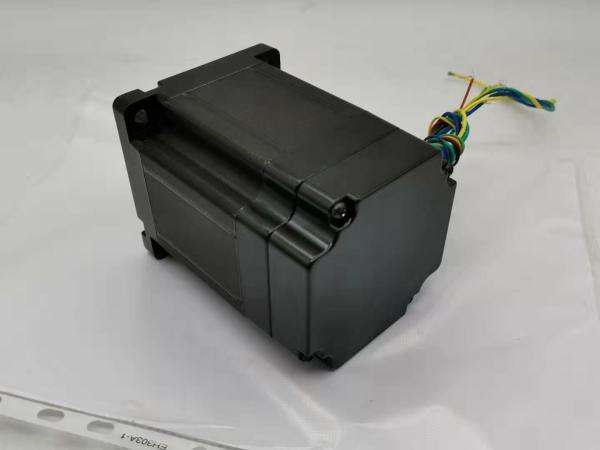

250 w brushless dc motor 36V 4000rpm 57mm Flange Square shape
250 w brushless dc motor 36V 4000rpm 57mm Flange Square shape
Specifications
Brand Name :
JSS
Model Number :
57BL100-340
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
2000pcs/week
Delivery Time :
25days
Packaging Details :
Cartoon box
Name :
57MM Brushless Dc Motor
Rated Voltage :
36VDC
Rated Current :
9.3A
Rated power :
251W
Rated torque :
0.6N.M
Peak torque :
1.8N.M
Rated Speed :
4000rpm
Motor Length :
102MM
Motor Weight :
1.1Kg
Type :
Brushless DC Motor
Application :
Textile Machine Field
Description
Industrial 57mm Brushless Dc Motor Flange 36V 4000rpm Square Shape 250W
Changzhou Jinsanshi Mechatronics Co. Ltd. is located in Changzhou city, Jiangsu province, China. We are a comprehensive company which specializes in producing and researching motors and drivers. Our main products include hybrid step motor, and step driver, step servo motor and driver, integrated step servo motor, linear stepper motor, geared stepper motor, stepper motor with brake, brushless dc motor. And we are always researching and developing new products.

our main products:

hybrid stepper motor and drives

Brushless DC motor and drives

planetary gearbox

AC servo motor

Spindle motor

Linear guide and its pairs

Ball screw and its pairs

General specification:

Item Specification
Widing type Star/Delta
Hall effect angle 120 degree electrice angle
Shaft runout 0.025mm
Radial play 0.02mm/50g
End play 0.08mm/50g
Max radial force 75N/20mm from the flange
Max axial force 15N
Insulation class Class B
IP class IP 40
Dielectric strength 500VDC for one minute
Insulation Resistance 100MΩmin 500VDC

Electrical Specification:

Model Rated Voltage Rated Current Rated Power Rated Torque Peak Torque Rated Speed Length Mass
(VDC) (A) (W) (N.m) (N.m) (RPM) (mm) (kg)
57BL60-230 24 3.4 62 0.2 0.6 3000 60 0.65
57BL80-230 24 6.9 125 0.4 1.2 3000 81 0.85
57BL100-230 24 10.4 188 0.6 1.8 3000 102 1.1
57BL60-340 36 3.1 84 0.2 0.6 4000 60 0.65
57BL80-340 36 6.2 167 0.4 1.2 4000 81 0.85
57BL100-340 36 9.3 251 0.6 1.8 4000 102 1.1


Electrical Connection:

Lead No. Lead Color Lead Gauge Function Description
1 Red UL3266/28AWG VCC+5VDC SUPPLY VOLTAGE FOR HALL SENSORS
2 Black GND GROUND FOR HALL SENSORS
3 Yellow HALL A SIGNAL OF HALL A
4 Green HALL B SIGNAL OF HALL B
5 Blue UL3266/20AWG HALL C SIGNAL OF HALL C
1 Yellow PHASE U MOTOR PHASE U
2 Green PHASE V MOTOR PHASE V
3 Blue PHASE W MOTOR PHASE W

Wiring diagram:

250 w brushless dc motor 36V 4000rpm 57mm Flange Square shape

Dimensions:

(Unit=mm)

250 w brushless dc motor 36V 4000rpm 57mm Flange Square shape

250 w brushless dc motor 36V 4000rpm 57mm Flange Square shape
