Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm
Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm
Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm
Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm
Specifications
Brand Name :
JSS-MOTOR
Model Number :
60DNMA2-0D40DKAM + EPS-B1-0D40AA-A000
Certification :
CE, ISO9001
Place of Origin :
CHINA
MOQ :
1PCS
Price :
negotable
Payment Terms :
T/T, Western Union，credit card, paypal
Supply Ability :
30000pcs/month
Delivery Time :
1-15days
Packaging Details :
cartons
Name :
AC servo motor
Voltage :
220VAC
Rated Power :
400W
Rated Current :
2.9A
Max Current :
9A
Rated torque :
1.27N.m
Rated Speed :
3000RPM
Max Speed :
5000RPM
Description

60mm 400W 220V AC servo motor 3000RPM 1.27N.m 5000 lines encoder

Faster, more reliable, more accurate

AC servo motor and servo driver

Main features:

Shortened positioning time

Quick instruction tracking

Response frequency up to 1KHZ bandwidth

Built-in RS485 conmmunication.

3-times overload

Grade 2 notch functions

Regenerative function

Built-in dynamic brakes (optional)

Encoder 5000 lines

Load inertia detection

Fully closed loop fuction

Specifications:

power driver model frame size motor model Speed(r/min) Torque(N*m)
220VAC 200W EPS-B1-0D20AA-A000 60 60DNMA2-0D20DKAM 3000 0.64
400W EPS-B1-0D40AA-A000 60 60DNMA2-0D40DKAM 3000 1.27
750W EPS-B1-0D75AA-A000 80 80DNMA2-0D75DKAM 3000 2.39
1KW EPS-B1-0001AA-A000 130 130DNMA2-0001DKAM 3000 3.18
1KW EPS-B1-0001AA-A000 130 130DNMA2-0001CKAM 2000 4.77
1KW EPS-B1-0001AA-A000 130 130DNMA2-0001AKAM 1000 9.55
1.2KW EPS-B1-01D5AA-A000 130 130DNMA2-01D2CKAM 2000 5.73
1.2KW EPS-B1-01D5AA-A000 110 110DNA-12CK1AMS 2000 5.73
1.5KW EPS-B1-01D5AA-A000 130 130DNMA2-01D5CKAM 2000 7.2
1.8KW EPS-B1-02D2AA-A000 130 130DNMA2-01D8DKAM 3000 5.73
2.2KW EPS-B1-02D2AA-A000 130 130DNMA2-0002CKAM 2000 9.55
3KW EPS-B1-0003AA-A000 130 130DNMA2-0003CKAM 2000 14.33
3KW EPS-B1-0003AA-A000 180 180DNA-30BK1AMS 1500 19.1
4KW EPS-B1-04D5AA-A000 180 180DNA-40BK1AMS 1500 25.5
4.5KW EPS-B1-04D5AA-A000 180 180DNA-45BK1AMS 1500 28.6
5.5KW EPS-B1-05D5AA-A000 180 180DNA-55BK1AMS 1500 35

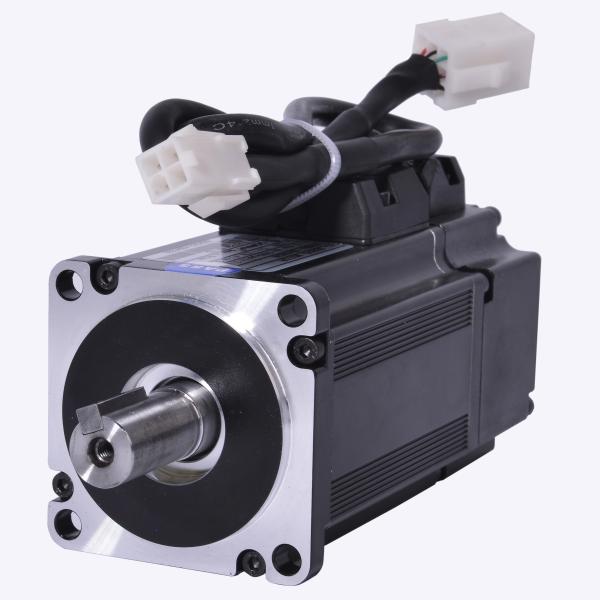

Motor dimensions:

Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm

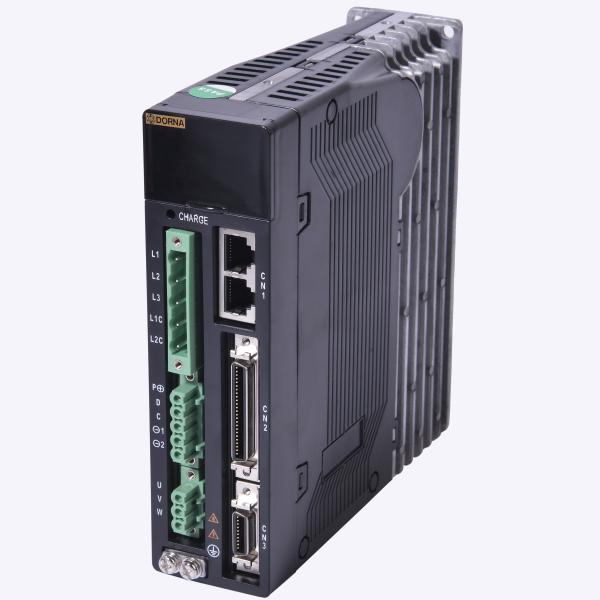

Driver Installation:

Mini 400W 60mm Servo Motor With Encoder Ac 220v 3000RPM 1.27Nm
