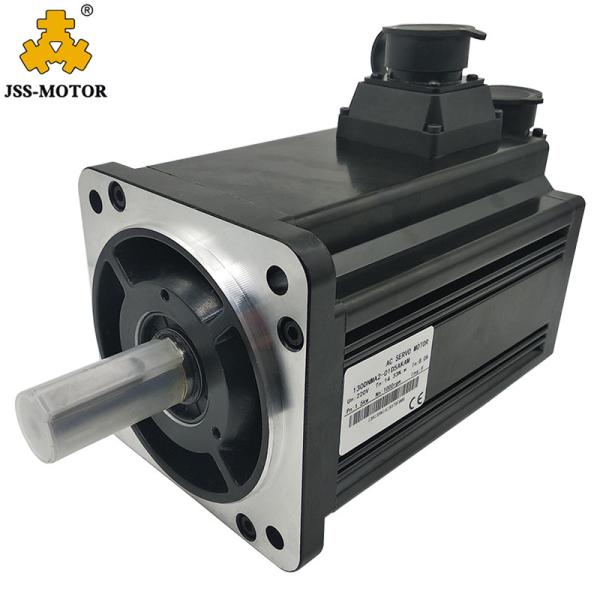

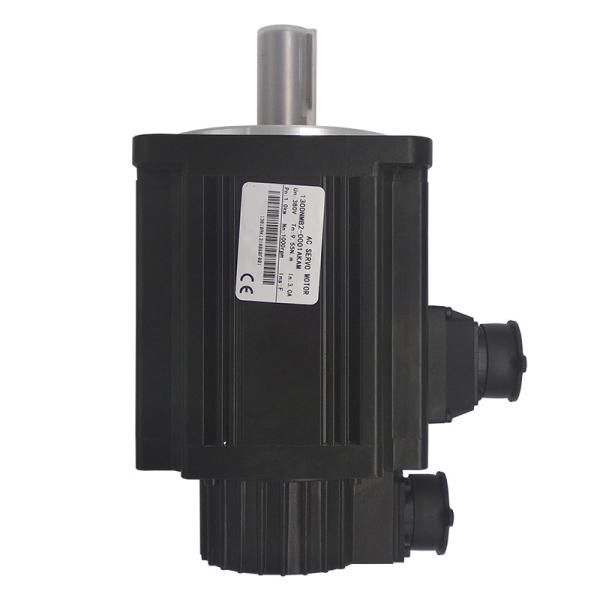

Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
Specifications
Brand Name :
JSS
Model Number :
80DNMA2-0D75DKAM
Certification :
CE,ROHS,ISO
Place of Origin :
China
MOQ :
1
Price :
USD310-US350
Payment Terms :
T/T, Western Union, paypal
Supply Ability :
100pcs/day
Delivery Time :
15days
Packaging Details :
Cartoon box
Name :
220v 750w Ac Servo Motor

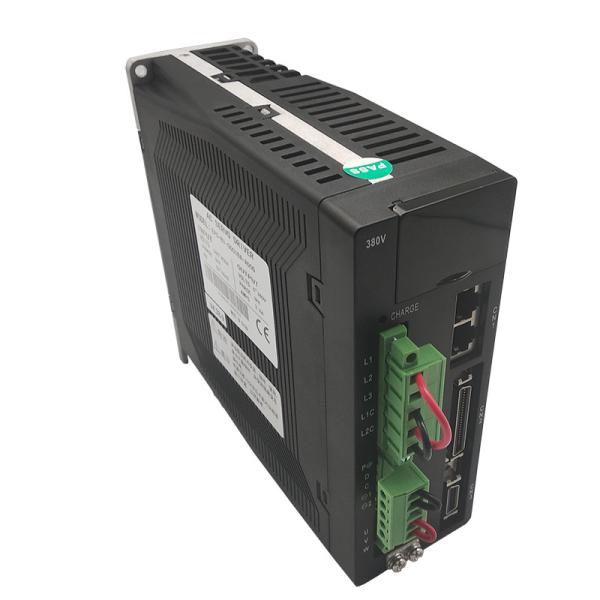

Servo drievr Model :
EPS-B1-0D75AA
Rated power :
750W
Rated speed :
3000RPM
Max speed :
5000RPM
Feedback device :
5000-Line
Flange :
80*80mm
Condition :
100% Original
weight :
8kg
Application :
General Machinery
Description
220v 750w Ac Servo Motor High Performance And Rapidity Servo Drive System
Product Description

Main features

1. Faster

  • Shortened positioning time
  • Quick instruction tracking
  • Response frequency up to 1KHz bandwidth
  • Built-in RS-485 communication. EtherCAT under development.

2. More Reliable

  • 3 times overload
  • Grade 2 Motch Filter
  • Regenerative functions
  • Built-in dynamic brakes(optional)

3. More Accurate

  • High resolution encoders up to 20bit (1,048,576 ppr)
  • Load inertia detection
  • Fully closed-loop function

motor and driver models parameter:

B1 series B1 series servo driver motor frame size servo motor motor parameter
speed torque
power model NO. frame model NO. rpm N.m
220VAC 100W EPS-B1-0D10AA-A030 40 40DNMA2-0D10DIAK/M 3000 0.32
200W EPS-B1-0D20AA-A000 60 60DNMA2-0D20DKAM 3000 0.64
400W EPS-B1-0D40AA-A000 60 60DNMA2-0D40DKAM 3000 1.27
750W EPS-B1-0D75AA-A000 80 80DNMA2-0D75DKAM 3000 2.39
Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM

Our products are widely applied in engraving machine, cutting plotter, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment..

Ac Control Servo Motor 750 Watt 80DNMA2-0D75DKAM
